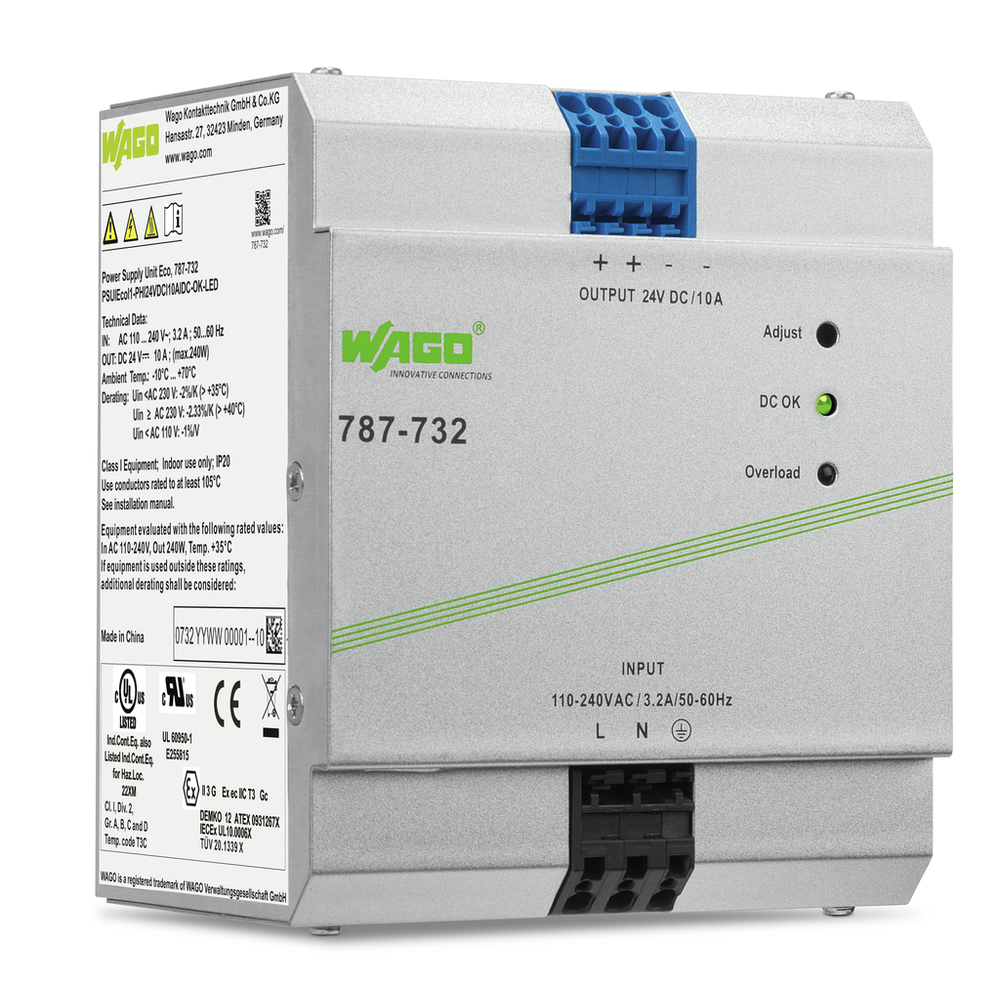

WAGO 787-732
Estimated Delivery between and with free shipping.
Overnight shipping is also available.





Description
WAGO 787-732 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Circuit Protection
- Backup fusing (recommended)
- Circuit breaker: 10 A, 16 A; Tripping characteristic: B or C
- Backup fusing (required)
- An external DC fuse is required for the DC input voltage.
- Internal fuse
- F 5 A / 250 VAC
Commercial Data
- Country of origin
- CN
- Customs tariff number
- 85044083900
- GTIN
- 4045454908140
- Packaging type
- Box
Connection Data
- Connection technology
- CAGE CLAMP®
- Connection type 1
- Input/output
- Fine-stranded conductor
- 0.08 … 4 mm² / 28 … 12 AWG
- Note (conductor cross-section)
- 12 AWG: THHN, THWN
- Solid conductor
- 0.08 … 4 mm² / 28 … 12 AWG
- Strip length
- 8 … 9 mm / 0.31 … 0.35 inches
- WAGO connector
- WAGO 745 Series
Efficiency/Power Losses
- Efficiency (typ.)
- 86 % (230 VAC)
- Power loss (max.) Pl (max.)
- 53 W (110 VAC / 24 VDC; 11 A)
- Power loss Pl
- ≤ 37.5 W (230 VAC; nominal load)
Environmental Requirements
- Ambient temperature (operation)
- -10 … +70 °C
- Ambient temperature (storage)
- -25 … +85 °C
- Derating
- -2.33 %/K (> 40 °C; 230 VAC)
- Relative humidity
- ≤ 95% (no condensation permissible)
Input
- Discharge current
- ≤ 3.5 mA
- Input current Ii
- ≤ 1.5 A (230 VAC); ≤ 3 A (115 VAC)
- Input voltage range
- 1 x AC 90 … 264 V; DC 90 … 373 V
- Inrush current
- ≤ 30 A
- Mains failure hold-up time
- ≥ 20 ms (230 VAC)
- Nominal input voltage Ui nom
- 1 x AC 100 … 240 V
- Nominal mains frequency range
- 47 … 63 Hz; 0 Hz
- Phases
- 1
- Power factor
- ≥ 0.94 (230 VAC); ≥ 0.98 (115 VAC)
- Power factor correction (PFC)
- Active
Material Data
- Fire load
- 10.100 MJ
- Weight
- 1200.000 g
Mechanical Data
- Mounting type
- DIN-35 rail
Output
- Default setting
- DC 24 V
- Deviation
- ≤ 1 %
- Nominal output current Io nom
- 10 A (24 VDC)
- Nominal output power
- 240 W
- Nominal output voltage Uo nom
- DC 24 V (SELV)
- Output voltage range
- DC 22 … 28 V (adjustable)
- Overload behavior
- Constant power (in overload range: 1.15 … 1.4 x Io nom); Shutdown and automatic restart in the event of a short circuit
- Residual ripple
- ≤ 100 mV (peak-to-peak)
Physical Data
- Depth from upper-edge of DIN-rail
- 136 mm / 5.354 inches
- Height
- 92 mm / 3.622 inches
- Width
- 110 mm / 4.331 inches
Safety And Protection
- Isolation voltage (pri.-PE)
- DC 2.2 kV
- Isolation voltage (pri.-sec.)
- DC 4.242 kV
- Isolation voltage (sec.-PE)
- DC 0.7 kV
- MTBF
- 480,000 h (per IEC 61709)
- Open-circuit-proof
- Yes
- Overvoltage category
- II
- Parallel operation
- Yes
- Pollution degree
- 2
- Protection class
- I
- Protection type
- IP20; per EN 60529
- Resistance to reverse feed
- ≤ DC 28 V
- Series operation
- Yes
- Short-circuit-protected
- Yes
- Transient suppression (primary)
- Varistor
Signaling And Communication
- Operation status indicator
- Green LED (24 VDC OK) || Red LED (overload)
- Signaling
- 1 x LED DC OK (green) || 1 x Overload LED (red)
Specifications
- Product Group Code
- 0006
Standards And Specifications
- Conformity marking
- CE
- Standards/specifications
- EN 62368-1 || EN 61204-3 || CURus 60950-1 || CULus 508 || ANSI/ISA 12.12.01 (Class I Div. 2) || ATEX || IEC Ex || SEMI F47
Williams Automation sells WAGO parts at huge savings. Search to find the part you need today. If you can't find what you are looking for please Request A Quote from us and we will provide a timely response. You can also call us at 803-761-7027. We look forward to working with you to assist in the best way we can for your industrial needs.
