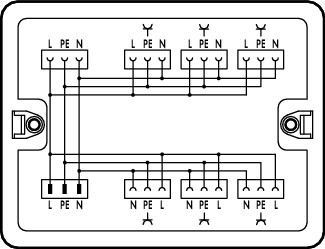

WAGO 899-681/104-000
Description
WAGO 899-681/104-000 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85366990990
- GTIN
- 4055143308298
- Packaging type
- Box
Environmental Requirements
- Continuous operating temperature
- -35 … +85 °C
- Note on continuous operating temperature
- Insulating parts for temperatures ≤ 105 °C
- Processing temperature
- -5 … +40 °C
General
- Note on contact resistance
- Approx. 1 mΩ contact resistance approx. 0.25 mΩ contact transition (plug/socket)
Material Data
- Color
- White
- Contact material
- Copper or copper alloy; surface-treated
- Contact plating
- Tin
- Fire load
- 77.173 MJ
- Flammability class per UL94
- V0
- Insulation material
- Polyamide (PA66)
- Note (material data)
- Weight
- 440.000 g
Mechanical Data
- Application
- General mains applications
- Coding
- A
- Internal wiring
- 4 mm²
- Mounting type
- Wall, screw mount || Installation on mounting plate
- Protection type
- IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)
Physical Data
- Depth
- 145 mm / 5.709 inches
- Height
- 30 mm / 1.181 inches
- Width
- 190 mm / 7.48 inches
Plug-In Connection
- Locking of plug-in connection
- Locking lever
- Mismating protection
- Yes
- Note on mismating protection
- All WINSTA® components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole
Ratings Per Iec/En
- Legend (ratings)
- (III / 3) ≙ Overvoltage category III / Pollution degree 3
- Nominal voltage (III/3)
- 250 V
- Rated current
- 25 A
- Rated impulse voltage (III/3)
- 4 kV
- Ratings per
- IEC/EN 60664-1
Specifications
- Product Group Code
- 0020
