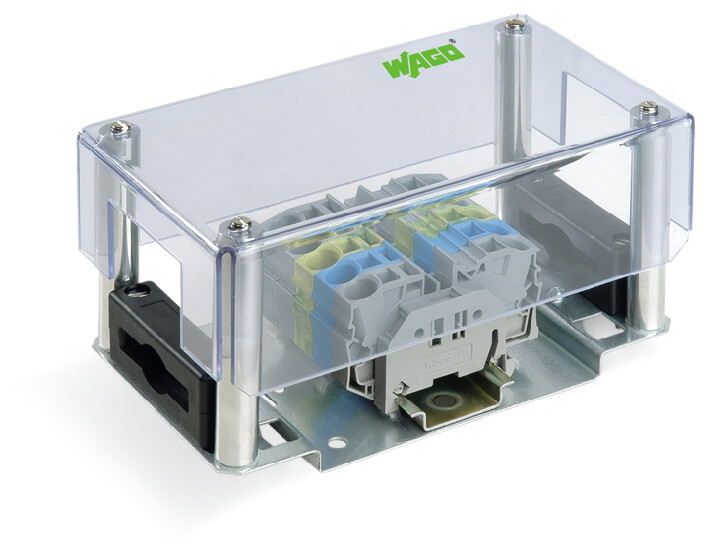

WAGO 895-1051

Commercial Data

• Country of origin
  • DE
• Customs tariff number
  • 85366990990
• GTIN
  • 4045454006259
• Packaging type
  • Box

Connection 1

• Actuation type
  • Operating tool
• Connection technology
  • Push-in CAGE CLAMP®
• Pole number
  • 5

Environmental Requirements

• Continuous operating temperature
  • -35 … +85 °C
• Note on continuous operating temperature
  • Cable for temperatures ≤ 70 °C (including halogen-free)Flat cable for temperatures –15 °C to ≤ 70 °C (including halogen-free)Insulating parts for temperatures ≤ 105 °C
• Processing temperature
  • -5 … +40 °C

General

• Note on contact resistance
  • Approx. 1 mΩ of contact resistance
approx. 0.25 mΩ contact transition plug/socket

Material Data

• Color
  • Transparent
• Contact material
  • Copper or copper alloy; surface-treated
• Contact plating
  • Tin
• Fire load
  • 1.960 MJ
• Flammability class per UL94
  • V0
• Insulation material
  • Polyamide (PA66)
• Note (material data)
  • Information on material specifications can be found here
• Weight
  • 450.000 g

Mechanical Data

• Protection type
  • IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)
• Retention force of a plug-in connection
  • When locked: > 80 N
• Suitable
  • For flat cable 5 x 10 mm²
• Variable coding
  • No

Physical Data

• Depth
  • 160 mm / 6.299 inches
• Height
  • 65 mm / 2.559 inches
• Width
  • 90 mm / 3.543 inches

Plug-In Connection

• Locking of plug-in connection
  • Locking lever
• Mismating protection
  • Yes
• Note on mismating protection
  • All WINSTA® components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180
c.) plugging while laterally staggeredd.) plugging one pole

Ratings Per Iec/En

• Legend (ratings)
  • (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Nominal voltage (III/3)
  • 750 V
• Rated current
  • 57 A
• Rated impulse voltage (III/3)
  • 8 kV
• Ratings per
  • IEC/EN 60664-1

Specifications

• Product Group Code
  • 0020
