WAGO 899-681/100-000

Commercial Data

• Country of origin
  • DE
• Customs tariff number
  • 85366990990
• GTIN
  • 4055143306539
• Packaging type
  • Box

Environmental Requirements

• Continuous operating temperature
  • -35 … +85 °C
• Note on continuous operating temperature
  • Insulating parts for temperatures ≤ 105 °C
• Processing temperature
  • -5 … +40 °C

General

• Note on contact resistance
  • Approx. 1 mΩ contact resistance
approx. 0.25 mΩ contact transition (plug/socket)

Material Data

• Color
  • White
• Contact material
  • Copper or copper alloy; surface-treated
• Contact plating
  • Tin
• Fire load
  • 83.199 MJ
• Flammability class per UL94
  • V0
• Insulation material
  • Polyamide (PA66)
• Note (material data)
  • Information on material specifications can be found here
• Weight
  • 470.000 g

Mechanical Data

• Application
  • General mains applications
• Coding
  • A

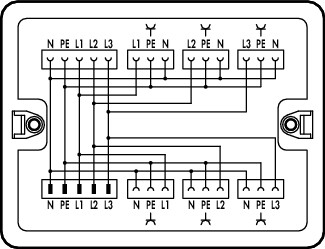

• Internal wiring
  • 4 mm²
• Mounting type
  • Wall, screw mount || Installation on mounting plate
• Protection type
  • IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)

Physical Data

• Depth
  • 145 mm / 5.709 inches
• Height
  • 30 mm / 1.181 inches
• Width
  • 190 mm / 7.48 inches

Plug-In Connection

• Locking of plug-in connection
  • Locking lever
• Mismating protection
  • Yes
• Note on mismating protection
  • All WINSTA® components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180
c.) plugging while laterally staggeredd.) plugging one pole

Ratings Per Iec/En

• Legend (ratings)
  • (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Nominal voltage (III/3)
  • 400 V
• Rated current
  • 25 A
• Rated impulse voltage (III/3)
  • 6 kV
• Ratings per
  • IEC/EN 60664-1

Ratings Per Iec/En 2

• Rated surge voltage (III/3) 2
  • 4 kV
• Rated voltage (III/3) 2
  • 250 V

Specifications

• Product Group Code
  • 0020
