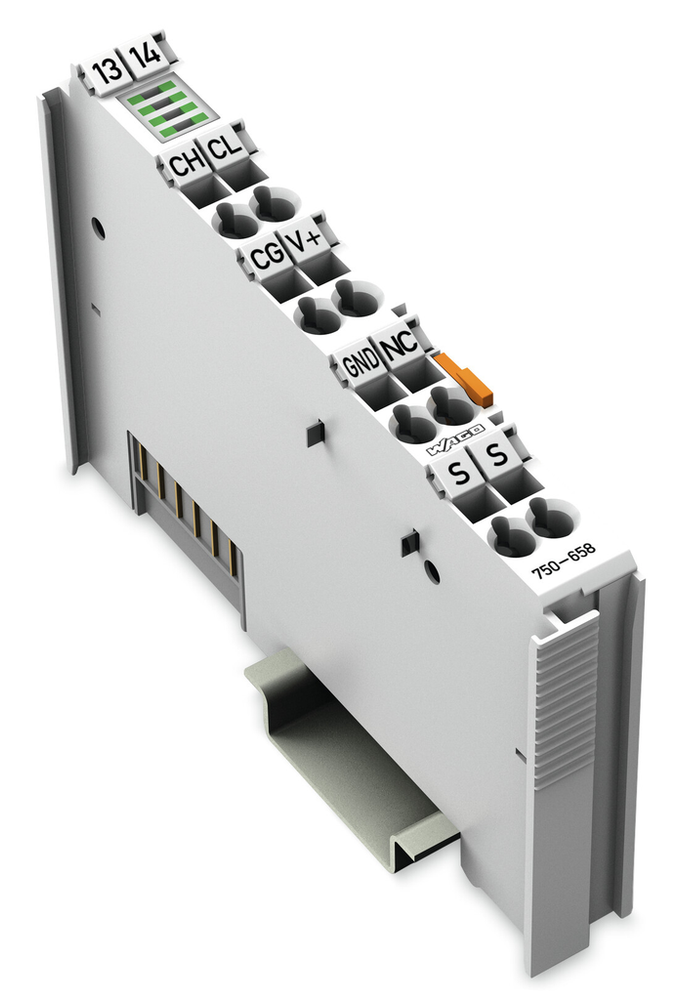

WAGO 750-658
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
WAGO 750-658 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85389099990
- GTIN
- 4050821642084
- Packaging type
- Box
Connection Data
- Connection technology: inputs/outputs
- 8 x CAGE CLAMP®
- Connection type 1
- Inputs/outputs
- Fine-stranded conductor
- 0.08 … 2.5 mm² / 28 … 14 AWG
- Solid conductor
- 0.08 … 2.5 mm² / 28 … 14 AWG
- Strip length
- 8 … 9 mm / 0.31 … 0.35 inches
Environmental Requirements
- Ambient temperature (operation)
- 0 … +55 °C
- Ambient temperature (storage)
- -25 … +85 °C
- EMC emission of interference
- Per EN 61000-6-3, EN 61131-2, marine applications
- EMC immunity to interference
- Per EN 61000-6-2, EN 61131-2, marine applications
- Exposure to pollutants
- Per IEC 60068-2-42 and IEC 60068-2-43
- Mounting position
- Horizontal (standing/lying); vertical
- Operating altitude
- 0 … 2000 m / 0 … 6562 ft
- Permissible H2S contaminant concentration at a relative humidity 75 %
- 10 ppm
- Permissible SO2 contaminant concentration at a relative humidity 75 %
- 25 ppm
- Pollution degree
- 2 per IEC 61131-2
- Protection type
- IP20
- Relative humidity (without condensation)
- 95 %
- Shock resistance
- 15g per IEC 60068-2-27
- Vibration resistance
- 4g per IEC 60068-2-6
Material Data
- Color
- Light gray
- Conformity marking
- CE
- Fire load
- 0.967 MJ
- Housing material
- Polycarbonate; polyamide 6.6
- Weight
- 51.000 g
Mechanical Data
- Mounting type
- DIN-35 rail
Physical Data
- Depth
- 67.8 mm / 2.669 inches
- Depth from upper-edge of DIN-rail
- 60.6 mm / 2.386 inches
- Height
- 100 mm / 3.937 inches
- Width
- 12 mm / 0.472 inches
Specifications
- Product Group Code
- 0015
Technical Data
- Current carrying capacity (power jumper contacts)
- 10 A
- Current consumption (5 V system supply)
- 50 mA
- Current consumption, field supply (module with no external load)
- 12 mA
- Data width
- Configurable to 8, 12, 16, 20, 24, 32, 40, 48 bytes; incl. control/status byte
- Device-specific
- Operating modes: Sniffer mode, transparent mode, mapped mode
- Indicators
- LED (A, B, F) red/green: CAN-Status, CAN-Rx, CAN-Tx; LED (E) green: Internal data bus RUN; LED (H) red: Int. error
- Isolation (peak value)
- UM = 500 V system/supply
- Number of incoming power jumper contacts
- 2
- Number of inputs
- 1 (CAN interface)
- Number of outgoing power jumper contacts
- 2
- Supply voltage (field)
- 24 VDC; via power jumper contacts (power supply via blade contact; transmission via spring contact)
- Supply voltage (system)
- 5 VDC; via data contacts
- Transmission modes
- 10 kbit/s; 20 kbit/s; 50 kbit/s; 125 kbit/s; 250 kbit/s; 500 kbit/s; 800 kbit/s (auto-baudrate); Data formats: per 2.0 A standard (11-bit ID); per 2.0 B extended (29-bit ID)
