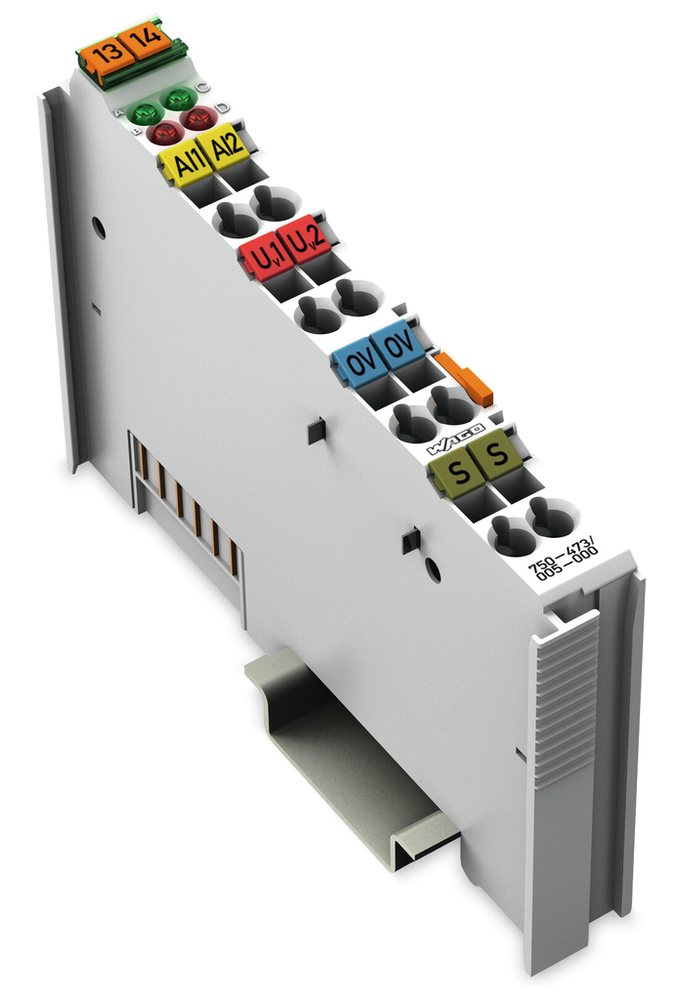

WAGO 750-473/005-000

Commercial Data

• Country of origin
  • DE
• Customs tariff number
  • 85389099990
• GTIN
  • 4050821867289
• Packaging type
  • Box

Connection Data

• Connection technology: inputs/outputs
  • 8 x CAGE CLAMP®
• Connection type 1
  • Inputs/outputs
• Fine-stranded conductor
  • 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor
  • 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length
  • 8 … 9 mm / 0.31 … 0.35 inches

Environmental Requirements

• Ambient temperature (operation)
  • 0 … +55 °C
• Ambient temperature (storage)
  • -25 … +85 °C
• EMC emission of interference
  • Per EN 61000-6-3, marine applications
• EMC immunity to interference
  • Per EN 61000-6-2, marine applications
• Exposure to pollutants
  • Per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position
  • Horizontal (standing/lying); vertical
• Operating altitude
  • 0 … 2000 m / 0 … 6562 ft
• Permissible H2S contaminant concentration at a relative humidity 75 %
  • 10 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %
  • 25 ppm
• Pollution degree
  • 2 per IEC 61131-2
• Protection type
  • IP20
• Relative humidity (without condensation)
  • 95 %
• Shock resistance
  • 15g per IEC 60068-2-27
• Vibration resistance
  • 4g per IEC 60068-2-6

Material Data

• Color
  • Light gray
• Conformity marking
  • CE
• Fire load
  • 0.967 MJ
• Housing material
  • Polycarbonate; polyamide 6.6
• Weight
  • 52.270 g

Mechanical Data

• Mounting type
  • DIN-35 rail

Physical Data

• Depth
  • 69.8 mm / 2.748 inches
• Depth from upper-edge of DIN-rail
  • 62.6 mm / 2.465 inches
• Height
  • 100 mm / 3.937 inches
• Width
  • 12 mm / 0.472 inches

Specifications

• Product Group Code
  • 0015

Technical Data

• Conversion time (typ.)
  • 80 ms
• Current consumption (5 V system supply)
  • 100 mA
• Data width
  • 2 x 16-bit data; 2 x 8-bit control/status (optional)
• Indicators
  • LED (A, C) green: Function AI 1, AI 2; LED (B, D) red: Error AI 1, AI 2
• Input filter frequency (analog)
  • 60 Hz
• Input resistance (max.)
  • 160 Ω
• Input voltage (note)
  • Non-linear, overload protected U = 1.2 V + 100 Ω x I meas
• Isolation
  • 500 V system/field
• Measurement error, deviation (max.) from the upper-range value
  • 0.1 %
• Measurement error (reference temperature)
  • 25 °C
• Noise rejection above sampling frequency
  • -40 dB
• Noise rejection at sampling frequency
  • -100 dB
• Number of analog inputs
  • 2
• Number of incoming power jumper contacts
  • 2
• Number of outgoing power jumper contacts
  • 2
• Resolution [bit]
  • 12 bits
• Sensor connection
  • 2 x (2-wire, 3-wire)
• Signal characteristics
  • Single-ended
• Signal type
  • Current
• Signal type (current)
  • 4 … 20 mADC
• Supply voltage (field)
  • 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)
• Supply voltage (system)
  • 5 VDC; via data contacts
• Temperature error (max.) of the upper-range value
  • 0.01 %/K
• Total number of channels (module)
  • 2
