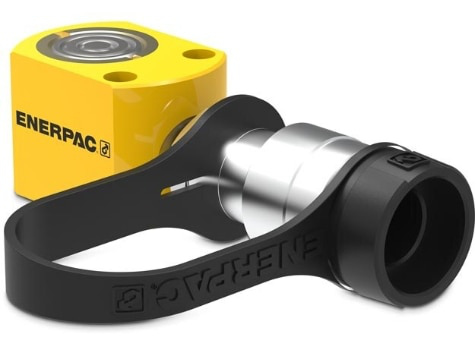

Enerpac RC50
Estimated Delivery between and with free shipping.
Overnight shipping is also available.





Description
Enerpac RC50 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Hydraulic Cylinders
- Base Mounting Hole Bolt Circle
- 1.13 in
- Base Mounting Holes Bolt Circle U
- 1.13 in | 29 mm
- Base Mounting Holes Thread Depth Z
- - in | '- mm
- Base Mounting Holes Thread V
- 5,6 mm | 0.22 in
- Base Mounting Hole Thread
- 0.22 in
- Base To Advance Port
- 0.75 in
- Baseto Advance Port H
- 0.75 in | 19 mm
- Collapsed Height A
- 1.63 in | 41 mm
- Collapsed Height A Ranges
- 0 - 4.99 in | 0 - 127 mm
- Collar Thread Length X
- - in | '- mm
- Collar Thread W
- - in | '- mm
- Cylinder Bore Diameter
- 1.13 in
- Cylinder Bore Diameter E
- 1.13 in | 28,6 mm
- Cylinder Capacity Tons Maximum
- 4.9
- Cylinder Class
- 5 Imperial Tons
- Cylinder Effective Area
- 0.99 in
- Cylinder Effective Area Advance
- 0.99 in² | 6,4 cm²
- Cylinder Material
- Steel
- Dimension D1
- 41 mm
- Dimension L
- 20 mm
- Dimension M
- 25 mm
- Extended Height
- 2.25 in
- Extended Height B
- 2.25 in | 57 mm
- Features
- Mounting Options
- Maximum Cylinder Capacity Advance
- 4.9 Imperial Tons | 45 kN
- Maximum Operating Pressure Ranges psi
- 10000
- Oil Capacity
- 0.62 in³
- Oil Capacity Advance
- 0.62 in³ | 10 cm³
- Outside Diameter
- 2.31 in
- Outside Diameter D
- 2.31 in | 58 mm
- Plunger Diameter
- 1 in
- Plunger Diameter F
- 1 in | 25,4 mm
- Plunger internal Threadin O
- '- in
- Plunger internal Thread O
- '- in
- Plunger Thread Length P
- '- mm
- Plunger Type
- Solid
- Return Type
- Single-Acting, Spring Return
- Saddle Diameter J
- '- mm
- Saddle Protrusion From Plunger K
- '- mm
- Stroke Ranges
- 0 - 0.99 in | 0 - 23 mm
- Surface Treatment
- Paint
Specifications
- Country of Origin
- China
- News Feed Product Group
- Cylinders and Jacks
- Product Line
- Industrial Tools
- Shipping Weight
- 2.25 lbs
- Sub Types
- General Purpose Cylinder
- Type
- Hydraulic Cylinders
- Upsell item
- RC51,RR506
- Weight
- 2.2 lbs | 1,0 kgs
Williams Automation sells Enerpac parts at huge savings. Search to find the part you need today. If you can't find what you are looking for please Request A Quote from us and we will provide a timely response. You can also call us at 803-761-7027. We look forward to working with you to assist in the best way we can for your industrial needs.
