Enerpac RCH202
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

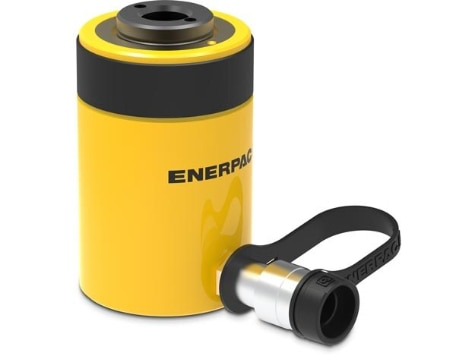

RCH202, 23.6 ton Capacity, 2.00 in Stroke, Single-Acting, Hollow Plunger Hydraulic Cylinder
Enerpac RCH202 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Hydraulic Cylinders
- Base Mounting Holes Bolt Circle U
- 3.25 in | 82,6 mm
- Base Mounting Holes Thread Depth Z
- 0.37 in | 9,4 mm
- Base Mounting Holes Thread V
- 3/8"-16 unc | 3/8"-16 unc in
- Baseto Advance Port H
- 0.75 in | 19 mm
- Center Hole Diameter Y
- 1.06 in | 26,9 mm
- Collapsed Height A
- 6.38 in | 162 mm
- Collapsed Height A Ranges
- 5.0 - 9.99 in | 128 - 254 mm
- Collar Thread Length X
- 1.5 in | 38 mm
- Collar Thread W
- 3 7/8" - 12 un in | 2 7/8" - 12 mm
- Cylinder Bore Diameter E
- 2.88 in | 73,1 mm
- Cylinder Class
- 20 Imperial Tons
- Cylinder Effective Area Advance
- 4.72 in² | 30,7 cm²
- Cylinder Material
- Steel
- Extended Height B
- 8.38 in | 211 mm
- Maximum Cylinder Capacity Advance
- 23.6 Imperial Tons | 215 kN
- Maximum Operating Pressure Ranges psi
- 10000
- Oil Capacity Advance
- 9.46 in³ | 150 cm³
- Outside Diameter D
- 3.88 in | 98 mm
- Plunger Diameter F
- 2.13 in | 54,1 mm
- Plunger internal Threadin O
- 1 9/16" - 16 un in
- Plunger internal Thread O
- 1 9/16" - 16 un in
- Plunger Thread Length P
- 0.75 in | 19 mm
- Plunger Type
- Hollow
- Return Type
- Single-Acting, Spring Return
- Saddle Diameter J
- 2.13 in | 54 mm
- Saddle Diameter J1
- 54 mm
- Saddle Protrusionfrom Plunger K
- 0.27 in
- Saddle Protrusion From Plunger K
- 9,7 mm
- Saddle Protrusionfrom Plunger K1
- 9,7 mm
- Stroke Ranges
- 2.0 - 2.99 in | 48 - 94 mm
- Surface Treatment
- Paint
Specifications
- Bundle Product Ids
- CR400
- Country of Origin
- China
- News Feed Product Group
- Cylinders and Jacks
- Product Line
- Industrial Tools
- Shipping Weight
- 16.9 lbs
- Sub Types
- Hollow Plunger Cylinder
- Type
- Hydraulic Cylinders
- Upsell item
- RACH202
- Weight
- 17 lbs | 7,7 kgs
