Description

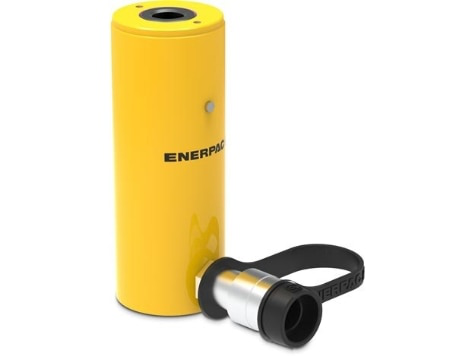

RCH123, 13.8 ton Capacity, 3.00 in Stroke, Single-Acting, Hollow Plunger Hydraulic Cylinder
Enerpac RCH123 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Hydraulic Cylinders
- Base Mounting Holes Bolt Circle U
- 2 in | 50,8 mm
- Base Mounting Holes Thread Depth Z
- 0.5 in | 12,7 mm
- Base Mounting Holes Thread V
- 5/16"-18 unc | 5/16"-18 unc in
- Baseto Advance Port H
- 0.98 in | 25 mm
- Center Hole Diameter Y
- 0.77 in | 19,5 mm
- Collapsed Height A
- 7.25 in | 184 mm
- Collapsed Height A Ranges
- 5.0 - 9.99 in | 128 - 254 mm
- Collar Thread Length X
- 1.19 in | 30 mm
- Collar Thread W
- 2 3/4" - 16 in | 2 3/4" - 16 mm
- Cylinder Bore Diameter E
- 2.13 in | 54,1 mm
- Cylinder Class
- 12 Imperial Tons
- Cylinder Effective Area Advance
- 2.76 in² | 17,9 cm²
- Cylinder Material
- Steel
- Extended Height B
- 10.25 in | 260 mm
- Maximum Cylinder Capacity Advance
- 13.8 Imperial Tons | 125 kN
- Maximum Operating Pressure Ranges psi
- 10000
- Oil Capacity Advance
- 8.29 in³ | 136 cm³
- Outside Diameter D
- 2.75 in | 69 mm
- Plunger Diameter F
- 1.38 in | 35,1 mm
- Plunger Type
- Hollow
- Return Type
- Single-Acting, Spring Return
- Stroke Ranges
- 3.0 - 4.49 in | 48 - 94 mm
- Surface Treatment
- Paint
Specifications
- Bundle Product Ids
- CR400
- Country of Origin
- China
- News Feed Product Group
- Cylinders and Jacks
- Product Line
- Industrial Tools
- Shipping Weight
- 9.65 lbs
- Sub Types
- Hollow Plunger Cylinder
- Type
- Hydraulic Cylinders
- Upsell item
- RACH204
- Weight
- 9.8 lbs | 4,4 kgs
