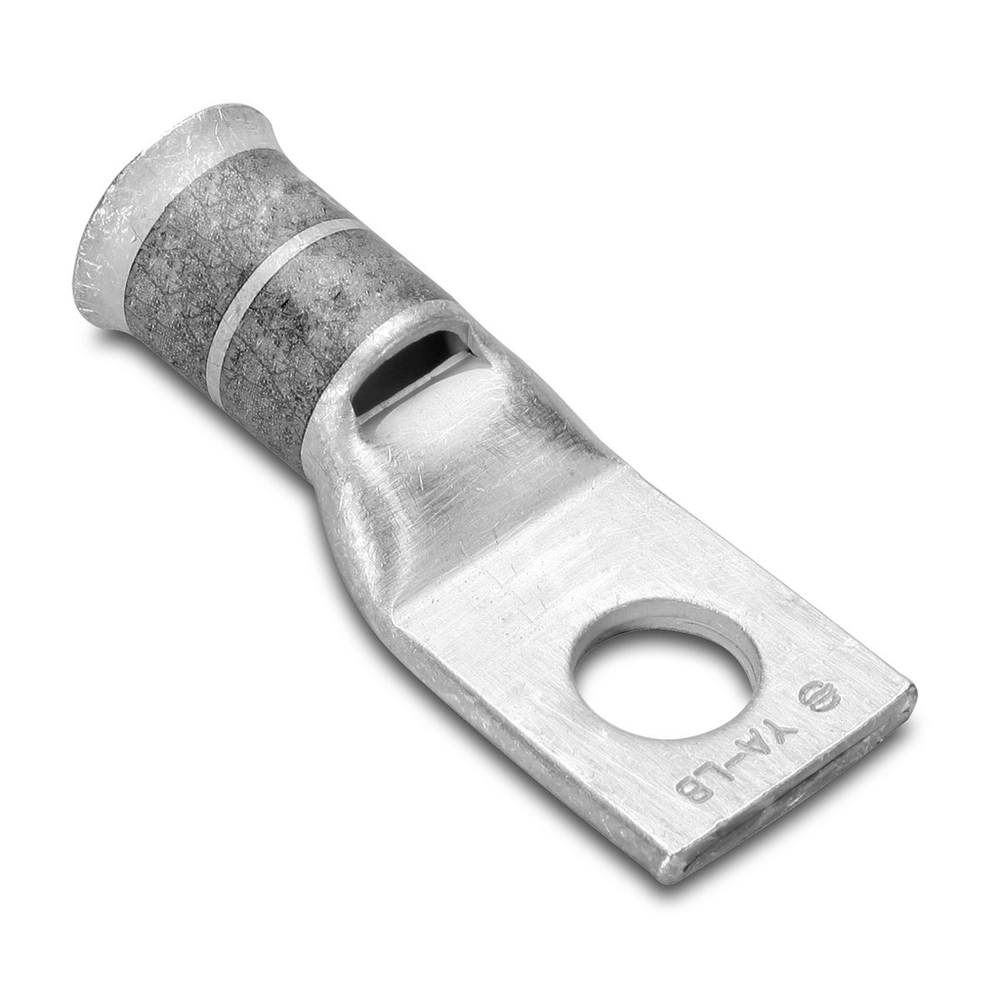

Burndy YA44LB
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Burndy YA44LB is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - cULus
- No
- Certification - ETL
- No
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - Industry Standards Met
- UL468A-468B
- Standards - RoHS Compliance Status
- CM
- UL Listed
- Yes
Conductor Related
- Conductor - Copper DLO Size
- 777.7 (1925/#24)
- Conductor - Copper Flex G Size
- 750
- Conductor - Copper Flex H Size
- 750
- Conductor - Copper Flex I Size
- 650
- Conductor - Copper Flex K Size
- 600
- Conductor - Copper Solid Size
- 1000 kcmil
- Conductor - Copper Str Size
- 1000 kcmil
- Conductor - Material
- Copper
Dimensions
- Dimension - B Length inch
- 1.85 in
- Dimension - Bolt Hole Size inch
- 5/8 in
- Dimension - Bolt Size fraction
- 5/8
- Dimension - Hole Size inch
- 0.69 in
- Dimension - Hole Size mm
- 17.5 mm
- Dimension - Length Overall inch
- 4.82 in
- Dimension - L Length Overall mm
- 122.4 mm
- Dimension - N inch
- 0.66 in
- Dimension - Outside Diameter inch
- 1.49 in
- Dimension - Pad Width inch
- 2.18 in
- Dimension - Strip Length inch
- 1-15/16
- Dimension - Stud Size inch
- 5/8 in
- Dimension - Thread Size
- 5/8 in
- Dimension - Z inch
- 1.34 in
Electrical Ratings
- Rating - KVA
- 35 kV
- Rating - Minimum Voltage
- 600
- Voltage - Maximum
- 35000
General
- Application
- For Flex Conductor
- Color Code
- White
- Connector Type
- Terminal
- Die Index
- 1032
- Feature - Barrel Type
- Standard
- Material
- Copper
- Physical Attribute - Number of Holes
- 1
- Physical Attribute - Tongue Type
- Straight
- Plated
- Y
- Plating Type
- Tin -Plated
- Sub Brand
- HYLUG
- Trade Name
- HYLUG™
- Type
- Standard Barrel, Tin Plated
- UPC
- 781810523261
- UPC 12 Digit
- 7818105232611
Logistics
- Minimum Pack Quantity
- 5
Williams Automation sells Burndy parts at huge savings. Search to find the part you need today. If you can't find what you are looking for please Request A Quote from us and we will provide a timely response. You can also call us at 803-761-7027. We look forward to working with you to assist in the best way we can for your industrial needs.
