Burndy YA8CL1BOX
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

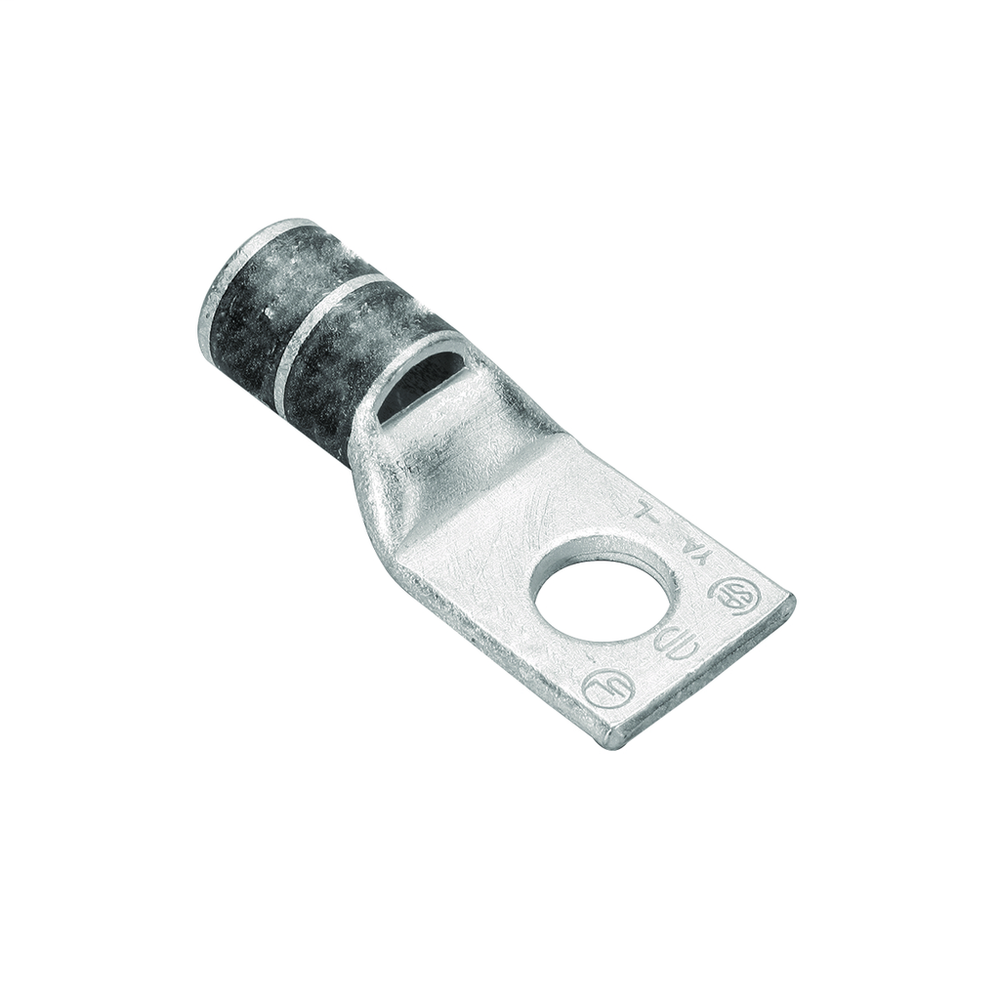

Copper Compression Lug, 1 Hole w/ Inspection Window, 8 AWG, 1/4" Stud, Short Barrel, Tin Plated.Non-insulated; Tin Plated YA8CL1BOX
Burndy YA8CL1BOX is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - cULus
- No
- Certification - ETL
- No
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
- UL Listed
- Yes
Conductor Related
- Conductor - Copper Solid Size
- 6 AWG
- Conductor - Copper Solid Size Range
- 6 AWG
- Conductor - Copper Str Navy Size
- 23 (7) Navy
- Conductor - Copper Str Navy Size Range
- 23 (7) Navy
- Conductor - Copper Str Size
- 8 AWG
- Conductor - Copper Str Size Range
- 8 AWG
- Conductor - Material
- Copper
Dimensions
- Dimension - B Length inch
- 0.44 in
- Dimension - Bolt Hole Size inch
- 0.27 in
- Dimension - D inch
- 0.58 in
- Dimension - Hole Size inch
- 0.27 in
- Dimension - Hole Size mm
- 7 mm
- Dimension - Length Overall inch
- 1.26 in
- Dimension - L Length Overall mm
- 32 mm
- Dimension - N inch
- 0.25 in
- Dimension - Outside Diameter inch
- 0.27 in
- Dimension - Pad Width inch
- 0.44 in
- Dimension - Strip Length inch
- 7/16
- Dimension - Stud Size fraction
- 1/4
- Dimension - Stud Size inch
- 1/4
- Dimension - Z inch
- 0.33 in
- Physical Attribute - Tongue Angle
- Straight
Electrical Ratings
- Rating - KVA
- 35 kV
- Rating - Minimum Voltage
- 600
- Voltage - Maximum
- 35000
General
- Application
- For Code Conductor
- Color Code
- Red
- Connector Type
- Terminal
- Die Index
- 49
- Feature - Barrel Style
- Chamfered
- Feature - Barrel Type
- Standard
- Material
- Copper
- Physical Attribute - Number of Holes
- 1
- Physical Attribute - Tongue Type
- Standard
- Plated
- Y
- Plating Type
- Tin - Electro Plated
- Sub Brand
- HYLUG
- Temperature Rating
- 194
- Trade Name
- HYLUG™
- Type
- Standard Barrel, Tin Plated
- UPC
- 781810525678
- UPC 12 Digit
- 7818105256788
Logistics
- Minimum Pack Quantity
- 1
