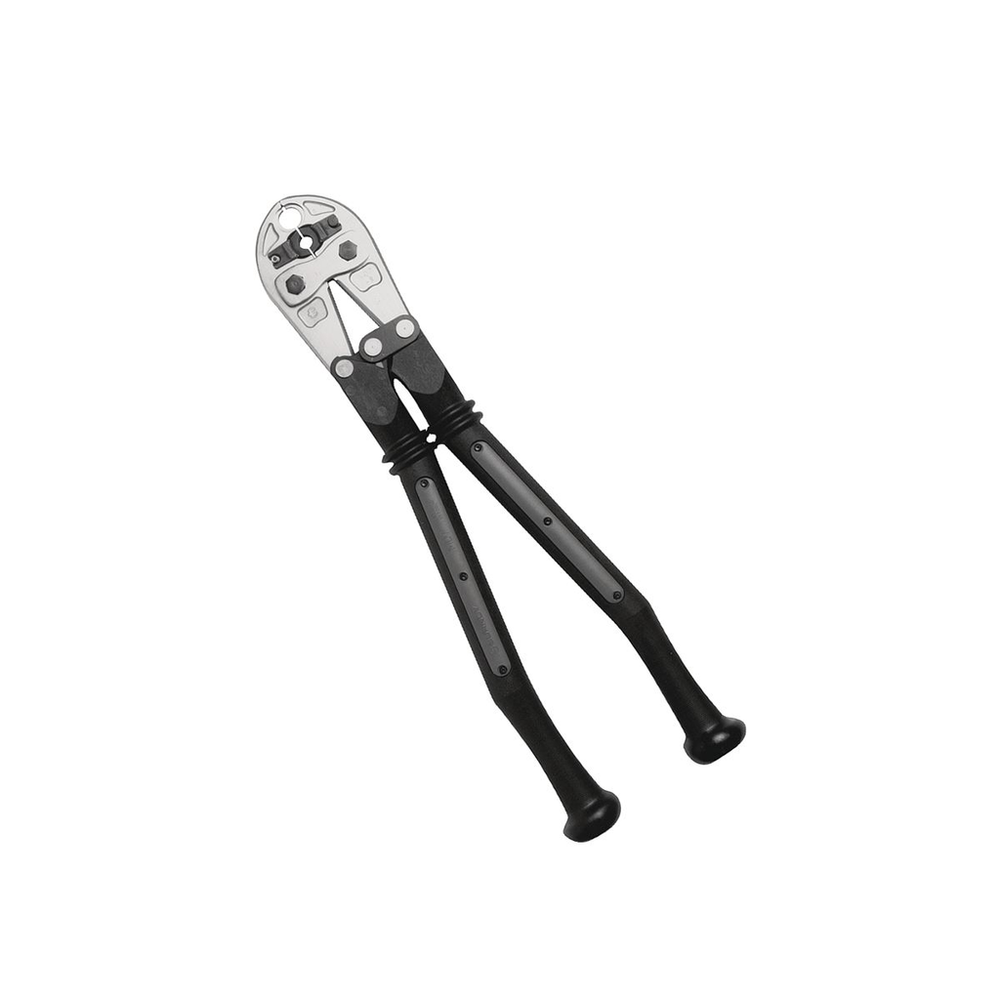

Burndy MD7

Certifications

• EU RoHS Indicator
  • Yes

Specifications

• Application
  • Crimping
• Application - For Use On
  • Copper, Aluminum, ACSR, Steel, Copperweld, Alumoweld, 6201, 5005, Compressed and Compact Conductors
• ARRA Compliant
  • Yes
• Base Unit of Measure
  • EA
• Buy American Compliant
  • Yes
• Carton - SCC-14 Next Lower Level Sub Pack
  • 00781810010914
• Certification Agency
  • Proposition 65
• Class Code
  • B82
• Country of Origin
  • US
• Crimp Force Capacity
  • 4.5 ton
• Crimping Ranges
  • Taps: Copper: #10 sol. to 2/0 str., Aluminum & ACSR: #14 sol. to 4/0 ACSR; Stirrups: #6 to 4/0 ACSR; Overhead Full Tension Deadends, Full Tension Splices and Terminals: #10 str. to 4/0 ACSR; Installs Splices, Taps or Terminations: #8 to 500 kcmil Copper Stranded, #8 to 350 kcmil Copper Flex, #8 to 350 kcmil Aluminum
• Description - Invoice
  • COMPOSITE HANDLE TL W/ B
• Die Type
  • W and X Die
• Dimensions
  • 25.00 in x 4.50 in x 2.00 in
• Each - Number of Sub Packs
  • 1
• Each - Pack Description
  • Each
• Each - Width
  • 2 in
• Freight Class Code
  • 16027000
• Harmonization Code
  • 8205595560
• Height
  • 2.00 in
• Image Actual Or Representative
  • A
• Lead Time
  • 11 wk
• Length
  • 25.00 in
• Lowest Level UOM
  • Each
• MSDS Flag
  • No
• Order Multiple
  • 1 EA
• Overall Length
  • 25.00 in
• Product Type
  • 4.5-Ton
• Special Features
  • Features: Ergonomically Designed, One-Piece, Composite Polymer Handles, Comfort Grip Handles, Time-Proven Steel Jaw Designs, No Tool Adjustment Required, 99,000 Crimp/Cycle Life, Positive Lock, Spring Loaded Die Retainer Buttons, Permanent D3 Die Groove, PTFE Impregnated Steel/Bronze Bushings And Stainless Steel Pins, Electroless Nickel Plated Jaws And Jaw Links, Easier Tool Operation Due To Unique Handle Design, And Anti-Slip Grips, Improves Operation By Preventing Slipping, Proper Crimps Are Assured With Butting Jaws, Provides Reliable And Consistent Crimps Every Time, Lasts Up To 6 Times Longer Than Cheap Imitations, And Will Still Be Working When Others Have Long Since Worn Out, No Lost Dies And One-Hand Die Insertion, Allows Use Of The Complete Line Of Burndy W And X Die Inserts, Increases Life Of Tool By Reducing Tool Wear, 5-Year Limited Warranty, Covered Handles: No, Permanent Dies: Yes, Conductor Type: ACSR, 6201, 5005, Aluminum, Copper, Copperweld, Alumoweld, Steel, Compressed And Compact Conductors, Width: 8 IN At Handle End, 4-1/2 IN At Jaw End, Weight: 7 LB, Dies Used: BG And D3, Cutting Dies Available: Yes, Fully Covered: No, Accepts Dies: Yes
• Standard Package Quantity
  • 1
• Standards - RoHS Compliance Status
  • EX
• Stock Indicator
  • S - Shelf Stock
• Sub Brand
  • HYTOOL
• Sub Class Code
  • B82B82M
• Tool Type
  • Hand Operated Crimper
• Trade Name
  • HYTOOL™
• Warranty
  • 5 year limited warranty
• Weight
  • 7 lb.
• Width
  • 2 in
