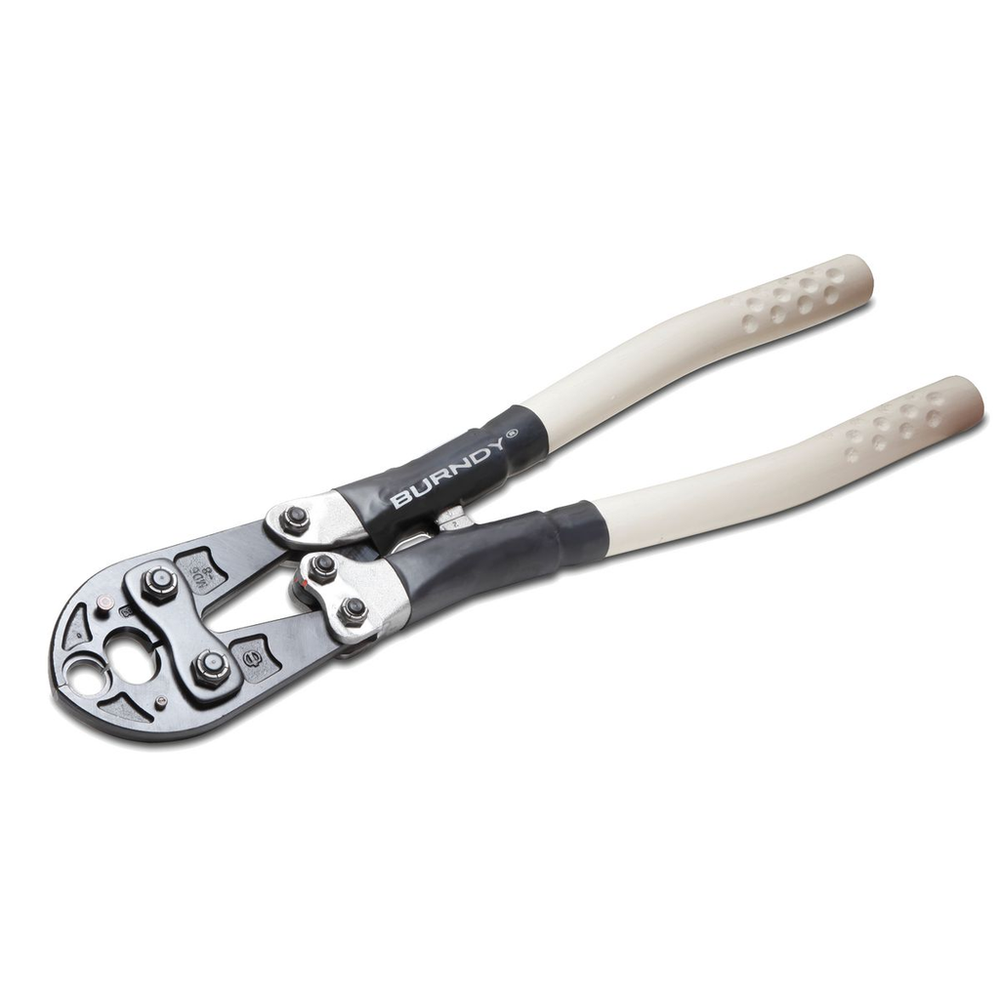

Burndy MD68

Certifications

• EU RoHS Indicator
  • Yes

Specifications

• Application
  • Crimping
• Application - For Use On
  • Copper, Aluminum, ACSR, Steel, Copperweld, Alumoweld, 6201, 5005, Compressed and Compact Conductors
• ARRA Compliant
  • Yes
• Base Unit of Measure
  • EA
• Buy American Compliant
  • Yes
• Carton - SCC-14 Next Lower Level Sub Pack
  • 00781810446553
• Certification Agency
  • Proposition 65
• ChannelSightWidgetId
  • 705
• Class Code
  • B82
• Country of Origin
  • US
• Crimp Force Capacity
  • 4.5 ton
• Crimping Ranges
  • Copper: 10 sol. -500 Kcmil; Copper Flex:#8 to 350 kcmil
• Description - Invoice
  • CRMP TOOL, MECH, SGL ACT
• Die Type
  • W Die and X Die
• Dimensions
  • 25.38 in x 7.04 in x 2.00 in
• Each - Number of Sub Packs
  • 1
• Each - Pack Description
  • Each
• Each - Width
  • 2 in
• Freight Class Code
  • 16027000
• Harmonization Code
  • 8205595560
• Height
  • 2.00 in
• Image Actual Or Representative
  • A
• Lead Time
  • 10 wk
• Length
  • 25.38 in
• Lowest Level UOM
  • Each
• MSDS Flag
  • No
• Order Multiple
  • 1 EA
• Overall Length
  • 25.38 in
• Product Type
  • 4.5-Ton
• Special Features
  • Features: Proper Crimps Are Assured With Butting Steel Jaws, No Additional Dies Required For O And D3 Size Tap Connectors, Increased Strength And Greater Bearing Area Is Provided With Larger Steel Bolts, Fast, Easy, One-Hand Die Insertion, No Lost Dies With Spring Loaded Positive Lock Die Retainer Buttons, Easy Visual Field Check For Proper Tool Adjustment With Orange Alignment Guide Lines, Over 90,000 Crimps Provided With Teflon Impregnated Steel Backed Bronze Bushings, Full Crimp Force Assured With Over Center Cam Action, Easy Tool Adjustment With Allen Wrench, Operator Protection Provided With Butt Stops And Heat Shrink Tubing, Long Life Expectancy Provided With Select Clear Hickory Handles And Lightweight High Strength Aluminum Alloy Castings, Easier Tool Operation Is Provided With Bent Handles And Anti-Slip Grips, The D3 Groove Accommodates The Complete Line Of Type W Die Inserts, 5-year limited warranty, Conductor Type: ACSR, 6201, 5005, Aluminum, Copper, Copperweld, Alumoweld, Steel, Compressed And Compact Conductors, Covered Handles: Yes, Permanent Dies: Yes, Dies Used: W, X And W VT, Weight: 6 LB, Accepts Dies: Yes, Fully Covered: No, Cutting Dies Available: Yes
• Standard Package Quantity
  • 1
• Standards - RoHS Compliance Status
  • EX
• Stock Indicator
  • S - Shelf Stock
• Sub Brand
  • HYTOOL
• Sub Class Code
  • B82B82M
• Tool Type
  • Hand Operated Crimper
• Trade Name
  • HYTOOL™
• Warranty
  • 5 year limited warranty
• Weight
  • 6 lb.
• Width
  • 2 in
