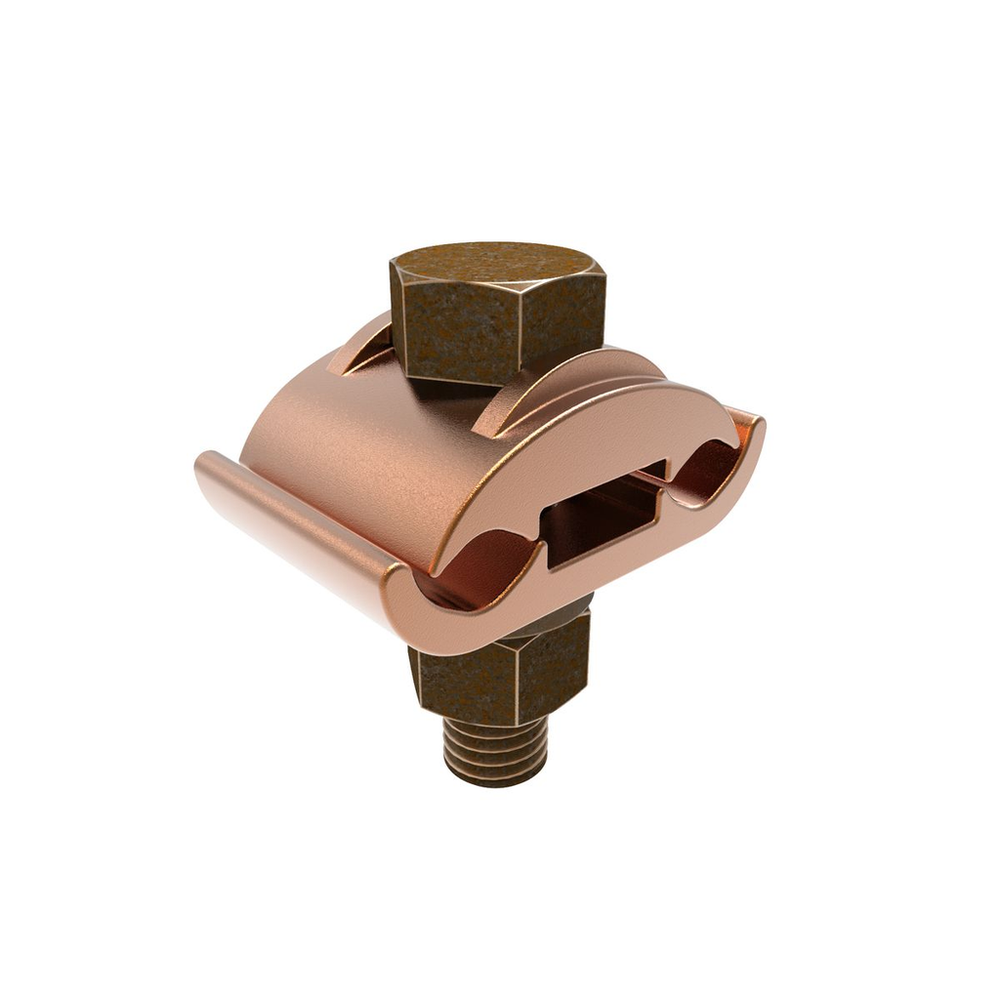

Burndy GC2929
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Burndy GC2929 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Listed Direct Burial
- Yes
- UL Recognized
- No
Specifications
- Application
- For Joining A Wide Range Of Two Parallel Copper Cables, Direct Burial In Concrete Or Ground
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810231722
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810231723
- Certification Agency
- Proposition 65
- Class Code
- B41
- Conductor - Copper Solid Size
- 2/0 AWG;3/0 AWG;4/0 AWG
- Conductor - Copper Solid Size Range
- 2/0 AWG - 250 KCMIL
- Conductor - Copper Str Size
- 2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
- Conductor - Copper Str Size Range
- 2/0 AWG-250 kcmil
- Country of Origin
- MX
- Dimension - Height inch
- 2.32 in
- Dimension - Length Overall inch
- 1.25 in
- Dimension - L Length Overall mm
- 32 mm
- Dimensions
- 1.25 in x 2.04 in x 2.32 in
- Dimension - Width fraction
- 2 in
- Dimension - Width inch
- 2.04 in
- Dimension - Width mm
- 52 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Freight Class Code
- 16027000
- Harmonization Code
- 8535909999
- Height
- 2.32 in
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL467
- Installation Torque Recommended in-lb
- 480 lb-in
- Lead Time
- 10 wk
- Length
- 1.25 in
- Lowest Level UOM
- Each
- Material
- Copper
- Material Type - Screw
- DURIUM™ Silicon Bronze
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 5.88 lb.
- Package - GTIN - Package
- 30781810231723
- Package - Number of Sub Packs
- 12
- Package - Pack Description
- Package
- Package Quantity
- 12 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810231722
- Package - Total Units
- 12 EA
- Package Weight
- 0.000 lb.
- Physical Attribute - Screw Type
- Hexagonal Bolt
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Mechanical
- Standard Package Quantity
- 12
- Standards - Industry Standards Met
- UL467
- Standards - RoHS Compliance Status
- EX
- Sub Brand
- MECHANICAL CONNECTOR
- Sub Class Code
- B41BD4F
- Type
- GC
- UL Listed
- Yes
- Width
- 2.04 in
