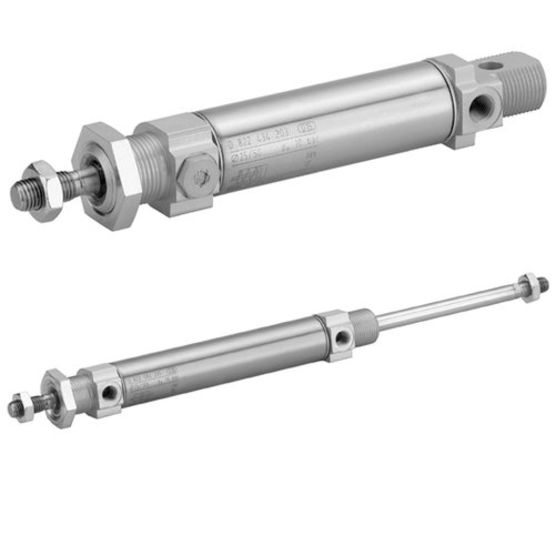

AVENTICS 0822432202
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
AVENTICS 0822432202 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Bore Size
- 16 mm
- Compressed air connection
- M5
- Cushioning
- elastic cushioning
- Elastic cushioning
- Cylinder Function
- Single-acting, retracted without pressure
- Environmental requirements
- Industry standard
- Extracting piston force
- 102.2 N
- Functional principle
- Single-acting, retracted without pressure
- Impact energy
- 0.14 J
- Magnetic piston
- Piston without magnet
- piston without magnet
- Max. ambient temperature
- 80 Deg C
- Maximum Working Pressure
- 10 bar
- Medium
- Compressed air
- Min. ambient temperature
- -25 Deg C
- Piston force extending
- 102.2 N
- Piston Ø
- 16 mm
- Piston rod
- single
- Piston rod thread
- M6
- Ports
- M5
- Pressure for determining piston forces
- 6,3 bar
- Scraper
- Standard industrial scraper
- Spring force max.
- 24.4 N
- Spring force min.
- 14.2 N
- Standards
- ISO 6432
- Stroke
- 25 mm
- Stroke Length
- 25 mm
- Stroke max.
- 50 mm
- Weight
- 0.0925 kg
- Weight 0 mm stroke
- 0.075 kg
- Weight +10 mm stroke
- 0.007 kg
- Working pressure max
- 10 bar
- Working pressure min.
- 2 bar
