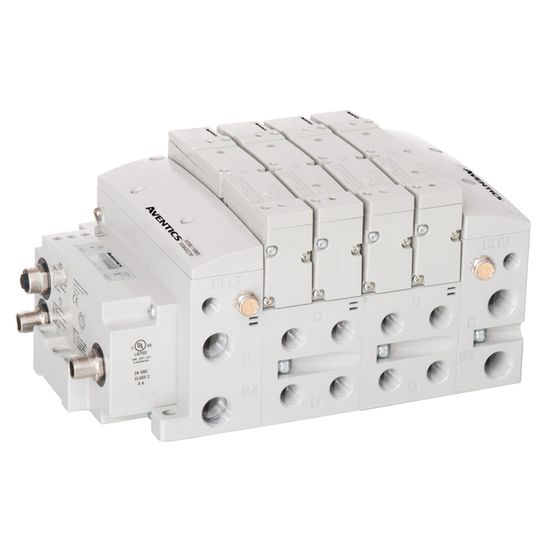

AVENTICS R503A2B70MA00F1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
AVENTICS R503A2B70MA00F1 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Activation
- Electrically
- Actuating control
- Double Solenoid
- Blocking principle
- Single base plate principle, can be assembled into blocks
- Can be assembled into blocks
- Can be assembled into blocks
- Connection type
- Plate connection
- Control pressure max.
- 8 bar
- Control pressure min.
- 3 bar
- Flow (L/M)
- 1300 l/min
- Max. ambient temperature
- 50 Deg C
- Maximum Working Pressure
- 8 bar
- Max. medium temperature
- 50 Deg C
- Max. particle size
- 50 µm
- Medium
- Compressed air
- Min. ambient temperature
- -10 Deg C
- Min. medium temperature
- -10 Deg C
- Nominal flow Qn
- 1300 l/min
- Oil content of compressed air max.
- 5 mg/m³
- Oil content of compressed air min.
- 0 mg/m³
- Pilot
- External
- Pilot control exhaust
- with directional pilot air exhaust
- Sealing principle
- Soft Seal
- Seat / Seal Type
- Soft Seal
- Switching principle
- 5/3
- Valve Function
- Pressurized Center
- Valve Pilot
- External
- Valve type
- Spool valve, positive overlapping
- Version
- Pressurized Center
- Voltage tolerance DC
- -15% / +10%
- Working pressure max
- 8 bar
- Working pressure min.
- -0.95 bar
Williams Automation sells AVENTICS parts at huge savings. Search to find the part you need today. If you can't find what you are looking for please Request A Quote from us and we will provide a timely response. You can also call us at 803-761-7027. We look forward to working with you to assist in the best way we can for your industrial needs.
