Description

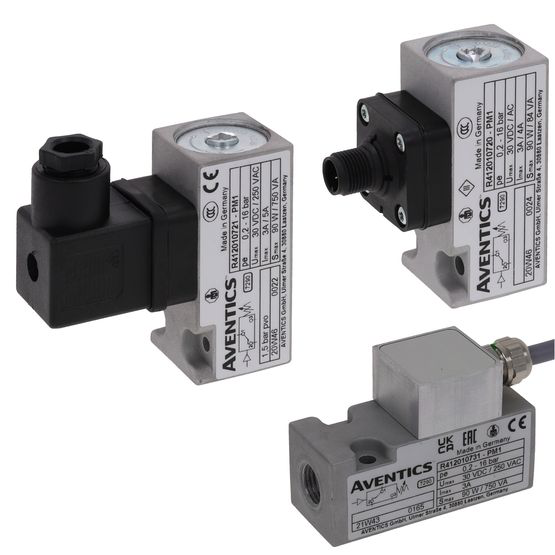

PM1-M3-G014-002-160-DINA-NONEPressure Switches, Series PM1 R412010712 - R412010712
AVENTICS R412010712 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Accessory Type
- Sensors
- Compressed air connection
- G 1/4
- Compressed air connection type
- Internal thread
- Function
- change-over contact (mechanical)
- Hysteresis
- max. switching pressure difference
- Max. ambient temperature
- 80 Deg C
- Max. medium temperature
- 80 Deg C
- Max. switching frequency
- 100/min.
- Measurement
- Relative pressure
- Medium
- Compressed air, Hydraulic oil
- Min. ambient temperature
- -20 Deg C
- Min. medium temperature
- -10 Deg C
- Mounting orientation
- Any
- Mounting position
- Any
- Operating pressure max
- 16 bar
- Operating pressure min
- 0.2 bar
- Operating voltage AC, min.
- 12 V AC
- Operating voltage DC, max.
- 125 V DC
- Operating voltage DC, min.
- 12 V DC
- Operational voltage AC, max.
- 250 V AC
- Overpressure Protection
- 80 bar
- Protection against overpressure
- 80 bar
- Protection class
- IP65
- Repetitive precision
- ± 2 %
- Shock resistance max.
- 15 g
- Supply voltage DC max.
- 125 V DC
- Switching element
- microswitch (input/output)
- Switching point
- adjustable
- Switching pressure max.
- 16 bar
- Type
- Diaphragm, spring loaded, adjustable
- Vibration resistance
- 10 g (60 - 500 Hz)
