WIKA 9833892
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

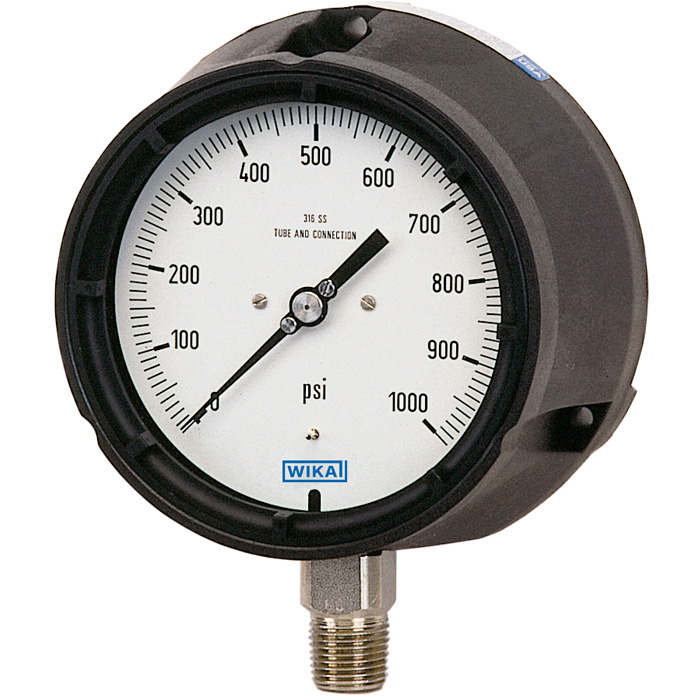

This high-quality Bourdon tube pressure gauge has been designed especially for the process industry. The use of high-quality materials and the robust design are geared to applications in the chemical and process engineering industries. Scale ranges of 0 … 10 to 0 … 30,000 psi [0 ... 0. 6 to 0 ... 2,000 bar] ensure the measuring ranges required for a wide variety of applications. WIKA manufactures and qualifies the pressure gauge in accordance with the standard ASME B40. 100. As a safety function, this instrument has a solid baffle wall with blow-out back. In the event of a failure, the operator is protected at the front side, as media or components can only be ejected via the back of the case. The glass-fibre reinforced POCAN® case offers the necessary stability for reproducible measurements, even under aggressive ambient conditions. With the model 233. 34, the case filling in combination with a screwed-in restrictor enables use in applications with highly dynamic pressure loads and vibrations.Bourdon tube pressure gauge, stainless steel , 0/1000 psi, 1/4 NPT
WIKA 9833892 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Accuracy Class
- +/- .5% (ASME B40.100 2A)
- Bezel ring
- Threaded, Black Fiberglass Reinforced Thermoplastic (Pocan B4225)
- Case
- Black Fiberglass Reinforced Thermoplastic (Pocan B4225)
- Case filling
- with
- Case filling fluid
- Glycerine
- color for 1.scale (outside)
- black
- Connector location
- lower mount
- dial background
- White
- Ingress Protection
- IP 65
- Material pressure element
- Measuring System 316L
- Measuring System
- Stainless Steel
- Model
- 233.34
- Nominal size
- 4.5"
- Pointer
- adjustable pointer
- Pressure Gauge Standard
- US-Standard
- Process Connection
- 1/4 NPT
- Restrictor
- stainless steel, D 0.6
- Scale range
- 0/1000 psi
- stop pin on dial
- at 6 o'clock
- Window
- acrylic (PMMA)
