Wiegmann N412362608CDSS
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

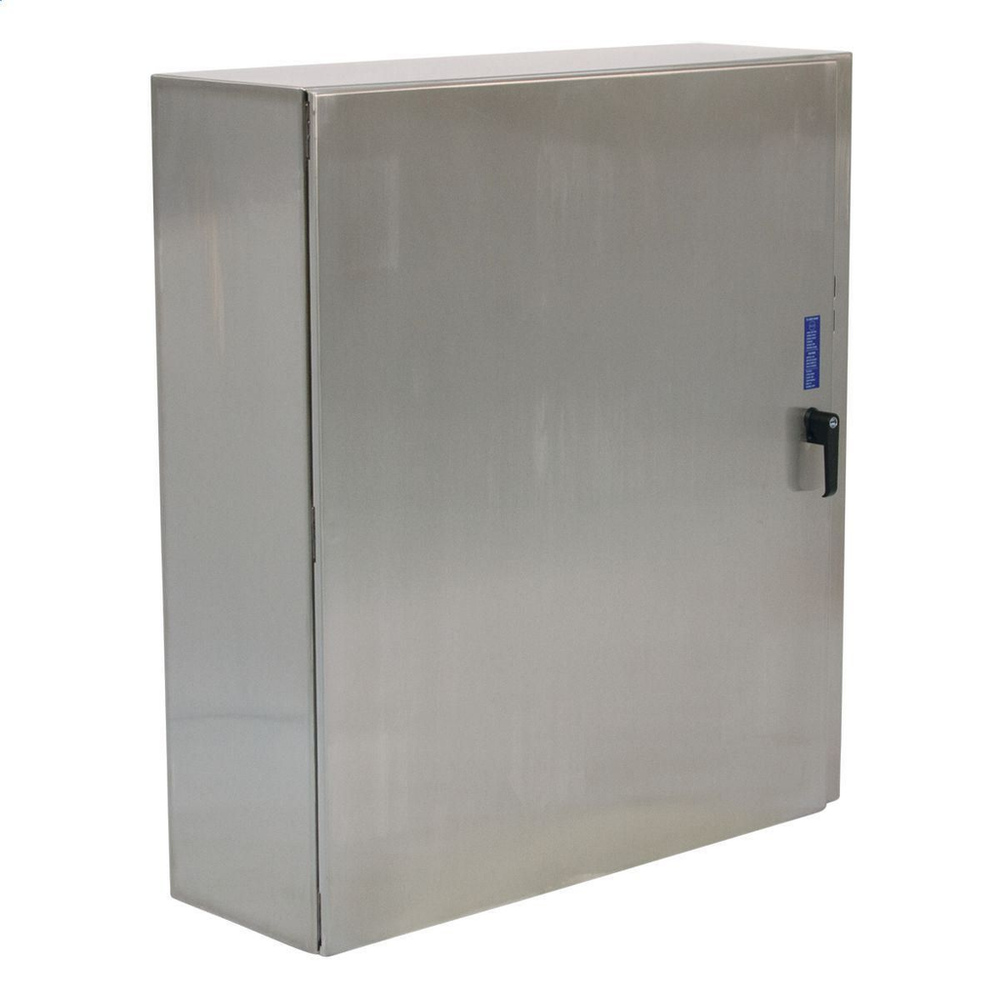

N412 Single Door Flanged Disconnect Ultimate Series 36X26X8 304 Stainless SteelN412 Single Door Flanged Disconnect Ultimate Series 36X26X8 304 Stainless Steel
Wiegmann N412362608CDSS is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- Certified Listed
- cULus;IEC
- EU RoHS Indicator
- Yes
- Listings
- UL, CSA
Specifications
- Application
- These general purpose disconnect enclosures accept major brand disconnect switches and circuit breakers, available with or without Wiegmann-supplied defeater door handle and handle hardware.
- ARRA Compliant
- Contact Manufacturer
- Base Unit of Measure
- EA
- BOX SIZE
- 36.000x8.000x26.000 (in)
- Buy American Compliant
- Contact Manufacturer
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725862702
- Class Code
- P03
- Construction
- Continuously Welded Seams
- Country of Origin
- US
- Cubic Capacity
- 7488 cu.in
- Depth
- 8 in
- Description - Invoice
- N412,WM SS DISC. 36X26X8 W/HNDL.ULTIMATE
- Each - Width
- 26.000 in
- Finish
- Smooth Grained
- Finish Type
- Smooth Grained
- Freight Class Code
- 06316009
- Harmonization Code
- 7326908688
- Height
- 36 in
- Image Actual Or Representative
- R
- Latches Type
- 2-Point
- Lead Time
- 21 wk
- Material
- Stainless Steel
- Mounting
- Mounting Holes
- Mounting Type
- Mounting Holes
- MSDS Flag
- No
- Nema Rating
- 4
- NEMA Rating
- 4
- Number of Doors (Fixed)
- 1
- Order Multiple
- 1 EA
- Returnable Indicator
- Yes
- Special Features
- Bodies and doors fabricated from 14 gauge 304 stainless steel. Continuously plasma welded seams. Increased tub opening for better access. Concealed hinges. Easy to remove doors are interchangeable. Grounding provisions included. Doors are sealed with poured-in-place polyurethane gasket. Mounting holes in rear of enclosure. Studs for mounting optional sub panel. Door latching system installed on door with a slotted insert defeater mechanism to open. Latching system interlocks with the disconnect handle for added safety. 2pt latch system.
- Standard
- cULus;IEC
- Stock Indicator
- S - Shelf Stock
- Sub Class Code
- P03P057
- Type
- Enclosure
- UL Listed
- Yes
- Weight
- 77 lb.
- Width
- 26.000 in
