Description

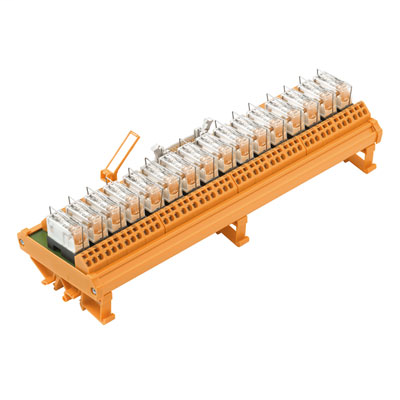

Interface, RSM, 16, RCL, Tension-clamp connectionRSM-16 24V(-/+) 1CO Z
Weidmuller 9444660000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-14-11-52
- eClass 9.0
- 27-14-11-52
- eClass 9.1
- 27-24-22-16
- ETIM 6.0
- EC002780
- ETIM 7.0
- EC002780
- UNSPSC
- 30-21-18-01
Connection Data
- Connection (field side)
- LMNZF 5.08mm
- Connection on control side
- Plug-in connector in acc. with IEC60603-13 / DIN41651
- Connection supply
- LMNZF 5.08mm
- Connection to PLC
- HE 10 connector - 20 pole
- Number of poles (control side)
- 20-pole plug
Connection Field
- Clamping range, max.
- 1.5 mm²
- Clamping range, min.
- 0.15 mm²
- Flexible, max. H05(07) V-K
- 1.5 mm²
- Flexible, min. H05(07) V-K
- 0.5 mm²
- Flexible with sleeve, max.
- 1.5 mm²
- Max. wire cross-section, AWG
- AWG 14
- Min. wire cross-section, AWG
- AWG 26
- Solid, max. H05(07) V-U
- 1.5 mm²
- Solid, min. H05(07) V-U
- 0.5 mm²
- Stripping length
- 7 mm
- Type of connection
- Tension-clamp connection
Dimensions And Weights
- Height
- 68 mm
- Height (inches)
- 2.677 inch
- Length
- 267 mm
- Length (inches)
- 10.512 inch
- Net weight
- 620 g
- Width
- 87.5 mm
- Width (inches)
- 3.445 inch
General Data
- Fuse per relay
- No
- LED status display per relay
- green
- LED status of the supply voltage
- yellow
- Power supply fuse
- No
Insulation Coordinates (En50178)
- According to
- DIN EN 50178
- Clearance input/input
- ≥ 0.2 mm
- Clearance input/output
- ≥ 5.5 mm
- Clearance output/output
- ≥ 1.17 mm
- Insulation test voltage
- 2.5 kVAC
- Overvoltage category input/input
- III
- Overvoltage category input/output
- III
- Overvoltage category output/output
- II
- Pollution severity level
- 2
- Pulse voltage test (1,2/50μs)
- 6 kV
- Rated input insulation voltage
- < 50 V AC
- Rated output insulation voltage
- < 250 V AC
Rating Data
- Mechanical service life
- 3 x 107 switching cycles
Ratings Data Input
- Input current
- 22 mA
- Input voltage
- 24 V DC ± 10%
Ratings Data Output
- AC peak current
- 16 A
- Contact material
- AgNi 90/10
- Max. AC continuous current
- 5 A
- Minimum contact current
- 0.01 A
- Minimum contact voltage
- 10 V
- Rated voltage (text)
- ≤ 250 Vdc ≤ 250 Vac
- Relay type
- RCL
- Type of output
- Potential-free contact
Supply Connection
- Clamping range, max.
- 1.5 mm²
- Clamping range, min.
- 0.15 mm²
- Flexible, max. H05(07) V-K
- 1.5 mm²
- Flexible, min. H05(07) V-K
- 0.5 mm²
- Flexible with sleeve, max.
- 1.5 mm²
- Solid, max. H05(07) V-U
- 1.5 mm²
- Solid, min. H05(07) V-U
- 0.5 mm²
- Stripping length
- 7 mm
- Type of connection
- Tension-clamp connection
- Wire cross-section, max. AWG
- AWG 14
- Wire cross-section, min. AWG
- AWG 26
Temperatures
- Operating temperature
- -25...40 °C
- Operating temperature, max.
- 40 °C
- Operating temperature, min.
- -25 °C
- Storage temperature
- -40...60 °C
- Storage temperature, max.
- 60 °C
- Storage temperature, min.
- -40 °C
