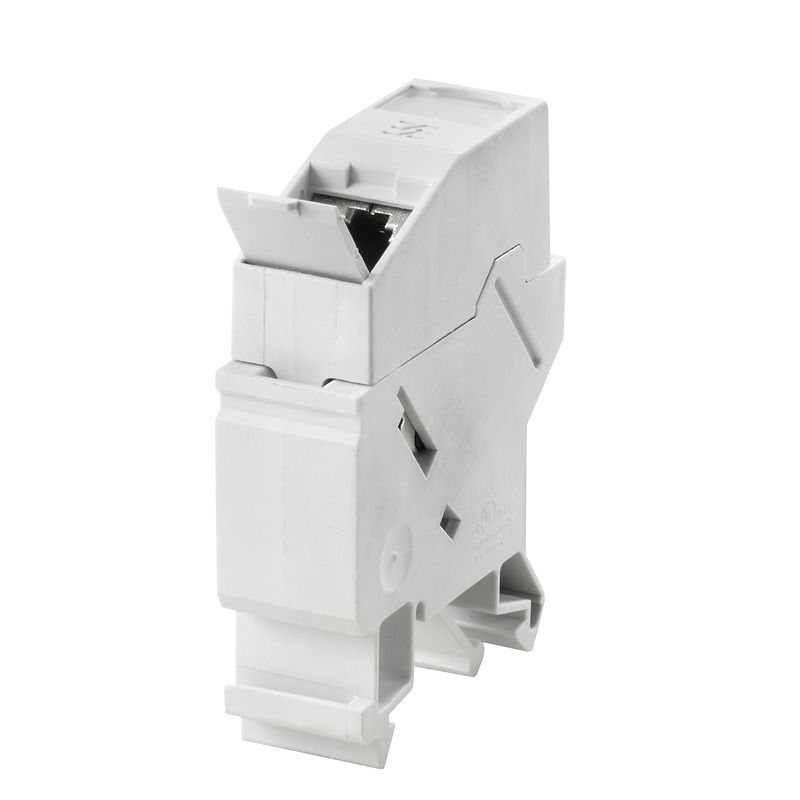

Weidmuller 8808360000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Terminal rail outlet, RJ45 module, IP20, Cat.6A / Class EA (ISO/IEC 11801 2010)IE-XM-RJ45/IDC
Weidmuller 8808360000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CULUS, DNV GL
- ROHS
- Conform
- UL File Number Search
- E316369
Classifications
- eClass 10.0
- 27-44-03-20
- eClass 9.0
- 27-44-03-20
- eClass 9.1
- 19-17-01-25
- ETIM 6.0
- EC000313
- ETIM 7.0
- EC000313
- UNSPSC
- 43-17-27-10
Dimensions And Weights
- Net weight
- 53 g
Electrical Properties
- Contact resistance
- ≤ 20 mΩ
- Current-carrying capacity at 50 °C
- 1 A
- Dielectric strength, contact / contact
- ≥ 1000 V DC
- Dielectric strength, contact / shield
- ≥ 1500 V DC
- Insulation strength
- 500 MΩ
- PoE / PoE+
- conforming to IEEE 802.3at
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Data
- Category
- Cat.6A / Class EA (ISO/IEC 11801 2010)
- Colour
- Light Grey
- Conductor connection cross-section, flexible (AWG)
- AWG 26...AWG 22
- Conductor connection cross-section, solid (AWG)
- AWG 24...AWG 22
- Configuration
- 1 TE pitch dimension acc. to DIN 43880. insta-compatibleInstallation flange with mounting frame
- Connection 1
- RJ45
- Connection 2
- IDC
- Connection diameter, flexible
- 0.48...0.64 mm
- Connection diameter, solid
- 0.4...0.64 mm
- Description of article
- RJ45 module
- Housing main material
- PA 66, UL 94: V-0
- Insulation cross-section, max.
- 1.6 mm
- Insulation cross-section, min.
- 0.7 mm
- Plugging cycles
- 750
- Protection degree
- IP20
- Type of mounting
- TS 35
- Wiring
- EIA/TIA T568 A, EIA/TIA T568 B, PROFINET
Standards
- Certificate no. (cULus)
- E316369
- Certificate No. (GERMLLOYD)
- 33451-06
- Connector standard
- IEC 60603-7-5
Temperatures
- Operating temperature
- -25 °C...70 °C
- Operating temperature, max.
- 70 °C
- Operating temperature, min.
- -25 °C
