Description

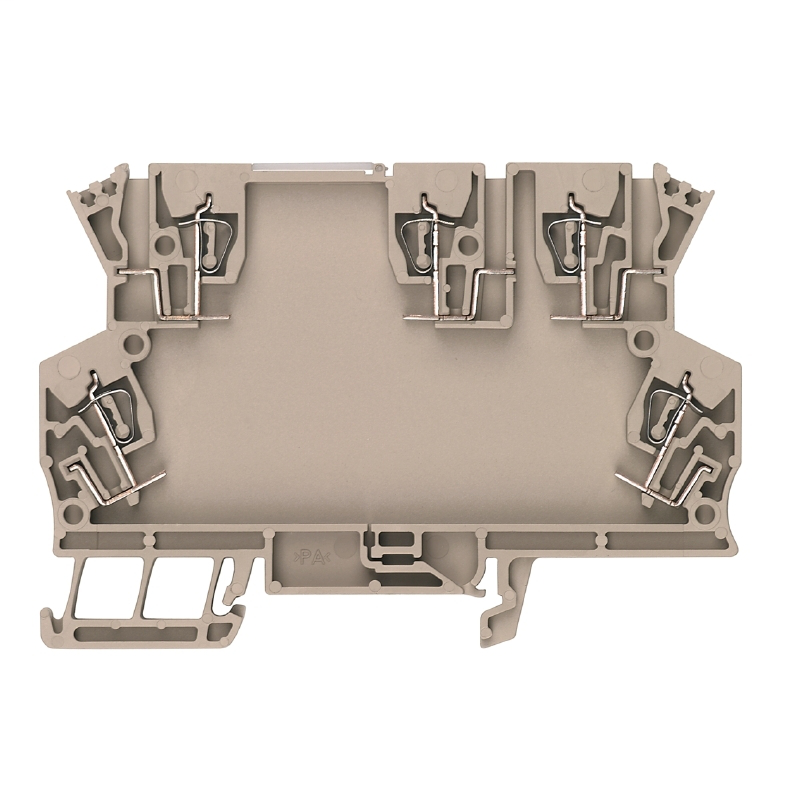

Small housing, OMNIMATE Housing - TERMINALBOX grey-beige, Terminal support, Width: 6 mmMCZ 5 SET
Weidmuller 8397760000 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-18-27-02
- eClass 9.0
- 27-18-27-02
- eClass 9.1
- 27-18-27-92
- ETIM 6.0
- EC001031
- ETIM 7.0
- EC001031
- UNSPSC
- 30-21-18-01
Dimensions And Weights
- Height
- 63 mm
- Height (inches)
- 2.48 inch
- Length
- 91 mm
- Length (inches)
- 3.583 inch
- Net weight
- 1,662 g
- Width
- 6 mm
- Width (inches)
- 0.236 inch
Material Data
- Colour
- grey-beige
- Comparative Tracking Index (CTI)
- ≥ 600
- Contact base material
- CuZn
- Contact material
- CuZn
- Contact surface
- tinned
- Insulating material group
- IIIa
- Max. relative humidity during storage
- 80 %
- Operating temperature, max.
- 120 °C
- Operating temperature, min.
- -50 °C
- Storage temperature, max.
- 55 °C
- Storage temperature, min.
- -25 °C
- Temperature range, installation, max.
- 120 °C
- Temperature range, installation, min.
- -25 °C
- UL 94 flammability rating
- V-0
Rated Data Acc. To Iec
- Rated current, max. number of poles (Tu=20°C)
- 10 A
- Rated current, max. number of poles (Tu=40°C)
- 10 A
- Rated impulse voltage for surge voltage class/ contamination degree III/3
- 4 kV
- Rated impulse voltage for surge voltage class/ pollution degree II/2
- 4 kV
- Rated impulse voltage for surge voltage class/ pollution degree III/2
- 4 kV
- Rated voltage for surge voltage class / pollution degree II/2
- 400 V
- Rated voltage for surge voltage class / pollution degree III/2
- 320 V
- Rated voltage for surge voltage class / pollution degree III/3
- 250 V
System Characteristics
- Contact to terminal rail
- No
- Continuous current of cross-connection
- 10 A
- Continuous current of cross-connection/PCB
- 32 A
- Cross-connection
- Yes
- Encapsulation option
- Yes
- Number of connection levels
- 2
- Number of connections
- 5
- Number of PCBs per module
- 1
- PCB thickness
- 1 mm
- Power loss, max.
- 0.8 W
- Protection degree
- IP20
- Tolerance for the PCB shape
- ±0.1 mm
- Type of connection
- Tension-clamp connection
- Type of contact to PCB
- Solder connection, direct
- Version
- Terminal support
