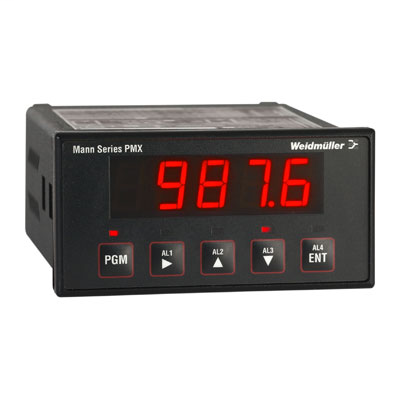

Weidmuller 7940015595

Alarm

• Number of channels, alarm
  • 4
• Rated switching current
  • 200 mA
• Rated switching voltage
  • 50 V DC
• Switching current
  • Channel 3/4: 3 A @ 240 V AC / 24 V DC (resistive load)
• Type
  • Channel 1/2: transistor outputchannel 3/4: relay contact (CO)

Approvals

• Approvals
  • CE, CULUS
• ROHS
  • Conform
• UL File Number Search
  • E205105

Classifications

• eClass 10.0
  • 27-14-31-10
• eClass 9.0
  • 27-14-31-10
• eClass 9.1
  • 27-21-03-01
• ETIM 6.0
  • EC000677
• ETIM 7.0
  • EC000677
• UNSPSC
  • 30-21-18-01

Connection Data

• Clamping range, max.
  • 2.5 mm²
• Clamping range, min.
  • 0.5 mm²
• Clamping range, rated connection
  • 1.5 mm²
• Type of connection
  • Screw connection

Dimensions And Weights

• Height
  • 48.8 mm
• Height (inches)
  • 1.921 inch
• Length
  • 137 mm
• Length (inches)
  • 5.394 inch
• Net weight
  • 383 g
• Weight
  • 383 g
• Width
  • 96.6 mm
• Width (inches)
  • 3.803 inch

Display

• Display range
  • -9999...9999
• Display value
  • Percentage or real value display
• Scaling
  • Variable
• Type
  • 4-digit, red LED, 14.2 mmVoltage input/ current input

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

Functions

• Step response time
  • < 220 ms (10...90 %)

General Data

• Cut-off frequency (-3 dB)
  • 5 Hz
• Data backup
  • ≥ 100 years (without power supply)
• Humidity
  • 0...90 % (no condensation)
• Input/Output
  • without analogue/alarm output
• Linearity
  • < 0.05 %
• Long-term drift
  • 0.1 % / 10.000 h
• Power consumption
  • 6 W @ 24 V DC
• Step response time
  • < 220 ms (10...90 %)
• Switching current
  • Channel 3/4: 3 A @ 240 V AC / 24 V DC (resistive load)
• Transmit function
  • direct or inverted
• Type of connection
  • Screw connection
• Voltage supply
  • 24 V DC ± 10 %
• Weight
  • 383 g

Input

• Attenuation factor
  • 0...99, programmable digital filter
• Input signal
  • Configurable for 4 ranges
• Input voltage
  • 50 mV to 250 V AC / 3 to 250 V DC
• Sensor supply
  • 12 V DC to 25 mA
• Type
  • Adjustable frequencies

Insulation Coordination

• EMC standards
  • DIN EN 61326
• Impulse withstand voltage
  • 4 kV (1.2/50 µs)

Output

• Last resistor, max.
  • ≤ 850 Ω (current); ≥ 1MΩ (voltage)
• Output signal
  • 0...20 mA or 0...11 V
• Scaling
  • Variable
• Transmit function
  • direct or inverted
• Type
  • RO/AO version with 1 analogue output and 2 alarm outputs

Ratings Iecex/Atex/Cul

• Certificate no. (cULus)
  • E205105

Temperatures

• Humidity
  • 0...90 % (no condensation)
• Operating temperature
  • 0 °C...60 °C
• Operating temperature, max.
  • 60 °C
• Operating temperature, min.
  • 0 °C
• Storage temperature
  • -25 °C...70 °C
• Storage temperature, max.
  • 70 °C
• Storage temperature, min.
  • -25 °C
