Description

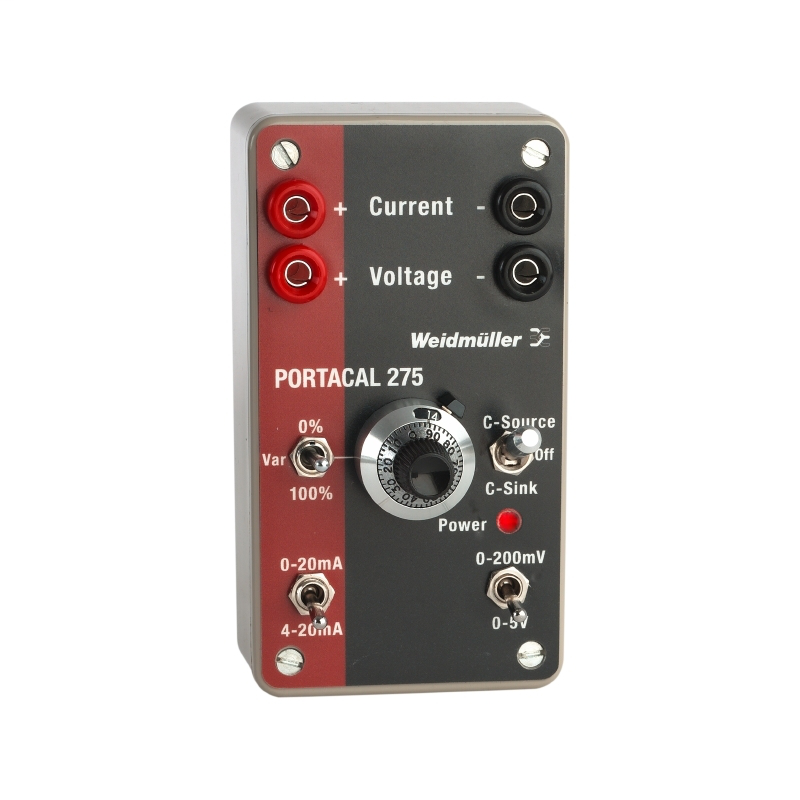

OMNIMATE Signal - series PM, Calibration deviceP275
Weidmuller 7940010202 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Analogue Output
- Residual ripple (analogue output)
- < 1 µA
Approvals
- Approvals
- CE, CULUS
- ROHS
- Conform
- UL File Number Search
- E256486
Classifications
- eClass 10.0
- 21-17-08-90
- eClass 9.0
- 21-17-08-90
- eClass 9.1
- 27-21-92-90
- ETIM 6.0
- EC002744
- ETIM 7.0
- EC002744
- UNSPSC
- 30-21-18-01
Connection Data
- Clamping range, max.
- 2.5 mm²
- Clamping range, min.
- 0.5 mm²
- Clamping range, rated connection
- 1.5 mm²
- Type of connection
- Socket connector
Control
- Output, fixed
- 0 or 100 % with toggle switch
- Output, variable
- 0...100 % with precision potentiometer
Dimensions And Weights
- Height
- 112 mm
- Height (inches)
- 4.409 inch
- Length
- 31 mm
- Length (inches)
- 1.22 inch
- Net weight
- 348 g
- Weight
- 348 g
- Width
- 62 mm
- Width (inches)
- 2.441 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Functions
- Accuracy
- 0.25 % of signal range
- Temperature coefficient
- typ. 40 ppm @ °°C
General Data
- Accuracy
- 0.25 % of signal range
- Temperature coefficient
- typ. 40 ppm @ °°C
- Type of connection
- Socket connector
- Voltage supply
- Batteries, 2 x 9-V blocks 6...22 mA (current source)2 mA (current sink)
- Weight
- 348 g
Insulation Coordination
- EMC standards
- DIN EN 61326
- Standards
- DIN EN 50178
Output
- Residual ripple (analogue output)
- < 1 µA
Output Current Mode
- Accuracy (current mode output)
- < 0.1% (0% and 100%)
- Load resistance, max. (current mode output)
- 700 Ω (current source)(Vout - 4) / 0.02 Ω (current sink)
- Output current (current mode output)
- 0 (4)...20 mA
- Output voltage, max. @ current sink (output of current mode)
- 4...45 V DC
- Residual ripple (current mode output)
- < 1 µA
- Resolution (current mode output)
- 0.01 mA
Output Voltage Mode
- Accuracy (voltage mode output)
- < 0.2% (0% and 100%)
- Output resistance (voltage mode output)
- 250 Ω @ V / 10 Ω @ mV
- Output voltage, note
- 0...5 V / 1...5 V; 0...200 mV / 40...200 mV
- Resolution (voltage mode output)
- 0.01 V
Ratings Iecex/Atex/Cul
- Certificate no. (cULus)
- E256486
Settings
- Accuracy
- 0.25 % of signal range
- Output, fixed
- 0 or 100 % with toggle switch
- Output, variable
- 0...100 % with precision potentiometer
- Range of adjustment
- 0 (4)...20 mA / 0...200 mA (current source).0...5 V (voltage source) or as current sinkselectable with toggle switch
Temperatures
- Operating temperature
- 0 °C...60 °C
- Operating temperature, max.
- 60 °C
- Operating temperature, min.
- 0 °C
- Storage temperature
- -25 °C...70 °C
- Storage temperature, max.
- 70 °C
- Storage temperature, min.
- -25 °C
