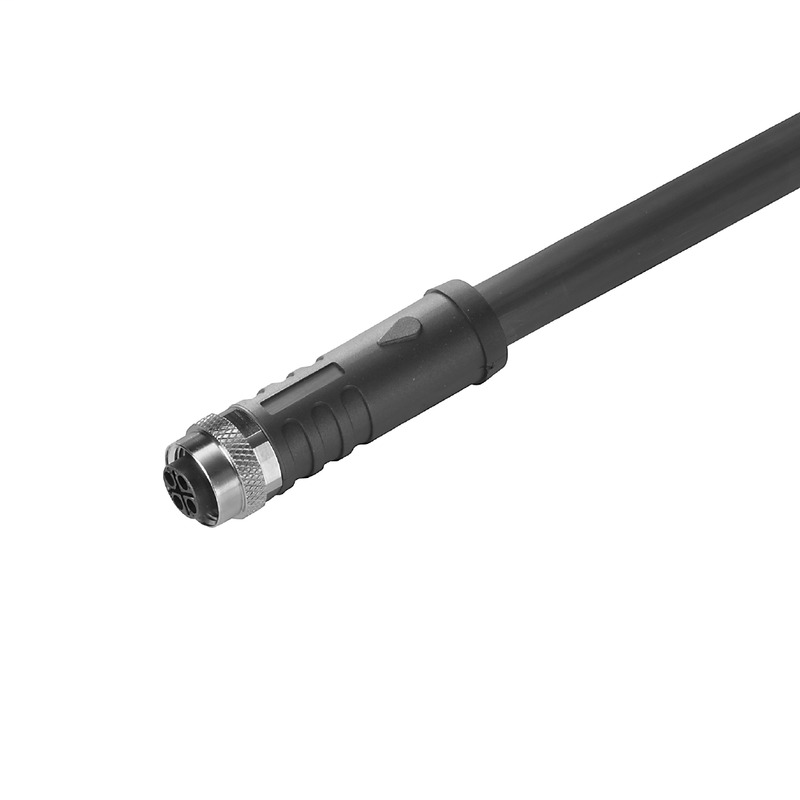

Weidmuller 2706670150
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Power cable, One end without connector, M12, Number of poles : 3 (2 + PE), 1.5 m, Shielded: No, LED: No, Sheath material: PUR, Halogen: NoSAIL-M12BG-S3-1.5P
Weidmuller 2706670150 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-06-03-11
- eClass 9.0
- 27-06-03-11
- eClass 9.1
- 27-06-03-11
- ETIM 6.0
- EC001855
- ETIM 7.0
- EC001855
Dimensions And Weights
- Net weight
- 146 g
General Technical Data
- Coding
- S
- Connection thread
- M12
- Contact surface
- Gold-plated
- Housing main material
- PUR
- Insulation strength
- 108 Ω
- LED
- No
- Plugging cycles
- ≥ 100
- Pollution severity
- 3
- Protection degree
- IP67, when screwed in
- Rated current
- 12 A
- Rated voltage
- 600 V
- Temperature range of housing
- -25…+80 °C
Technical Specifications For Cable
- Acceleration
- 5 m/s²
- Bending cycles
- 10 Mio
- Bending radius, min., moving
- 7.5 x cable diameter
- Bending radius, min., stationary
- 4 x cable diameter
- Cable length
- 1.5 m
- Colour coding
- blue, brown, Green/yellow
- Configurable cable length
- No
- Core cross-section
- 1.5 mm²
- Halogen
- No
- Insulation
- PP
- Number of poles
- 3 (2 + PE)
- Outer cladding in accordance with UL AWM style
- 20234 (80 °C / 1000 V)
- Outside diameter
- 8.5 ± 0.3 mm
- Resistant to welding beads
- No
- Sheathing colour
- black
- Sheath material
- PUR
- Shielded
- No
- Speed
- 5 m/s
- Suitable for cable carriers
- Yes
- Temperature range, moving
- -40...80 °C
- Temperature range, stationary
- -50...80 °C
