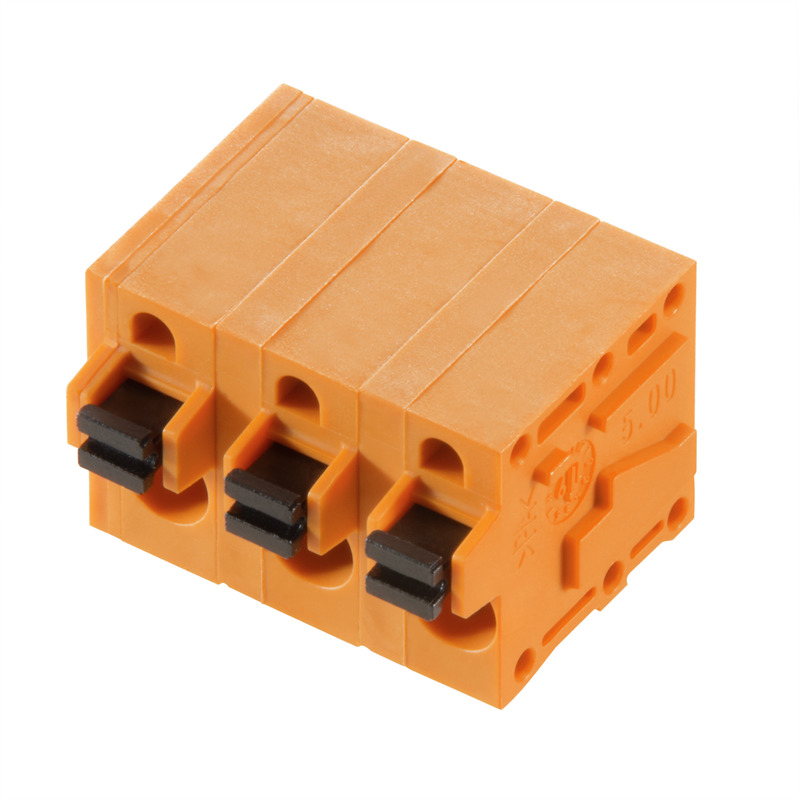

Weidmuller 2667910000

Classifications

• eClass 10.0
  • 27-44-04-01
• eClass 9.0
  • 27-44-04-01
• eClass 9.1
  • 27-44-04-01
• ETIM 6.0
  • EC002643
• ETIM 7.0
  • EC002643

Conductors Suitable For Connection

• Clamping range, max.
  • 2.5 mm²
• Clamping range, min.
  • 0.12 mm²
• Flexible, max. H05(07) V-K
  • 2.5 mm²
• Flexible, min. H05(07) V-K
  • 0.25 mm²
• Max. clamping range
  • 2.5 mm²
• Solid, max. H05(07) V-U
  • 2.5 mm²
• Solid, min. H05(07) V-U
  • 0.5 mm²
• Wire connection cross section AWG, max.
  • AWG 12
• Wire connection cross section AWG, min.
  • AWG 24
• w. plastic collar ferrule, DIN 46228 pt 4, max.
  • 2.5 mm²
• w. plastic collar ferrule, DIN 46228 pt 4, min.
  • 0.25 mm²
• w. wire end ferrule, DIN 46228 pt 1, max.
  • 2.5 mm²
• w. wire end ferrule, DIN 46228 pt 1, min.
  • 0.25 mm²

Dimensions And Weights

• Depth
  • 19.2 mm
• Depth (inches)
  • 0.756 inch
• Height
  • 18.3 mm
• Height (inches)
  • 0.72 inch
• Height of lowest version
  • 14.8 mm
• Net weight
  • 0 g
• Width
  • 15.2 mm
• Width (inches)
  • 0.598 inch

Material Data

• Coating
  • 4-6 μm SN
• Colour
  • orange
• Colour chart (similar)
  • RAL 2000
• Colour of operational elements
  • black
• Comparative Tracking Index (CTI)
  • ≥ 600
• Contact material
  • CuSn
• Contact surface
  • tinned
• Insulating material
  • Wemid (PA)
• Insulation strength
  • ≥ 108 Ω
• Layer structure of solder connection
  • 4-6 µm Sn matt
• Material of operational elements
  • PBT
• Max. relative humidity during storage
  • 80 %
• Operating temperature, max.
  • 120 °C
• Operating temperature, min.
  • -50 °C
• Storage temperature, max.
  • 55 °C
• Storage temperature, min.
  • -25 °C
• Temperature range, installation, max.
  • 120 °C
• Temperature range, installation, min.
  • -25 °C
• Tinning type
  • matt
• UL 94 flammability rating
  • V-0

Notes

• IPC conformity
  • Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
• Notes
  • Additional colours on request Rated current related to rated cross-section & min. No. of poles. Wire end ferrule without plastic collar to DIN 46228/1 Wire end ferrule with plastic collar to DIN 46228/4 P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. The test point can only be used as potential-pickup point.

Packing

• Packaging
  • Box
• VPE height
  • 0
• VPE length
  • 0
• VPE width
  • 0

Rated Data Acc. To Iec

• Rated current, max. number of poles (Tu=20°C)
  • 24 A
• Rated current, max. number of poles (Tu=40°C)
  • 24 A
• Rated current, min. number of poles (Tu=20°C)
  • 24 A
• Rated current, min. number of poles (Tu=40°C)
  • 24 A
• Short-time withstand current resistance
  • 3 x 1s with 120 A
• tested acc. to standard
  • IEC 60664-1, IEC 61984

Rated Data Acc. To Ul 1059

• Wire cross-section, AWG, max.
  • AWG 12
• Wire cross-section, AWG, min.
  • AWG 24

System Parameters

• Conductor outlet direction
  • 90°
• Insulation strength
  • ≥ 108 Ω
• L1 in mm
  • 7.5 mm
• Mounting onto the PCB
  • THT solder connection
• Number of poles
  • 2
• Number of rows
  • 1
• Number of solder pins per pole
  • 2
• Product family
  • OMNIMATE Signal - series LMF
• Screwdriver blade
  • 0.6 x 3.5
• Screwdriver blade standard
  • DIN 5264
• Solder eyelet hole diameter (D)
  • 1.1 mm
• Solder eyelet hole diameter tolerance (D)
  • + 0,1 mm
• Solder pin dimensions
  • d = 0.8 mm
• Solder pin length (l)
  • 3.5 mm
• Stripping length
  • 10 mm
• Touch-safe protection acc. to DIN VDE 0470
  • IP 20
• Touch-safe protection acc. to DIN VDE 57 106
  • Safe from finger touch
• Wire connection method
  • PUSH IN
