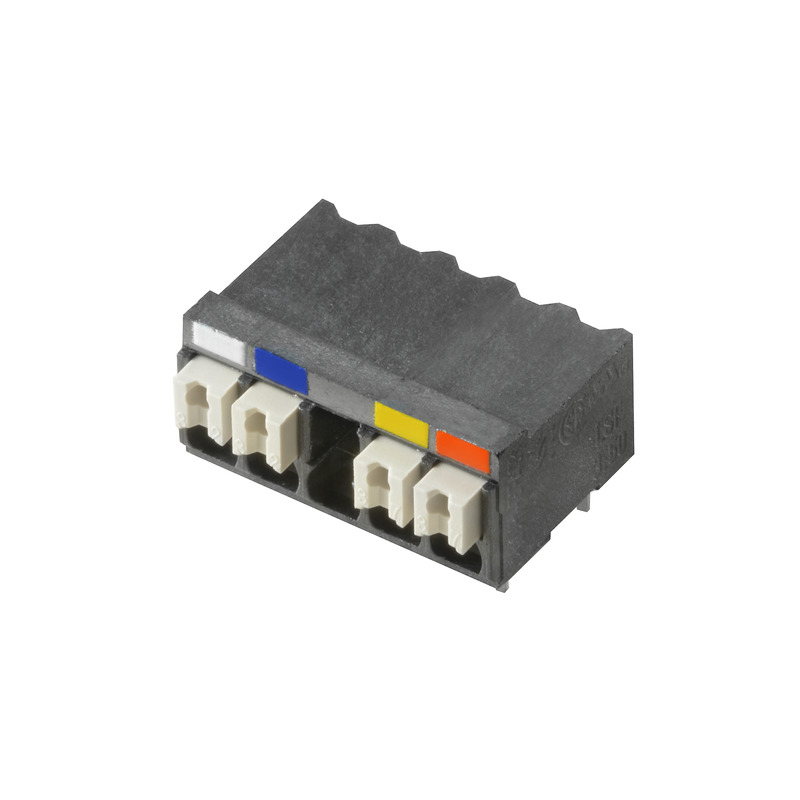

Weidmuller 2639520000

Approvals

• Approvals
  • VDE

Classifications

• eClass 10.0
  • 27-44-04-01
• eClass 9.0
  • 27-44-04-01
• eClass 9.1
  • 27-44-04-01
• ETIM 6.0
  • EC002643
• ETIM 7.0
  • EC002643

Conductors Suitable For Connection

• Clamping range, max.
  • 1.5 mm²
• Clamping range, min.
  • 0.13 mm²
• Flexible, max. H05(07) V-K
  • 1.5 mm²
• Flexible, min. H05(07) V-K
  • 0.2 mm²
• Max. clamping range
  • 1.5 mm²
• Solid, max. H05(07) V-U
  • 1.5 mm²
• Solid, min. H05(07) V-U
  • 0.2 mm²
• Wire connection cross section AWG, max.
  • AWG 14
• Wire connection cross section AWG, min.
  • AWG 28
• w. plastic collar ferrule, DIN 46228 pt 4, max.
  • 0.75 mm²
• w. plastic collar ferrule, DIN 46228 pt 4, min.
  • 0.25 mm²
• w. wire end ferrule, DIN 46228 pt 1, max.
  • 1.5 mm²
• w. wire end ferrule, DIN 46228 pt 1, min.
  • 0.25 mm²

Dimensions And Weights

• Depth
  • 14.75 mm
• Depth (inches)
  • 0.581 inch
• Height of lowest version
  • 9.65 mm
• Net weight
  • 3.433 g

Electrical Properties

• Insulation strength
  • ≥ 108 Ω
• Volume resistance
  • 1.60 mΩ

Material Data

• Colour
  • black
• Colour chart (similar)
  • RAL 9011
• Comparative Tracking Index (CTI)
  • ≥ 175
• Contact material
  • Copper alloy
• Insulating material
  • LCP GF
• Insulating material group
  • IIIa
• Insulation strength
  • ≥ 108 Ω
• Layer structure of solder connection
  • 4-6 µm Sn matt
• Max. relative humidity during storage
  • 80 %
• Moisture Level (MSL)
  • 1
• Operating temperature, max.
  • 120 °C
• Operating temperature, min.
  • -50 °C
• Storage temperature, max.
  • 55 °C
• Storage temperature, min.
  • -25 °C
• Temperature range, installation, max.
  • 120 °C
• Temperature range, installation, min.
  • -30 °C
• UL 94 flammability rating
  • V-0

Notes

• IPC conformity
  • Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
• Notes
  • Additional push button colours on request Operating force of slider max. 40 N Rated current related to rated cross-section & min. No. of poles. Wire end ferrule with plastic collar to DIN 46228/4 Wire end ferrule without plastic collar to DIN 46228/1 P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. Crimping shape "A" for wire end ferrules with PZ 6/5 crimping tool are recommended for the largest cable sizes.

Packing

• Packaging
  • Tube
• VPE height
  • 15 mm
• VPE length
  • 557 mm
• VPE width
  • 20 mm

Rated Data Acc. To Csa

• Rated current (Use group B / CSA)
  • 10 A
• Rated current (Use group D / CSA)
  • 10 A
• Rated voltage (Use group B / CSA)
  • 300 V
• Rated voltage (Use group D / CSA)
  • 300 V
• Wire cross-section, AWG, max.
  • AWG 14
• Wire cross-section, AWG, min.
  • AWG 28

Rated Data Acc. To Iec

• Rated current, max. number of poles (Tu=20°C)
  • 16 A
• Rated current, max. number of poles (Tu=40°C)
  • 14 A
• Rated current, min. number of poles (Tu=20°C)
  • 17.5 A
• Rated current, min. number of poles (Tu=40°C)
  • 17.5 A
• Rated impulse voltage for surge voltage class/ contamination degree III/3
  • 2.5 kV
• Rated impulse voltage for surge voltage class/ pollution degree II/2
  • 2.5 kV
• Rated impulse voltage for surge voltage class/ pollution degree III/2
  • 2.5 kV
• Rated voltage for surge voltage class / pollution degree II/2
  • 320 V
• Rated voltage for surge voltage class / pollution degree III/2
  • 160 V
• Rated voltage for surge voltage class / pollution degree III/3
  • 160 V
• Short-time withstand current resistance
  • 3 x 1s with 80 A
• tested acc. to standard
  • IEC 60664-1, IEC 61984

Rated Data Acc. To Ul 1059

• Rated current (Use group B / UL 1059)
  • 12 A
• Rated current (Use group D / UL 1059)
  • 10 A
• Rated voltage (Use group B / UL 1059)
  • 300 V
• Rated voltage (Use group D / UL 1059)
  • 300 V
• Wire cross-section, AWG, max.
  • AWG 14
• Wire cross-section, AWG, min.
  • AWG 28

System Specifications

• Category
  • Cat. 5
• Mounting onto the PCB
  • THT/THR solder connection
• Number of poles
  • 4
• Number of solder pins per pole
  • 2
• Pitch in inches (P)
  • 0.138 inch
• Pitch in mm (P)
  • 3.5 mm
• Product family
  • OMNIMATE Signal - series LSF
• Protection degree
  • IP20
• Side termination, characteristic
  • closed side
• Solder eyelet hole diameter (D)
  • 1.1 mm
• Solder eyelet hole diameter tolerance (D)
  • + 0,1 mm
• Solder pin dimensions
  • 0.35 x 0.8 mm
• Solder pin length tolerance
  • 0 / -0.3 mm

Temperatures

• Continuous operating temp., max.
  • 120 °C
• Operating temperature, max.
  • 120 °C
• Operating temperature, min.
  • -50 °C
• Storage temperature, max.
  • 55 °C
• Storage temperature, min.
  • -25 °C
• Temperature range, installation, max.
  • 120 °C
• Temperature range, installation, min.
  • -30 °C
