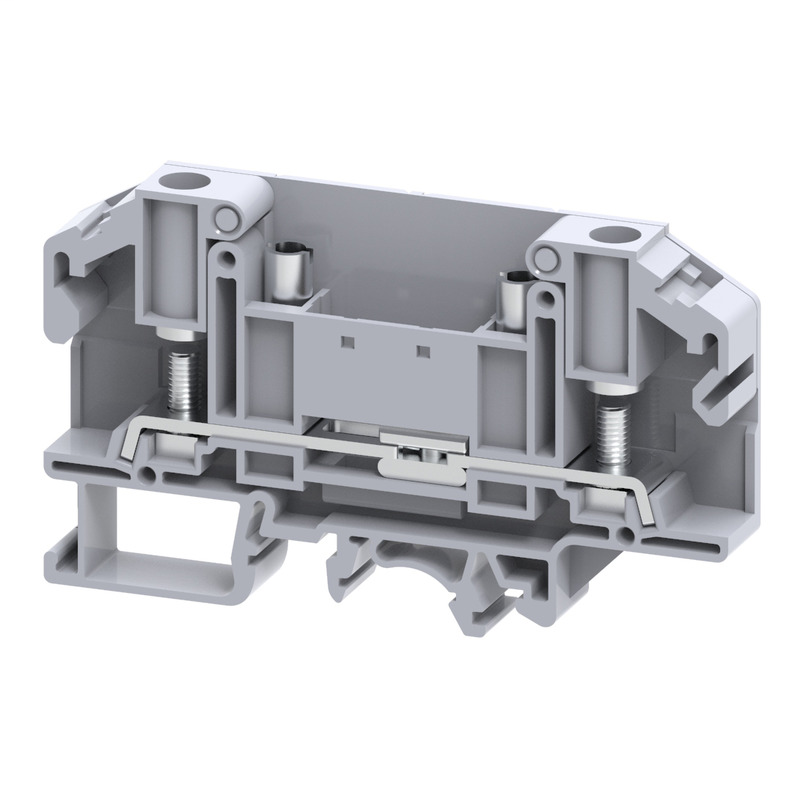

Weidmuller 2614980000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SDL 4
Weidmuller 2614980000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Open sides
- right
Approvals
- Approvals
- CCSAUS, cURus
- ROHS
- Conform
- UL File Number Search
- E60693
Classifications
- eClass 10.0
- 27-14-11-26
- eClass 9.0
- 27-14-11-26
- eClass 9.1
- 27-14-11-26
- ETIM 6.0
- EC000902
- ETIM 7.0
- EC000902
Conductors For Clamping (Rated Connection)
- Clamping range, bolted connection , max.
- 6 mm²
- Clamping range, bolted connection , min.
- 1.5 mm²
- Connection cross-section, stranded, max.
- 6 mm²
- Connection cross-section, stranded, min.
- 1.5 mm²
- Connection direction
- on side
- Number of connections
- 2
- Tightening torque, max.
- 1.2 Nm
- Tightening torque, min.
- 1.2 Nm
- Type of connection
- Threaded stud connection
- Wire connection cross section AWG, max.
- AWG 8
- Wire connection cross section AWG, min.
- AWG 22
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 6 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 1.5 mm²
- Wire connection cross-section, solid core, max.
- 6 mm²
- Wire connection cross-section, solid core, min.
- 1.5 mm²
Csa Rating Data
- Certificate number (cCSAus)
- 70198654
- Wire cross section max. (cCSAusX)
- 8 AWG
- Wire cross section min. (cCSAusX)
- 22 AWG
Dimensions And Weights
- Depth including DIN rail
- 52.2 mm
- Height
- 86 mm
- Height (inches)
- 3.386 inch
- Net weight
- 20.86 g
- Width
- 11 mm
- Width (inches)
- 0.433 inch
Disconnect Terminals
- Slitting
- sliding
Material Data
- Colour
- grey
- Material
- Polyamide
Rating Data
- Pollution severity
- 3
- Power loss in accordance with IEC 60947-7-x
- 1.31 W
- Rated cross-section
- 6 mm²
- Rated current
- 41 A
- Rated impulse withstand voltage
- 8 kV
- Rated voltage
- 1,000 V
- Volume resistance according to IEC 60947-7-x
- 0.78 mΩ
System Specifications
- End cover plate required
- Yes
- N-function
- No
- Number of clamping points per level
- 2
- Number of levels
- 1
- Number of potentials
- 1
- Number of potentials per tier
- 1
- PE connection
- No
- PE function
- No
- PEN function
- No
- Rail
- TS 32, TS 35
Temperatures
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
Ul Rating Data
- Certificate No. (cURus)
- E60693
