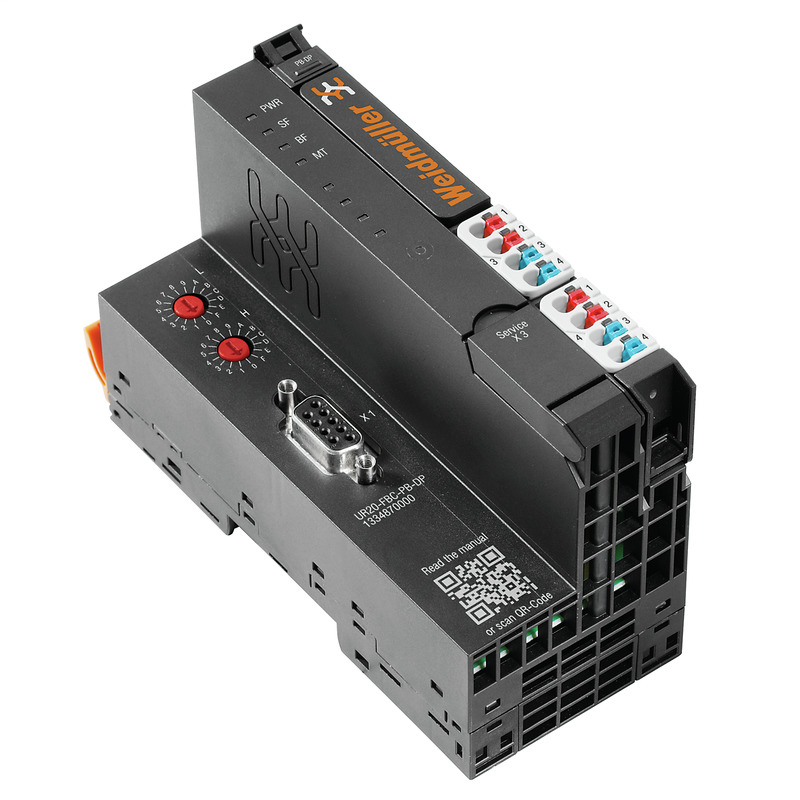

Weidmuller 2614380000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Remote I/O fieldbus coupler, IP20, PROFIBUS DP-V1UR20-FBC-PB-DP-V2
Weidmuller 2614380000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-24-26-07
- eClass 9.0
- 27-24-26-07
- eClass 9.1
- 27-24-26-08
- ETIM 6.0
- EC001603
- ETIM 7.0
- EC001603
Connection Data
- Type of connection
- PUSH IN
- Wire connection cross section, finely stranded, max.
- 1.5 mm²
- Wire connection cross-section, finely stranded, min.
- 0.14 mm²
- Wire cross-section, finely stranded, max. (AWG)
- AWG 16
- Wire cross-section, finely stranded, min. (AWG)
- AWG 26
- Wire cross-section, solid, max.
- 1.5 mm²
- Wire cross-section, solid, max. (AWG)
- AWG 16
- Wire cross-section, solid, min.
- 0.14 mm²
- Wire cross-section, solid, min. (AWG)
- AWG 26
Dimensions And Weights
- Depth
- 76 mm
- Depth (inches)
- 2.992 inch
- Height
- 120 mm
- Height (inches)
- 4.724 inch
- Mounting dimension - height
- 128 mm
- Net weight
- 247 g
- Width
- 52 mm
- Width (inches)
- 2.047 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Data
- Air humidity (operation)
- 10% to 95%, non-condensing as per DIN EN 61131-2
- Air humidity (storage)
- 10% to 95%, non-condensing as per DIN EN 61131-2
- Air humidity (transport)
- 10% to 95%, non-condensing as per DIN EN 61131-2
- Air pressure (operation)
- ≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2
- Air pressure (storage)
- 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
- Air pressure (transport)
- 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
- Pollution severity
- 2
- Shock
- 15 g over 11 ms, half sinus wave, acc. to IEC 60068-2-27
- Surge voltage category
- II
- Test voltage
- 500 V
- Vibration resistance
- 5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6, 8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6
Power Supply
- Current consumption from I
- 90 mA
- Feed current for I
- 10 A
- Feed current for the system, max.
- 4 A
- Supply voltage for outputs
- 24 V DC +20 %/ -15 %
- Supply voltage system and inputs
- 24 V DC +20 %/ -15 %
- Voltage supply
- 24 V DC +20 %/ -15 %, via the system bus
System Data
- Configuration interface
- Micro USB 2.0
- Connection type
- 9-pole SUB-D socket (female)
- Diagnostic data
- 244 Byte
- Field bus protocol
- PROFIBUS DP-V1
- Galvanic isolation
- Yes, between field and system bus
- Interface
- u-remote system bus
- max. number of modules
- 64 ST
- Module type
- Bus coupler
- Parameter data
- 244 Byte
- Process data
- 488 Byte
- Transmission speed of system bus, max.
- 48 Mbit
Temperatures
- Humidity
- 10…90 %, no condensation
- Operating temperature
- -20 °C ... +60 °C
- Operating temperature, max.
- 60 °C
- Operating temperature, min.
- -20 °C
- Storage temperature
- -40 °C ... +85 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
