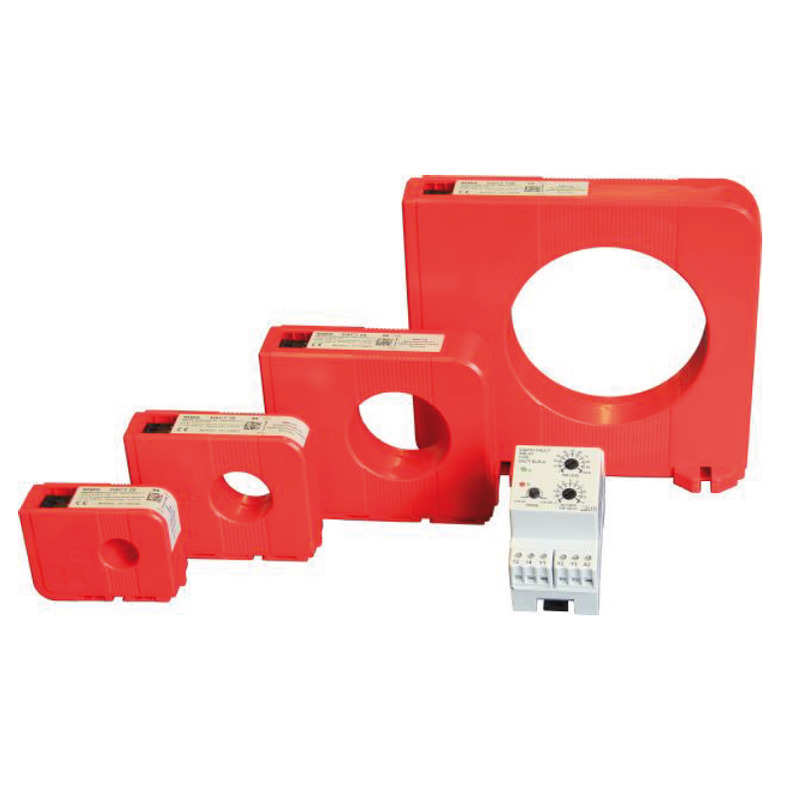

Weidmuller 2603430000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Primary current: 25 A, Round conductor: 35.00 mmCMA-RCM-DACT-35
Weidmuller 2603430000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-21-09-02
- eClass 9.0
- 27-21-09-02
- eClass 9.1
- 27-21-09-02
- ETIM 6.0
- EC002048
- ETIM 7.0
- EC002048
Dimensions And Weights
- Depth
- 30 mm
- Depth (inches)
- 1.181 inch
- Height
- 86.5 mm
- Height (inches)
- 3.406 inch
- Net weight
- 240 g
- Width
- 104 mm
- Width (inches)
- 4.094 inch
Dimensions Of Live Conductors
- Round conductor
- 35 mm
Electrical Attributes
- Primary current
- 25 A
- Secondary current
- 0....41. 7 mA
- Secondary current, min.
- 0.042 A
- Tolerance class
- 1
Input
- Input measurement range
- 0.02…2 A / 0.25…25 A depending on terminal assignment
Insulation Coordination
- Galvanic isolation
- yes
- Impulse withstand voltage
- 8 kV
- Pollution severity
- 3
- Rated voltage
- 800 V
- Standard
- EN 60044⁄1
Measuring Current Input
- Residual current measuring
- Yes
Technical Data
- Operating voltage U
- 800 V
Temperatures
- Operating temperature
- -10 °C...70 °C
- Operating temperature, max.
- 70 °C
- Operating temperature, min.
- -10 °C
- Storage temperature
- -25 °C...70 °C
- Storage temperature, max.
- 70 °C
- Storage temperature, min.
- -25 °C
