Description

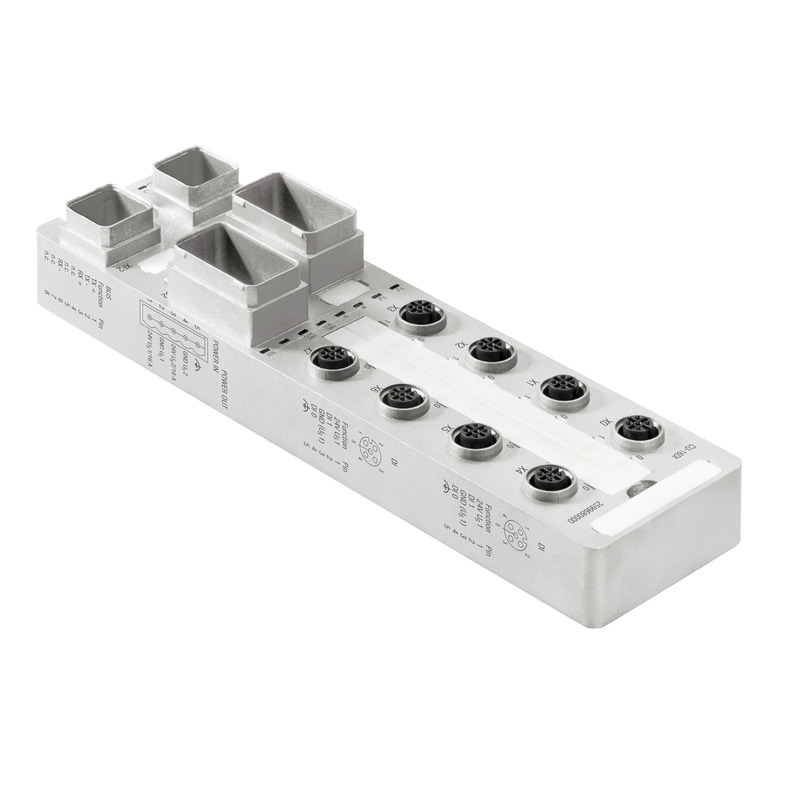

Automation Products - u-remote IP67, Sensor-actuator active distributor, PROFINET V2.3UR67-PN-V14-CU-8DIDO-12
Weidmuller 2599670000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CULUS
- ROHS
- Conform
- UL File Number Search
- E141197
Classifications
- eClass 10.0
- 27-24-26-02
- eClass 9.0
- 27-24-26-02
- eClass 9.1
- 27-24-26-02
- ETIM 6.0
- EC001597
- ETIM 7.0
- EC001597
Connections
- Fieldbus (BUS-IN)
- V14 PushPull RJ45
- Fieldbus (BUS-OUT)
- V14 PushPull RJ45
- I/O connections
- 8 x M12 socket 5-pole, A-coded
- Supply voltage (AUX-IN)
- PushPull-Power
- Supply voltage (AUX-OUT)
- PushPull-Power
Digital Inputs
- Input type
- P-switching, Type 2 in acc. with IEC 61131-2
- Input voltage, high
- > 11 V
- Input voltage, low
- < 5 V
- Number
- 8
- Protective circuit
- Constant current with thermal switch-off and automatic restart
- Sensor connection
- 2-wire, 3-wire + FE, M12, 5-pole
- Switch-off energy (inductive)
- < 150 mJ / channel
Digital Outputs
- max. current-carrying capacity per output signal
- 2 A
- Max. total current outputs
- 2 A per channel
- Short-circuit proof
- Yes
- Switching frequency, inductive load
- 0.2 Hz without free-wheeling diode, 500 Hz with suitable free-wheeling diode
- Switching frequency, lamp load
- 10 Hz
- Switching frequency, resistive load
- 500 Hz
Dimensions And Weights
- Height
- 43 mm
- Height (inches)
- 1.693 inch
- Length
- 225 mm
- Length (inches)
- 8.858 inch
- Net weight
- 1,900 g
- Weight
- 970 g
- Width
- 60 mm
- Width (inches)
- 2.362 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Data
- Housing main material
- Zinc diecast
- Protection degree
- IP67
- UL 94 flammability rating
- UL 94
Supply Voltage
- Limits
- 18 V DC ... 30 V DC
- Max. total current module
- 150 mA
- Operating voltage
- 24 V
- Reverse polarity protection
- Yes
System Data
- Fast Startup
- Yes
- Field bus protocol
- PROFINET
- Parameter data
- 16 Byte
Temperatures
- Operating temperature, max.
- 55 °C
- Operating temperature, min.
- -20 °C
