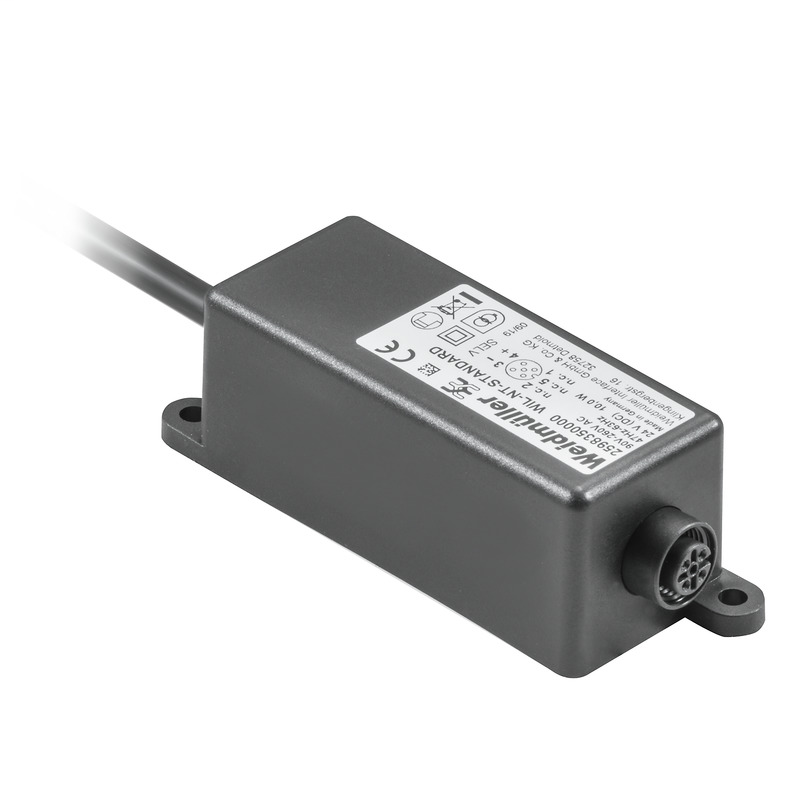

Weidmuller 2598350000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Weidmuller 2598350000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE
- ROHS
- Conform
Cable Technical Specifications
- Cable length
- 3 m
- Cable Material
- TPE
- Sheathing colour
- black
Classifications
- eClass 10.0
- 27-11-06-40
- eClass 9.0
- 27-11-06-40
- eClass 9.1
- 27-11-06-40
- ETIM 6.0
- EC001959
- ETIM 7.0
- EC001959
Dimensions And Weights
- Depth
- 34 mm
- Depth (inches)
- 1.339 inch
- Height
- 32 mm
- Height (inches)
- 1.26 inch
- Net weight
- 293 g
- Width
- 100 mm
- Width (inches)
- 3.937 inch
Electric Data
- Rated current
- 1,10 A
- Rated voltage (text)
- 24 V DC
General Technical Data
- Protection degree
- IP65 when locked
- Type of mounting
- Screw mounting
Material Data
- Housing main material
- PBT
- Threaded ring material
- Nickel-plated CuZn
Power Supply / Input
- AC input voltage range
- 85...264 V AC
- Circuitry
- Blue -, Black +
- Connecting thread
- without
- Connection system
- 2-wire
- Input frequency
- 47 - 63 Hz
- Input fuse (internal)
- Yes
- Version
- Cable end open
Power Supply / Output
- Circuitry
- PIN 3: - (blue), PIN 4: + (black)
- Connecting thread
- M12
- Connection system
- Screw connection
- Output current, max.
- 0.4 A
- Output power
- 10 W
- Rated output voltage
- 24 V DC
- Version
- Socket connector
Power Supply / Safety
- Overload protection
- Yes
- Protection against over-heating
- Yes
- Protection class
- II
- Safety extra-low voltage
- Yes
- Safety standard
- SELV according to EN 60950, EN 61347-2-13
- Short-circuit protection
- Yes
Temperatures
- Operating temperature
- -30 - 50°C
- Operating temperature, max.
- 50 °C
- Operating temperature, min.
- -30 °C
- Storage temperature, max.
- 80 °C
- Storage temperature, min.
- -40 °C
