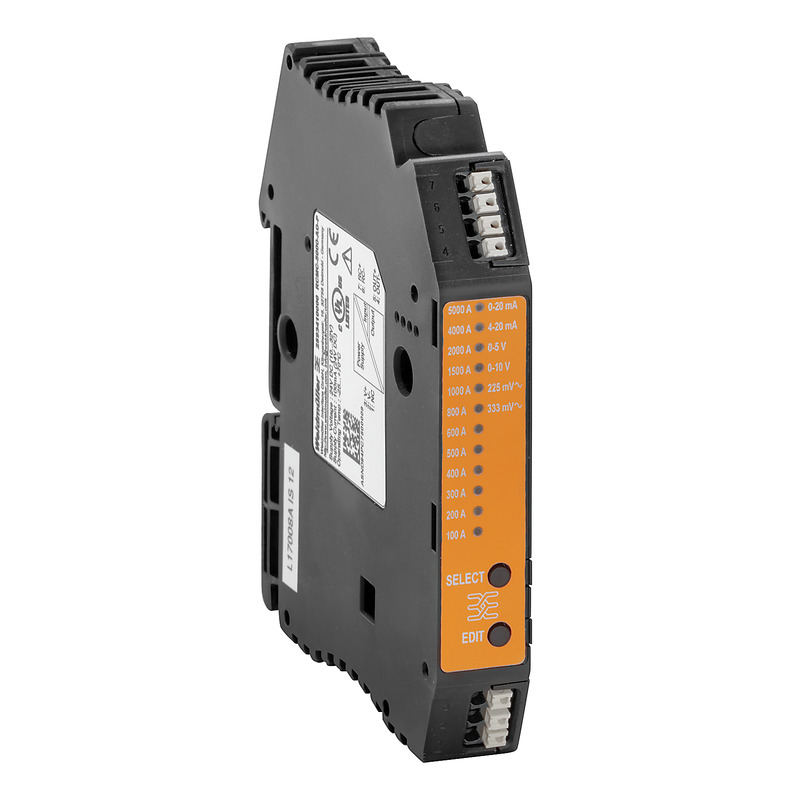

Weidmuller 2593410000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Measuring transducerRCMC-5000-AO-P
Weidmuller 2593410000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-21-01-20
- eClass 9.0
- 27-21-01-20
- eClass 9.1
- 27-21-01-20
- ETIM 6.0
- EC002653
- ETIM 7.0
- EC002653
Connection Data
- Type of connection
- PUSH IN
Dimensions And Weights
- Depth
- 78 mm
- Depth (inches)
- 3.071 inch
- Height
- 100 mm
- Height (inches)
- 3.937 inch
- Net weight
- 58 g
- Width
- 23.1 mm
- Width (inches)
- 0.909 inch
General Data
- Accuracy
- < 0.5 % of measuring range
- Configuration
- Keys and LED display
- Current consumption
- 200 mA typical
- Linearity
- ± 0.1 % typ.
- Standard
- IEC 61010-1: 2010, EN 61000-6-2:2005, EN 61000-6-3:2007/A1:2011, IEC 61010-2-030
- Temperature coefficient
- ≤ 0.015 % / °C
- Vibration
- according to IEC 60721, 3M1
- Voltage supply
- 24 V DC ± 25 %
Input
- Input measurement range
- 100 A, 200 A, 300 A, 400 A, 500 A, 600 A, 800 A, 1000 A, 1500 A, 2000 A, 4000 A, 5000 A
Insulation Coordination
- EMC standards
- UL 61010-1, EN 61326-1:2013
- Insulation voltage
- 1.5 kV AC 1 min.
- Pollution severity
- 2
- Standard
- IEC 61010-1: 2010, EN 61000-6-2:2005, EN 61000-6-3:2007/A1:2011, IEC 61010-2-030
Output
- load impedance current
- ≤ 500 Ω
- load impedance voltage
- ≥ 1 kΩ
- Output current
- 0...20 mA, 4...20 mA
- Output voltage, note
- 0…5 V DC, 0…10 V DC, 0…225 mV AC, 0…333 mV AC
Temperatures
- Humidity
- 5...95 %, no condensation
- Operating temperature
- -25 °C...70 °C
- Operating temperature, max.
- 70 °C
- Operating temperature, min.
- -25 °C
- Storage temperature
- -40 °C...85 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
