Weidmuller 2593390000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

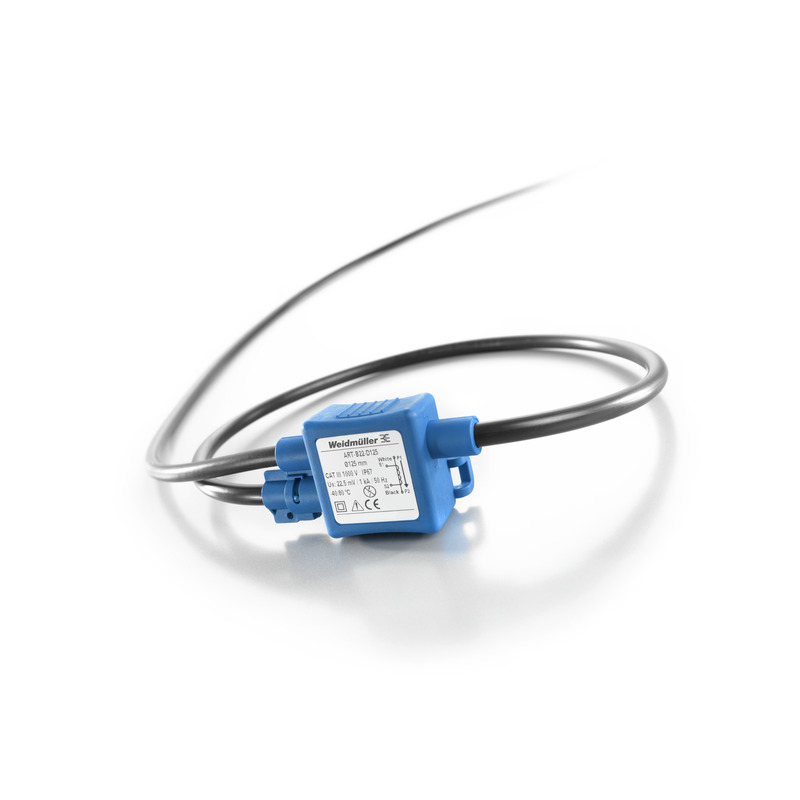

Rogowski coil, Diameter: 175 mm, Cable length: 1.5 mRCMA-B22-D175-1.5
Weidmuller 2593390000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- UL
- ROHS
- Conform
- UL File Number Search
- E469563
Classifications
- eClass 10.0
- 27-21-01-23
- eClass 9.0
- 27-21-01-23
- eClass 9.1
- 27-21-01-23
- ETIM 6.0
- EC002475
- ETIM 7.0
- EC002475
Dimensions And Weights
- Diameter
- 175 mm
- Net weight
- 16 g
Electrical Attributes
- Primary current
- 5,000 A
- Tolerance class
- 0,5
General Data
- Linearity
- no linearity error
- Standard
- IEC 61010-1: 2010, IEC 61869-1: 2007, IEC 61869-2: 2012, IEC 61869-6: 2016, IEC 61869-10: 2017, UL 61010-1
Insulation Coordination
- Clearance & creepage distances
- >16 mm
- Impulse withstand voltage
- 12.8 kV (1.2/50 ms)
- Insulation voltage
- 7.4 kVRMS(50 Hz, 1 min)
- Standard
- IEC 61010-1: 2010, IEC 61869-1: 2007, IEC 61869-2: 2012, IEC 61869-6: 2016, IEC 61869-10: 2017, UL 61010-1
Rated Data Ul
- Certificate No. (UL)
- E469563
Technical Properties
- Cable diameter
- 6.1 mm
- Cable length
- 1.5 m
- Coil resistance
- 105 Ω
Temperatures
- Humidity at operating temperature
- 5 - 90 %, no condensation
- Operating temperature
- -40 °C...80 °C
- Operating temperature, max.
- 80 °C
- Operating temperature, min.
- -40 °C
- Storage temperature
- -40 °C...80 °C
- Storage temperature, max.
- 80 °C
- Storage temperature, min.
- -40 °C
