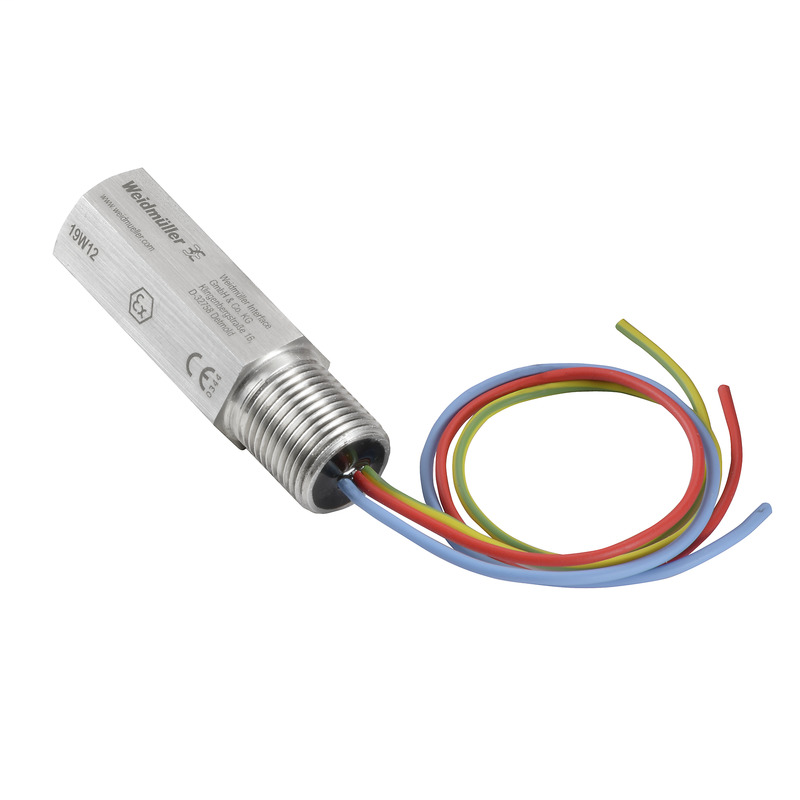

Weidmuller 2593140000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
VCG 24V EX 2 M20X1.5
Weidmuller 2593140000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- BASATEX, CE, IECEXBAS
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-13-08-07
- eClass 9.0
- 27-13-08-07
- eClass 9.1
- 27-13-08-07
- ETIM 6.0
- EC000943
- ETIM 7.0
- EC000943
Connection Data
- Cross-section
- 1 mm²
- Wire connection method
- Cable length: 250 mm (min.)
Dimensions And Weights
- Diameter
- 28 mm
- Height of lowest version
- 54 mm
- Length
- 78 mm
- Length (inches)
- 3.071 inch
- Net weight
- 180 g
- Width
- 24 mm
- Width (inches)
- 0.945 inch
General Data
- Colour
- silver
- Design
- straight, M20 x 1.5
- Protection degree
- IP67
- Segment
- Measurement - Monitoring - Setting
- Version
- Stainless steel screw mounting housing
Protection Ex - Data
- ATEX - dust labelling
- IEC Ex BAS 18.0085X, Ex ia IIIC T85 °C Da, (-30 °C≤Ta≤50 °C)
- ATEX - gas labelling
- 18ATEX0141X, II 1GD, Ex ia II T6 Ga, (-30 °C≤Ta≤50 °C)
- Input power, max. P
- 2 W
- Input voltage, max. U
- 50 V
- Internal capacity, max. C
- 0 nF
- Internal inductance, max. L
- 60 µH
Rated Data Iec / En
- Dielectric strength at FG against PE
- ≥ 500 V
- Discharge current I
- 5 kA
- Frequency range, max.
- 30 MHz
- Frequency range, min.
- 0 Hz
- Input voltage, max. U
- 50 V
- Insertion loss
- 30 MHz
- Lightning test current, I
- 1 kA
- Operating current, I
- 0.8 A
- Protection level U
- < 1300 V
- Protection level, U
- 44 V
- Rated current I
- 0.8 A
- Rated voltage (DC)
- 24 V
- Rated voltage (DC), max.
- 33 V
- Requirements category acc. to IEC 61643-21
- D1, C1, C2, C3
- Response time
- < 1 ns
- Standards
- IEC 61643-21, IEC 60079-0, IEC 60079-11
Temperatures
- Operating temperature
- -30 °C...60 °C
- Operating temperature, max.
- 60 °C
- Operating temperature, min.
- -30 °C
- Storage temperature
- -30 °C...60 °C
- Storage temperature, max.
- 60 °C
- Storage temperature, min.
- -30 °C
