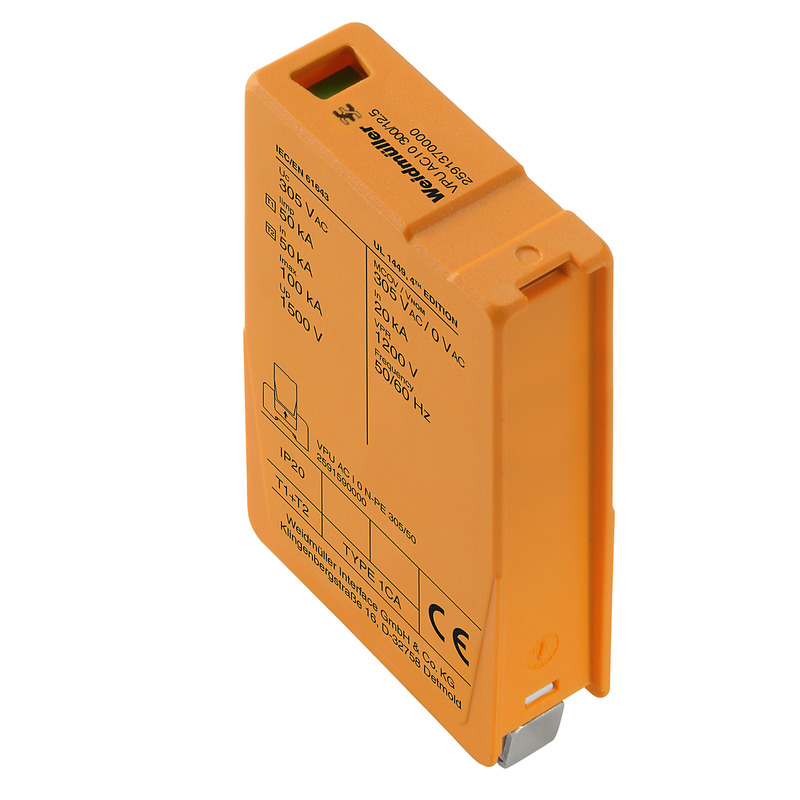

Weidmuller 2591370000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Spare arrester, Surge protection, UP(L/N-PE) ≤ 1.5 kVVPU AC I 0 300/12.5
Weidmuller 2591370000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, cURus, EAC, VDE
- ROHS
- Conform
- UL File Number Search
- E354261
Classifications
- eClass 10.0
- 27-13-08-05
- eClass 9.0
- 27-13-08-05
- eClass 9.1
- 27-13-08-05
- ETIM 6.0
- EC000941
- ETIM 7.0
- EC000941
- UNSPSC
- 30-21-19-22
Connection Data
- Type of connection
- Plug-in connection
Dimensions And Weights
- Depth
- 80 mm
- Depth (inches)
- 3.15 inch
- Height
- 45 mm
- Height (inches)
- 1.772 inch
- Net weight
- 117 g
- Width
- 18 mm
- Width (inches)
- 0.709 inch
General Data
- Altitude
- ≤ 4000 m
- Colour
- orange
- Optical function display
- green = OK; red = arrester is defective - replace
- Protection degree
- IP20 in installed state
- Segment
- Power distribution
- UL 94 flammability rating
- V-0
- Version
- Surge protection
Rated Data Iec / En
- Discharge current I
- 20 kA
- Frequency range, max.
- 60 Hz
- Frequency range, min.
- 50 Hz
- Fuse
- 315 gG @25 kA Isccr, 250 gG @50 kA Isccr
- Leakage current at U
- 0.6 mA
- Lightning test current I
- 12.5 kA
- Max. continuous voltage, Uc (AC)
- 300 V
- Number of poles
- 1
- Protection level U
- ≤ 1.5 kV
- Rated voltage (AC)
- 230 V
- Requirements category acc. to IEC 61643-11
- Type I, Type II
- Requirements class, acc. to EN 61643-11
- T1, T2
- Response time
- ≤ 25 ns
- Standards
- IEC61643-11, EN61643-11
- Voltage type
- AC
Rated Data Ul
- Category
- SPD TYPE 1CA
- Certificate No. (cURus)
- E354261
- I
- 20 kA
- MCOV (L/N-PE)
- 300 Vac
- Rated Voltage U
- 240 V
- SCCR
- 150 kA
- Voltage type
- AC
- VPR (L/N-PE)
- 900 V
Temperatures
- Humidity
- 5 - 95% rel. humidity
- Operating temperature
- -40 °C...85 °C
- Operating temperature, max.
- 85 °C
- Operating temperature, min.
- -40 °C
- Storage temperature
- -40 °C...85 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
