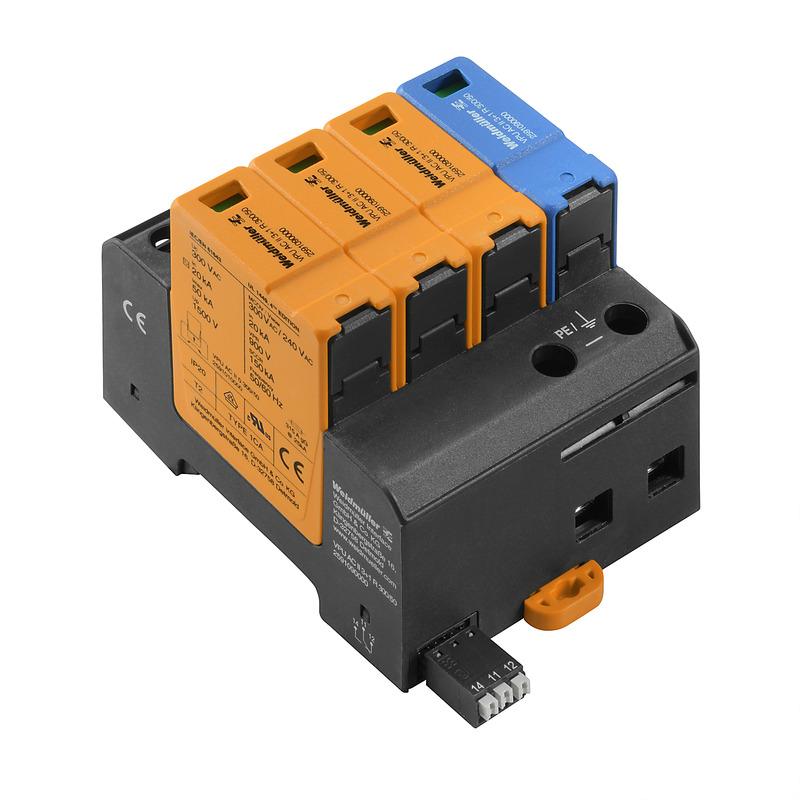

Weidmuller 2591090000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Surge voltage arrester, Low voltage, Surge protection, with remote contact, TN-C-S, TN-S, UP(L/N-PE) ≤ 1.5 kVVPU AC II 3+1 R 300/50
Weidmuller 2591090000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, cURus, EAC, VDE
- ROHS
- Conform
- UL File Number Search
- E354261
Classifications
- eClass 10.0
- 27-13-08-05
- eClass 9.0
- 27-13-08-05
- eClass 9.1
- 27-13-08-05
- ETIM 6.0
- EC000941
- ETIM 7.0
- EC000941
- UNSPSC
- 30-21-19-21
Connection Data
- Clamping range, max.
- 35 mm²
- Clamping range, min.
- 4 mm²
- Clamping range, rated connection
- 16 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), max.
- 35 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), min.
- 2.5 mm²
- Connection cross-section, stranded, max.
- 35 mm²
- Connection cross-section, stranded, min.
- 2.5 mm²
- Stripping length, rated connection
- 15 mm
- Tightening torque, max.
- 4.5 Nm
- Tightening torque, min.
- 2 Nm
- Type of connection
- Screw connection
- Wire connection cross section, finely stranded, max.
- 35 mm²
- Wire connection cross-section, finely stranded, min.
- 4 mm²
- Wire connection method
- Screw connection
- Wire cross-section, solid, max.
- 35 mm²
- Wire cross-section, solid, min.
- 2.5 mm²
Connection Data, Remote Alert
- Connection type
- PUSH IN
- Cross-section for connected wire, solid core, max.
- 1.5 mm²
- Cross-section for connected wire, solid core, min.
- 0.14 mm²
- Stripping length
- 8 mm
Dimensions And Weights
- Depth
- 68 mm
- Depth (inches)
- 2.677 inch
- Depth including DIN rail
- 76 mm
- Height
- 95 mm
- Height (inches)
- 3.74 inch
- Net weight
- 488 g
- Width
- 72 mm
- Width (inches)
- 2.835 inch
General Data
- Altitude
- ≤ 4000 m
- Colour
- black, orange, blue
- Design
- Installation housing; 4TE, Insta IP 20
- Optical function display
- green = OK; red = arrester is defective - replace
- Protection degree
- IP20 in installed state
- Rail
- TS 35
- Segment
- Power distribution
- UL 94 flammability rating
- V-0
- Version
- Surge protection, with remote contact
Insulation Coordination Acc. To En 50178
- Pollution severity
- 2
- Surge voltage category
- III
Rated Data Iec / En
- Discharge current I
- 20 kA
- Energy coordination (≤10 m)
- Type II, Type III
- Follow-on current extinguishing capability I
- Follow current need not be taken into account
- Frequency range, max.
- 60 Hz
- Frequency range, min.
- 50 Hz
- Fuse
- 250 gG @50 kA Isccr, 315 gG @25 kA Isccr
- Leakage current at U
- 1 µA
- Low voltage network
- TN-C-S, TN-S
- Max. continuous voltage, Uc (AC)
- 300 V
- Max. continuous voltage, Uc (N-PE)
- 305 V
- Number of poles
- 4
- Protection level U
- ≤ 1.5 kV
- Rated voltage (AC)
- 230 V
- Requirements category acc. to IEC 61643-11
- Type II
- Requirements class, acc. to EN 61643-11
- T2
- Response time
- ≤ 25 ns, ≤ 100 ns
- Short-circuit current rating I
- 50 kA
- Signalling contact
- 250 V 1A 1CO
- SPD type
- T2
- Standards
- IEC61643-11, EN61643-11
- Temporary surge voltage (over-voltage) - TOV
- 337 V
- Voltage type
- AC
Rated Data Ul
- Category
- SPD TYPE 1CA
- Certificate No. (cURus)
- E354261
- I
- 20 kA
- MCOV (L/N-PE)
- 600 Vac
- MCOV (N-PE)
- 305 V
- Rated Voltage U
- 240 V
- SCCR
- 150 kA
- Voltage type
- AC
- VPR (L/N-PE)
- 900 V
- VPR (N-PE)
- 1,000 V
Temperatures
- Humidity
- 5 - 95% rel. humidity
- Operating temperature
- -40 °C...85 °C
- Operating temperature, max.
- 85 °C
- Operating temperature, min.
- -40 °C
- Storage temperature
- -40 °C...85 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
