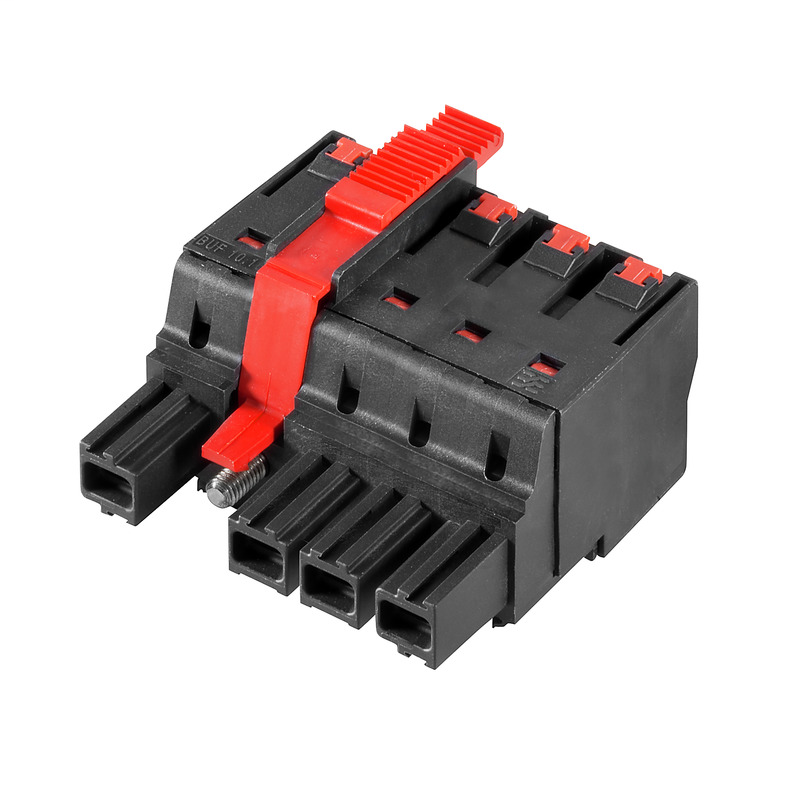

Weidmuller 2586840000

Classifications

• eClass 10.0
  • 27-44-04-02
• eClass 9.0
  • 27-44-04-02
• eClass 9.1
  • 27-44-04-02
• ETIM 6.0
  • EC002637
• ETIM 7.0
  • EC002637

Conductors Suitable For Connection

• Clamping range, max.
  • 16 mm²
• Clamping range, min.
  • 2.5 mm²
• Flexible, max. H05(07) V-K
  • 16 mm²
• Flexible, min. H05(07) V-K
  • 2.5 mm²
• Max. clamping range
  • 16 mm²
• Solid, max. H05(07) V-U
  • 10 mm²
• Solid, min. H05(07) V-U
  • 2.5 mm²
• Stranded, max. H07V-R
  • 16 mm²
• Stranded, min. H07V-R
  • 10 mm²
• Wire connection cross section AWG, max.
  • AWG 4
• Wire connection cross section AWG, min.
  • AWG 12
• w. plastic collar ferrule, DIN 46228 pt 4, max.
  • 16 mm²
• w. plastic collar ferrule, DIN 46228 pt 4, min.
  • 2.5 mm²
• w. wire end ferrule, DIN 46228 pt 1, max.
  • 16 mm²
• w. wire end ferrule, DIN 46228 pt 1, min.
  • 2.5 mm²

Dimensions And Weights

• Net weight
  • 0 g

Material Data

• Colour
  • black
• Colour chart (similar)
  • RAL 9011
• Colour of operational elements
  • red, grey
• Comparative Tracking Index (CTI)
  • ≥ 400
• Contact material
  • Copper alloy
• GWFI
  • 960 °C
• Insulating material
  • PA GF
• Insulating material group
  • II
• Insulation strength
  • ≥ 108 Ω
• Layer structure of plug contact
  • 3- µm Ag
• Material of operational elements
  • PA 66/6, PBT
• Max. relative humidity during storage
  • 80 %
• Operating temperature, max.
  • 120 °C
• Operating temperature, min.
  • -50 °C
• Storage temperature, max.
  • 55 °C
• Storage temperature, min.
  • -25 °C
• UL 94 flammability rating
  • V-0

Notes

• IPC conformity
  • Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
• Notes
  • Additional colours on request Rated current related to rated cross-section & min. No. of poles. Wire end ferrule with plastic collar to DIN 46228/4 Wire end ferrule without plastic collar to DIN 46228/1 P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. For all applications with flange we recommend to fix the pin header with the help of the soldering flange or a self-tapping screw on the board.

Packing

• Packaging
  • Box
• VPE height
  • 0
• VPE length
  • 0
• VPE width
  • 0

Rated Data Acc. To Iec

• Rated current, max. number of poles (Tu=20°C)
  • 71 A
• Rated current, max. number of poles (Tu=40°C)
  • 62 A
• Rated current, min. number of poles (Tu=20°C)
  • 76 A
• Rated current, min. number of poles (Tu=40°C)
  • 70 A
• Rated impulse voltage for surge voltage class/ contamination degree III/3
  • 8 kV
• Rated impulse voltage for surge voltage class/ pollution degree II/2
  • 8 kV
• Rated impulse voltage for surge voltage class/ pollution degree III/2
  • 8 kV
• Rated voltage for surge voltage class / pollution degree II/2
  • 1,000 V
• Rated voltage for surge voltage class / pollution degree III/2
  • 1,000 V
• Rated voltage for surge voltage class / pollution degree III/3
  • 1,000 V
• Short-time withstand current resistance
  • 3 x 1s with 800A

System Parameters

• Actuating force actuating element, max.
  • 120 N
• Can be coded
  • Yes
• Conductor outlet direction
  • 180°
• L1 in inches
  • 2.4 inch
• L1 in mm
  • 60.96 mm
• Number of poles
  • 6
• Pin series quantity
  • 1
• Pitch in inches (P)
  • 0.4 inch
• Pitch in mm (P)
  • 10.16 mm
• Plugging cycles
  • ≤ 50
• Plugging force/pole, max.
  • 15 N
• Product family
  • OMNIMATE Power - series BU/SU 10.16
• Pulling force/pole, max.
  • 15 N
• Rated cross-section
  • 16 mm²
• Screwdriver blade
  • 0.8 x 4.0
• Screwdriver blade standard
  • DIN 5264
• Stripping length
  • 18 mm
• Tightening torque for screw flange, max.
  • 0.4 Nm
• Tightening torque for screw flange, min.
  • 0.3 Nm
• Touch-safe protection acc. to DIN VDE 0470
  • IP 20
• Touch-safe protection acc. to DIN VDE 57 106
  • Safe from finger touch
• Type of connection
  • Field connection
• Wire connection method
  • PUSH IN with actuator
