Weidmuller 2584980000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

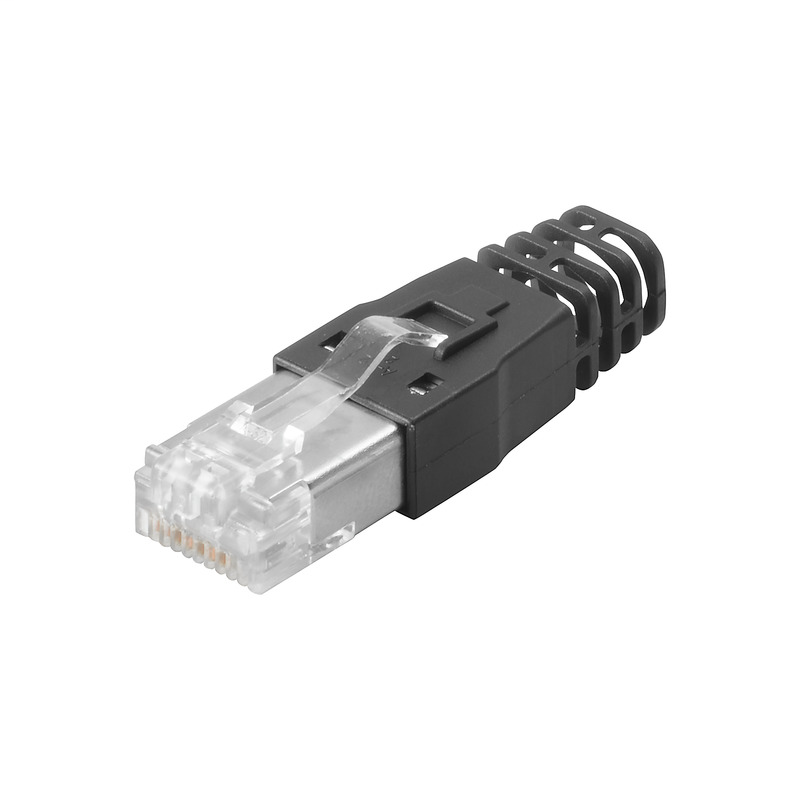

RJ45 crimp plug, with kink protection; 6.5 - 7.5 mm, Cat.6A / Class EA (ISO/IEC 11801 2010)IE-PS-RJ45-TH-BK-P
Weidmuller 2584980000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-44-03-90
- eClass 9.0
- 27-44-03-90
- eClass 9.1
- 27-44-03-90
- ETIM 6.0
- EC001121
- ETIM 7.0
- EC001121
Dimensions And Weights
- Net weight
- 4.5 g
Electrical Properties
- Contact resistance
- ≤ 10 mΩ
- Dielectric strength, contact / contact
- 1000 V AC
- Insulation strength
- 500 MΩ
- PoE / PoE+
- conforming to IEEE 802.3at
- Rated current
- 1.5 A
- Rated voltage
- 150 V AC
General Data
- Bending protection sleeve material
- Polyamide PA6, UL 94-V0
- Category
- Cat.6A / Class EA (ISO/IEC 11801 2010)
- Colour
- Miscellaneous
- Conductor connection cross-section, flexible
- ..0.35 mm²
- Conductor connection cross-section, flexible (AWG)
- AWG 22
- Conductor connection cross-section, solid
- ..0.32 mm²
- Conductor connection cross-section, solid (AWG)
- AWG 22/1
- Connection 1
- Crimp
- Connection 2
- RJ45
- Contact material
- Copper alloy
- Contact surface
- nickel-plated, selectively gold-plated
- Description of article
- with kink protection; 6.5 - 7.5 mm
- Housing main material
- Polycarbonate PC, UL 94: V-0
- Insulation cross-section, max.
- 1.6 mm
- Insulation cross-section, min.
- 1.3 mm
- Plugging cycles
- 750
- Protection degree
- IP20
- Sheath diameter, max.
- 7.5 mm
- Shielding
- 360° all-round enclosure
- Wire connection cross section, finely stranded, max.
- 0.355 mm²
- Wire cross-section, solid, max.
- 0.324 mm²
- Wiring
- PROFINET
Standards
- Connector standard
- IEC 60603-7
Temperatures
- Operating temperature
- -40 °C...70 °C
- Operating temperature, max.
- 70 °C
- Operating temperature, min.
- -40 °C
- Storage temperature
- -40 °C...70 °C
- Storage temperature, max.
- 70 °C
- Storage temperature, min.
- -40 °C
