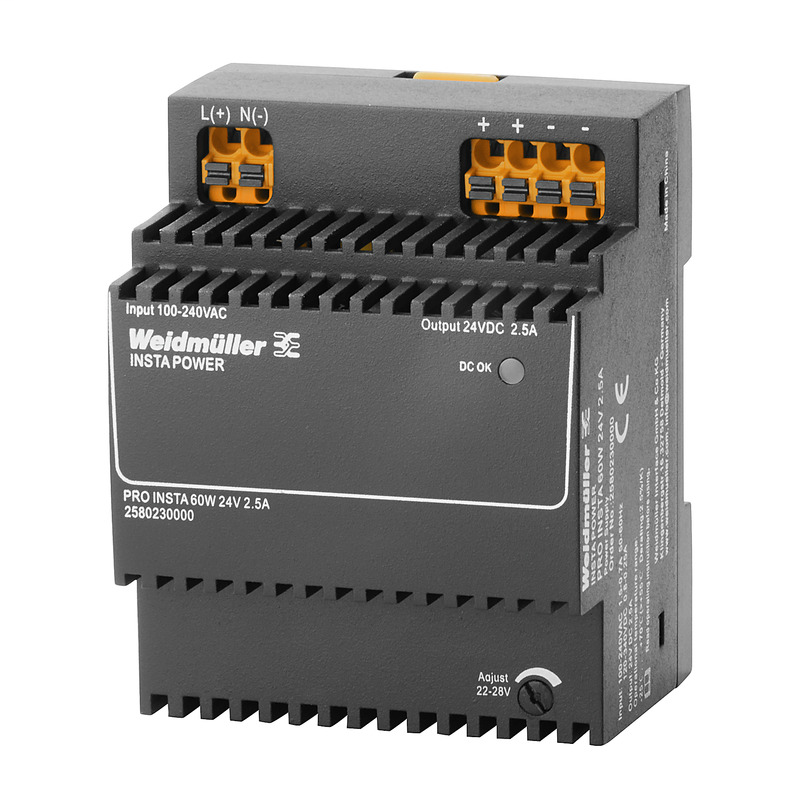

Weidmuller 2580230000

Approvals

• Approvals
  • CCSAUS, TUEV
• ROHS
  • Conform

Classifications

• eClass 10.0
  • 27-04-07-01
• eClass 9.0
  • 27-04-07-01
• eClass 9.1
  • 27-04-07-01
• ETIM 6.0
  • EC002540
• ETIM 7.0
  • EC002540

Connection Data (Input)

• Conductor cross-section, AWG/kcmil , max.
  • 12
• Conductor cross-section, AWG/kcmil , min.
  • 24
• Conductor cross-section, flexible , min.
  • 0.25 mm²
• Conductor cross-section, rigid , max.
  • 2.5 mm²
• Conductor cross-section, rigid , min.
  • 0.25 mm²
• Connection system
  • PUSH IN
• Number of terminals
  • 2 (L,N)
• Wire connection cross section, flexible (input), max.
  • 2.5 mm²

Connection Data (Output)

• Conductor cross-section, AWG/kcmil , max.
  • 12
• Conductor cross-section, AWG/kcmil , min.
  • 24
• Conductor cross-section, flexible , max.
  • 2.5 mm²
• Conductor cross-section, flexible , min.
  • 0.25 mm²
• Conductor cross-section, rigid , max.
  • 2.5 mm²
• Conductor cross-section, rigid , min.
  • 0.25 mm²
• Connection system
  • PUSH IN
• Number of terminals
  • 4 (++ / --)

Dimensions And Weights

• Depth
  • 60 mm
• Depth (inches)
  • 2.362 inch
• Height
  • 90 mm
• Height (inches)
  • 3.543 inch
• Net weight
  • 258 g
• Width
  • 72 mm
• Width (inches)
  • 2.835 inch

Electrical Safety (Applied Standards)

• Electrical machine equipment
  • Acc. to EN60204
• For use with electronic equipment
  • Acc. to EN50178 / VDE0160
• Protection against dangerous shock currents
  • Acc. to VDE0106-101
• Protective separation / protection against electrical shock
  • VDE0100-410 / acc. to DIN57100-410
• Safety transformers for switch-mode power supplies
  • According to EN 61558-2-16

Emc / Shock / Vibration

• Interference immunity test acc. to
  • EN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)|EN 61000-4-4 (burst)|EN 61000-4-5 (surge)|EN 61000-4-6 (conducted)|EN 61000-4-11 (dips), EN 61000-4-11 (Dips)
• Limiting of mains voltage harmonic currents
  • EN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)|EN 61000-4-4 (burst)|EN 61000-4-5 (surge)|EN 61000-4-6 (conducted)|EN 61000-4-11 (dips), EN 61000-4-11 (Dips)
• Noise emission in accordance with EN55032
  • Class B
• Shock resistance IEC 60068-2-27
  • 15 g In all directions
• Vibration resistance IEC 60068-2-6
  • 2.3 g

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

General Data

• Degree of efficiency
  • 89%
• Housing version
  • Plastic, protective insulation
• Mounting position, installation notice
  • Horizontal on DIN rail TS 35, top and bottom 50 mm clearance for free air flow, 10 mm clearance to neighbouring active subassemblies with full load, 5 mm with passive neighbouring subassemblies, direct row mounting with 90% rated load
• MTBF
  • > 750.000 h nach IEC 61709 (SN29500)
• Operating temperature
  • -25 °C...70 °C
• Power loss, idling
  • 0.44 W
• Power loss, nominal load
  • 6.6 W
• Protection against reverse voltages from the load
  • 30…35 V DC
• Protection degree
  • IP20

Input

• AC current consumption
  • 0.7 A @ 230 V AC / 1.5 A @ 100 V AC
• AC input voltage range
  • 85...264 V AC (derating at 100 V AC)
• Connection system
  • PUSH IN
• DC current consumption
  • 0.25 A @ 370 V DC / 0.8 A @ 120 V DC
• DC input voltage range
  • 95…370 V DC
• Frequency range AC
  • 45…65 Hz
• Input fuse (internal)
  • Yes
• Inrush current
  • max. 40 A
• Rated input voltage
  • 100 - 240 V AC / 120 - 340 V DC
• Recommended back-up fuse
  • 2 A / DI, safety fuse6 A, Char. B, circuit breaker2...4 A, Char. C circuit breaker

Insulation Coordination

• Insulation voltage input / earth
  • 3.5 kV
• Insulation voltage, input/output
  • 4 kV
• Insulation voltage output / earth
  • 0.5 kV
• Pollution severity
  • 2
• Protection class
  • II

Output

• Capacitive load
  • unrestricted
• Connection system
  • PUSH IN
• Continous output current @ U
  • 2.5 A @ 55 °C, 1.56 A @ 70 °C
• Nominal output current for U
  • 2.5 A @ 55 °C
• Output voltage
  • 22...28 V (adjustable via potentiometer on front)
• Ramp-up time
  • ≤ 100 ms
• Rated output voltage
  • 24 V DC ± 1 %
• Residual ripple, breaking spikes
  • < 50 mVss @ UNenn, Full Load

Signalling

• LED green
  • Operating voltage OK

Temperatures

• Operating temperature
  • -25 °C...70 °C
• Operating temperature, max.
  • 70 °C
• Operating temperature, min.
  • -25 °C
• Storage temperature
  • -40 °C...85 °C
• Storage temperature, max.
  • 85 °C
• Storage temperature, min.
  • -40 °C
