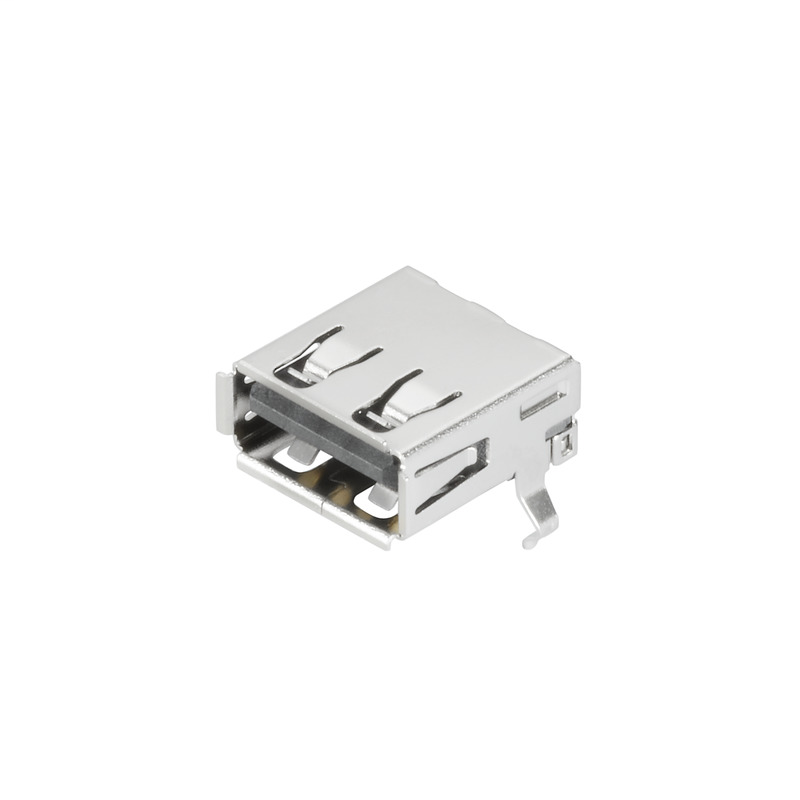

Weidmuller 2563710000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
PCB plug-in connector, USB jacks, THT solder connection, 2.00 mm, Number of poles: 4, 90°, Solder pin length (l): 2.84 mm, Gold over nickel, black, Tray (manual assembly)USB2.0A T1H 2.5N4 TY BK
Weidmuller 2563710000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- UL
- ROHS
- Conform
- UL File Number Search
- E471884
Classifications
- eClass 10.0
- 27-44-04-02
- eClass 9.0
- 27-44-04-02
- eClass 9.1
- 27-44-04-02
- ETIM 6.0
- EC002637
- ETIM 7.0
- EC002637
Dimensions And Weights
- Depth
- 14 mm
- Depth (inches)
- 0.551 inch
- Height
- 9.74 mm
- Height (inches)
- 0.383 inch
- Height of lowest version
- 6.9 mm
- Net weight
- 0.001 g
- Width
- 14.5 mm
- Width (inches)
- 0.571 inch
Electrical Properties
- Dielectric strength, contact / contact
- 500 V AC
- Insulation strength
- ≥ 1000 MΩ
- Rated current
- 1.5 A at 250 V AC
- Rated voltage
- 30 V
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Material Data
- Colour
- black
- Colour chart (similar)
- RAL 9011
- Comparative Tracking Index (CTI)
- ≥ 500
- Contact base material
- Phosphorus bronze
- Contact surface
- Gold over nickel
- Insulating material
- PBT
- Insulating material group
- II
- Insulation strength
- ≥ 1000 MΩ
- Layer structure of plug contact
- 30-80 µ" Ni / 30- µ" Au
- Operating temperature, max.
- 60 °C
- Operating temperature, min.
- -20 °C
- Storage temperature, max.
- 60 °C
- Storage temperature, min.
- -20 °C
- UL 94 flammability rating
- V-0
Packing
- Packaging
- Tray (manual assembly)
- VPE height
- 0 m
- VPE length
- 0 m
- VPE width
- 0 m
System Specifications
- LED
- No
- Mounting onto the PCB
- THT solder connection
- Number of poles
- 4
- Number of solder pins per pole
- 1
- Outgoing elbow
- 90°
- Pitch in mm (P)
- 2 mm
- Plugging cycles
- ≥ 1500
- Plugging force/pole, max.
- 35 N
- Product family
- OMNIMATE Data - USB jacks
- Protection degree
- IP20
- Pulling force/pole, max.
- 10 N
- Shielding
- Yes
- Shielding material
- Brass
- Shield surface
- nickel-plated
- Shield tabs
- none
- Solder pin length (l)
- 2.84 mm
- Transmission rate
- 480 Mbps
- Type of connection
- Socket connector
Temperatures
- Operating temperature, max.
- 60 °C
- Operating temperature, min.
- -20 °C
- Storage temperature, max.
- 60 °C
- Storage temperature, min.
- -20 °C
