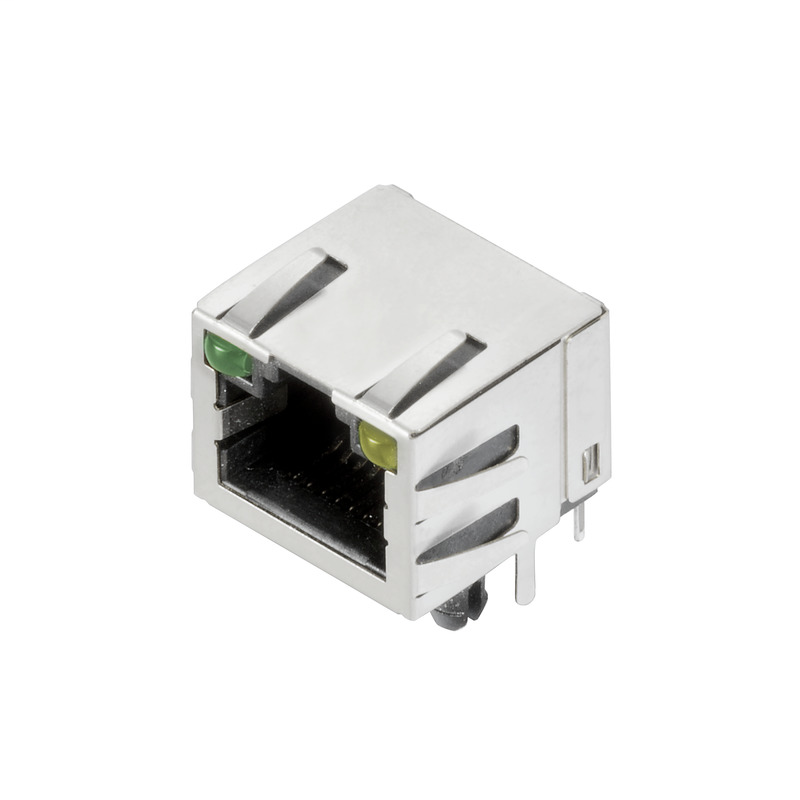

Weidmuller 2562880000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
PCB plug-in connector, RJ45 jacks, Cat. 5 , THT solder connection, 90°, Latch option: top, Shield tabs: 6 tabs, 30-80 µ" Ni / 30- µ" Au , LED: Yes, green, yellow, Number of poles: 12, Tray (manual assembly)RJ45C5 T1U 2.8E4G/Y TY
Weidmuller 2562880000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- cURus
- ROHS
- Conform
- UL File Number Search
- E471884
Classifications
- eClass 10.0
- 27-44-04-02
- eClass 9.0
- 27-44-04-02
- eClass 9.1
- 27-44-04-02
- ETIM 6.0
- EC002637
- ETIM 7.0
- EC002637
Dimensions And Weights
- Depth
- 15.7 mm
- Depth (inches)
- 0.618 inch
- Height
- 16.74 mm
- Height (inches)
- 0.659 inch
- Height of lowest version
- 13.44 mm
- Net weight
- 6.186 g
- Width
- 16.4 mm
- Width (inches)
- 0.646 inch
Electrical Properties
- Dielectric strength, contact / contact
- 1000 V AC
- Insulation strength
- 1000 MΩ at 500 V DC
- Rated current
- 1.5 A
- Rated voltage
- 125 V AC
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Material Data
- Colour
- black
- Colour chart (similar)
- RAL 9011
- Comparative Tracking Index (CTI)
- ≥ 500
- Contact base material
- Phosphorus bronze
- Contact surface
- Gold over nickel
- Insulating material
- PA 66
- Insulating material group
- II
- Insulation strength
- 1000 MΩ at 500 V DC
- Layer structure of plug contact
- 30-80 µ" Ni / 30- µ" Au
- Operating temperature, max.
- 85 °C
- Operating temperature, min.
- -40 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
- UL 94 flammability rating
- V-0
Packing
- Packaging
- Tray (manual assembly)
- VPE height
- 0 m
- VPE length
- 0 m
- VPE width
- 0 m
System Specifications
- Category
- Cat. 5
- Colour of left LED
- green
- Colour of right LED
- yellow
- Latch option
- top
- LED
- Yes
- Mounting onto the PCB
- THT solder connection
- Number of poles
- 12
- Number of solder pins per pole
- 1
- Outgoing elbow
- 90°
- Pitch in inches (P)
- 0.05 inch
- Pitch in mm (P)
- 1.27 mm
- Plugging cycles
- ≥ 1500
- Product family
- OMNIMATE Data - RJ45 jacks
- Protection degree
- IP20
- Shielding
- Yes
- Shielding material
- Brass
- Shield surface
- nickel-plated
- Shield tabs
- 6 tabs
- Solder eyelet hole diameter (D)
- 0.9 mm
- Solder eyelet hole diameter tolerance (D)
- ± 0.1 mm
- Solder pin length (l)
- 2.75 mm
- Solder pin length tolerance
- +0.2 / -0.2 mm
- Type of connection
- Socket connector
- Wiring
- 8-core
Temperatures
- Operating temperature, max.
- 85 °C
- Operating temperature, min.
- -40 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
