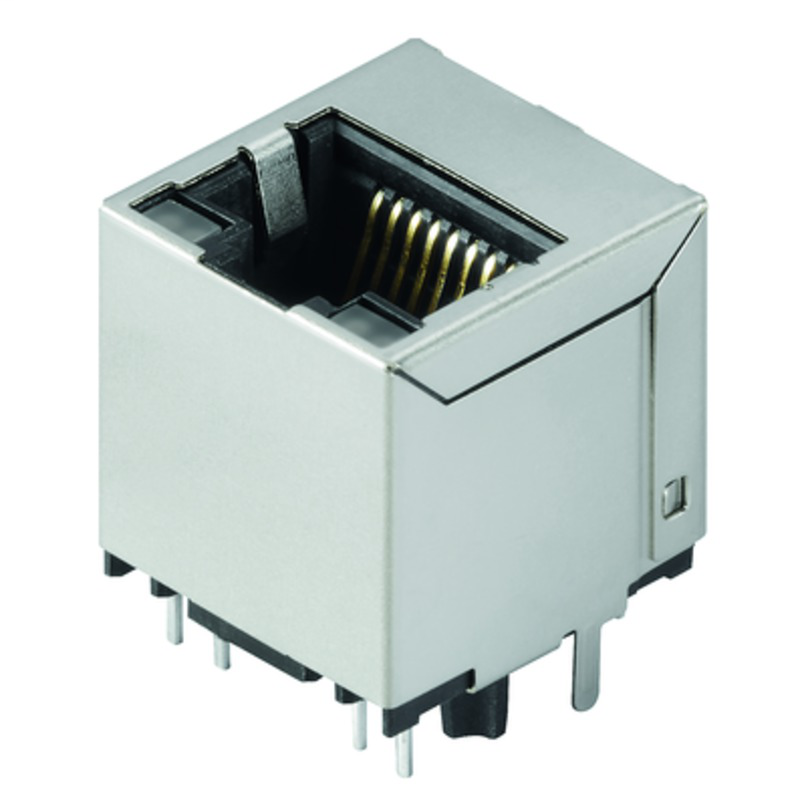

Weidmuller 2562170000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
PCB plug-in connector, RJ45 jacks transformer, 1000 Mbps , THT/THR solder connection, 180°, Shield tabs: none, 30-80 µ" Ni / 30- µ" Au , LED: Yes, Green/yellow, Number of poles: 10, Tray (manual assembly)RJ45G R1V 1.9N4YG/YG TY
Weidmuller 2562170000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- cURus
- ROHS
- Conform
- UL File Number Search
- E471884
Classifications
- eClass 10.0
- 27-44-04-02
- eClass 9.0
- 27-44-04-02
- eClass 9.1
- 27-44-04-02
- ETIM 6.0
- EC002637
- ETIM 7.0
- EC002637
Dimensions And Weights
- Depth
- 16.8 mm
- Depth (inches)
- 0.661 inch
- Height
- 18.9 mm
- Height (inches)
- 0.744 inch
- Height of lowest version
- 17 mm
- Net weight
- 7 g
- Width
- 16 mm
- Width (inches)
- 0.63 inch
Electrical Properties
- Dielectric strength, contact / contact
- 1000 V DC
- Dielectric strength, contact / shield
- 1500 V DC
- Insulation strength
- > 500 MΩ
- Rated current
- 1.5 A
- Rated voltage
- 125 V AC
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Material Data
- Colour
- black
- Colour chart (similar)
- RAL 9011
- Comparative Tracking Index (CTI)
- ≥ 500
- Contact base material
- Phosphorus bronze
- Contact surface
- Gold over nickel
- Insulating material
- PA 9T
- Insulating material group
- II
- Insulation strength
- > 500 MΩ
- Layer structure of plug contact
- 30-80 µ" Ni / 30- µ" Au
- Moisture Level (MSL)
- 1
- Operating temperature, max.
- 85 °C
- Operating temperature, min.
- -40 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
- UL 94 flammability rating
- V-0
Packing
- Packaging
- Tray (manual assembly)
- VPE height
- 0.065 m
- VPE length
- 0.32 m
- VPE width
- 0.19 m
System Specifications
- Colour of left LED
- Green/yellow
- LED
- Yes
- Mounting onto the PCB
- THT/THR solder connection
- Number of poles
- 10
- Number of solder pins per pole
- 1
- Outgoing elbow
- 180°
- Pitch in inches (P)
- 0.05 inch
- Pitch in mm (P)
- 1.27 mm
- Plugging cycles
- 750
- Product family
- OMNIMATE Data - RJ45 jacks transformer
- Protection degree
- IP20
- Shielding
- Yes
- Shielding material
- Brass
- Shield surface
- nickel-plated
- Shield tabs
- none
- Transmission rate
- 1000 Mbps
- Type of connection
- Socket connector
Temperatures
- Operating temperature, max.
- 85 °C
- Operating temperature, min.
- -40 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
