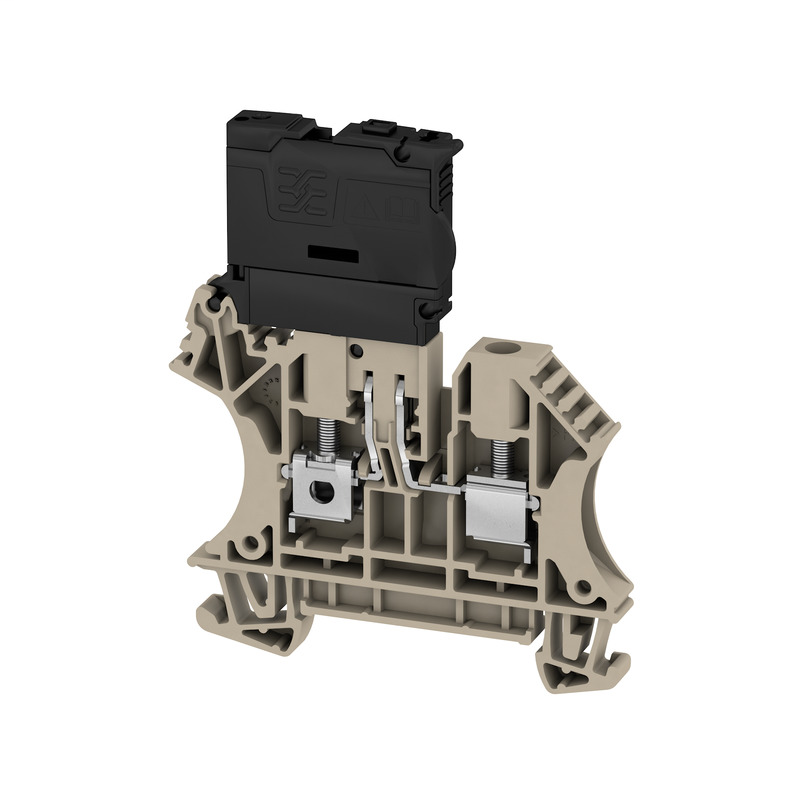

W-Series, Fuse terminal, Rated cross-section: 4 mm², Screw connectionWFS 4 30-70V DB
Weidmuller 2561980000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
2 Clampable Conductors (H05V/H07V) With Equal Cross-Section (Rated Connection)
- Wire connection cross section, finely stranded, two clampable wires, min.
- 0.5 mm²
- Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.
- 1.5 mm²
- Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.
- 0.5 mm²
- Wire cross-section, finely stranded, two clampable wires, max.
- 1.5 mm²
Additional Technical Data
- Open sides
- right
- Type of mounting
- Snap-on
Approvals
- Approvals
- CSA, cURus, KEMAKEUR
- ROHS
- Conform
- UL File Number Search
- E60693
Classifications
- eClass 10.0
- 27-14-11-16
- eClass 9.0
- 27-14-11-16
- eClass 9.1
- 27-14-11-16
- ETIM 6.0
- EC000899
- ETIM 7.0
- EC000899
Conductors For Clamping (Rated Connection)
- Blade size
- 0.6 x 3.5 mm
- Clamping range, max.
- 6 mm²
- Clamping range, min.
- 0.22 mm²
- Clamping screw
- M 3
- Connection cross-section, stranded, max.
- 6 mm²
- Connection cross-section, stranded, min.
- 1.5 mm²
- Connection direction
- on side
- Gauge to IEC 60947-1
- A4
- Number of connections
- 2
- Stripping length
- 13 mm
- Tightening torque, max.
- 0.6 Nm
- Tightening torque, min.
- 0.5 Nm
- Torque level with DMS electric screwdriver
- 2
- Type of connection
- Screw connection
- Wire connection cross section AWG, max.
- AWG 10
- Wire connection cross section AWG, min.
- AWG 26
- Wire connection cross section, finely stranded, max.
- 4 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
- 4 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 4 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 6 mm²
- Wire connection cross-section, solid core, min.
- 0.5 mm²
Csa Rating Data
- Certificate No. (CSA)
- 200039-1057876
- Current size B (CSA)
- 10 A
- Current size D (CSA)
- 10 A
- Voltage size B (CSA)
- 300 V
- Voltage size D (CSA)
- 300 V
- Wire cross section max. (CSA)
- 10 AWG
- Wire cross section min. (CSA)
- 22 AWG
Dimensions And Weights
- Depth
- 75 mm
- Depth (inches)
- 2.953 inch
- Depth including DIN rail
- 75.5 mm
- Height
- 62.5 mm
- Height (inches)
- 2.461 inch
- Net weight
- 17.686 g
- Width
- 6.1 mm
- Width (inches)
- 0.24 inch
Display Element
- Current
- 6.3 A
- Type of voltage for indicator
- AC/DC
Fuse Terminals
- Cartridge fuse
- G-Si. 5 x 20
- Current
- 6.3 A
- Display
- LED
- Fuse holder (cartridge holder)
- Pivoting
- Operating voltage, max.
- 70 V
- Type of voltage for indicator
- AC/DC
Material Data
- Colour
- dark beige
- Material
- Wemid
- UL 94 flammability rating
- V-0
Rating Data
- Current at maximum wires
- 6.3 A
- Pollution severity
- 3
- Power loss in accordance with IEC 60947-7-x
- 1.02 W
- Rated cross-section
- 4 mm²
- Rated current
- 6.3 A
- Rated impulse withstand voltage
- 6 kV
- Rated voltage
- 70 V
- Rated voltage to adjoining terminal
- 400 V
- Standards
- IEC 60947-7-3
- Volume resistance according to IEC 60947-7-x
- 1 mΩ
System Specifications
- End cover plate required
- Yes
- Levels cross-connected internally
- No
- N-function
- No
- Number of clamping points per level
- 2
- Number of levels
- 1
- Number of potentials
- 1
- Number of potentials per tier
- 1
- PE connection
- No
- PE function
- No
- PEN function
- No
- Rail
- TS 35
- Version
- Screw connection, Fuse isolator
Temperatures
- Continuous operating temp., max.
- 130 °C
- Continuous operating temp., min.
- -60 °C
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
Ul Rating Data
- Certificate No. (cURus)
- E60693
- Conductor size Factory wiring max. (cURus)
- 10 AWG
- Conductor size Factory wiring min. (cURus)
- 22 AWG
- Conductor size Field wiring max. (cURus)
- 10 AWG
- Conductor size Field wiring min. (cURus)
- 22 AWG
- Current size B (cURus)
- 10 A
- Current size D (cURus)
- 10 A
- Voltage size B (cURus)
- 300 V
- Voltage size D (cURus)
- 300 V
