Weidmuller 2549690000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

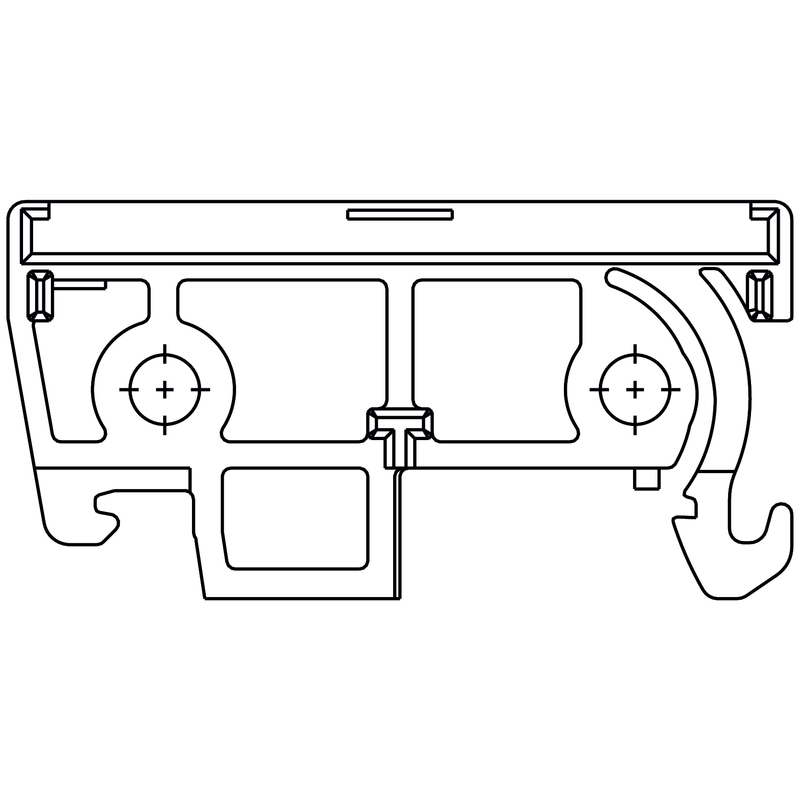

Electronics housings, RS 45 green, End plate, Width: 8 mmAP 45/LI GN
Weidmuller 2549690000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-18-27-92
- eClass 9.0
- 27-18-27-90
- eClass 9.1
- 27-18-27-90
- ETIM 6.0
- EC001031
- ETIM 7.0
- EC001031
- UNSPSC
- 30-21-18-27
Dimensions And Weights
- Height
- 22.9 mm
- Height (inches)
- 0.902 inch
- Length
- 45 mm
- Length (inches)
- 1.772 inch
- Net weight
- 2.35 g
- Width
- 8 mm
- Width (inches)
- 0.315 inch
Material Data
- Colour
- green
- Colour chart (similar)
- RAL 6032
- Comparative Tracking Index (CTI)
- ≥ 600
- Insulating material
- PA 66
- Max. relative humidity during storage
- 80 %
- Operating temperature, max.
- 100 °C
- Operating temperature, min.
- -50 °C
- Storage temperature, max.
- 55 °C
- Storage temperature, min.
- -25 °C
- Temperature range, installation, max.
- 100 °C
- Temperature range, installation, min.
- -25 °C
- UL 94 flammability rating
- V-2
Notes
- Descriptive text technical data
- 3 heights are available for the cover profile and the end plates:TS mounting: TS 32 = 45 mm, TS35x7.5 = 40.5 mmDirect mounting: 24 mmDimensions of the PCB:Thickness: 1.6 (±0.2) mm, width: 42 (+0.5) mmDimension of the RS section = length of the printed circuit board – 4.5 mmDimension of ADP section = PCB length - 1 mmExample:PCB length 160 mm, RS section = 155.5 mm, ADP section = 159 mm
System Characteristics
- Contact to terminal rail
- No
- Cross-connection
- No
- Encapsulation option
- No
- Protection degree
- IP20
- Version
- End plate
