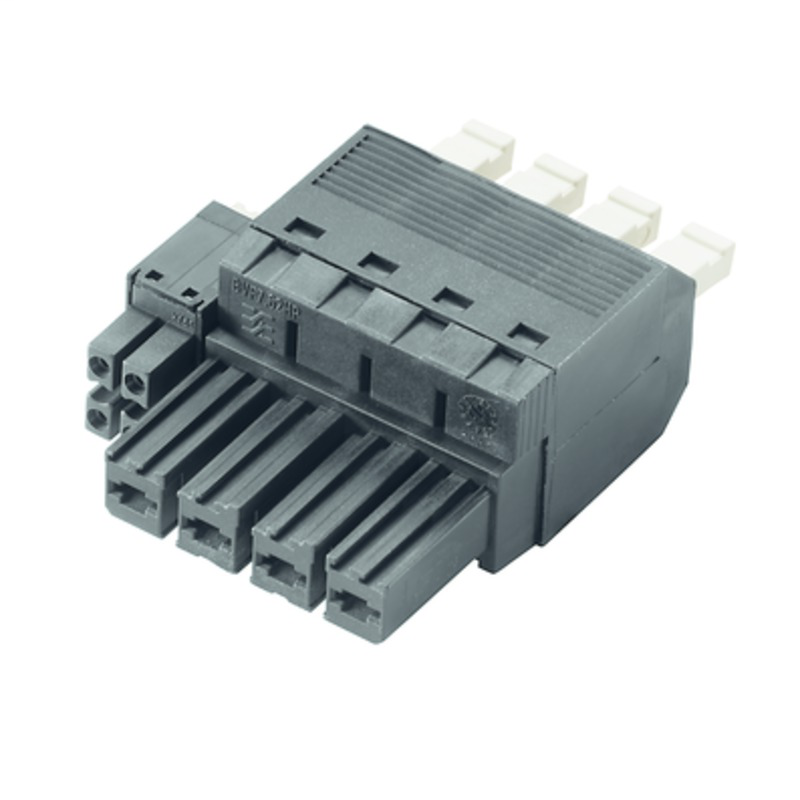

Weidmuller 2549430000

Approvals

• ROHS
  • Conform

Classifications

• eClass 10.0
  • 27-44-03-09
• eClass 9.0
  • 27-44-03-09
• eClass 9.1
  • 27-44-03-09
• ETIM 6.0
  • EC002638
• ETIM 7.0
  • EC002638

Conductors Suitable For Connection

• Clamping range, max.
  • 6 mm²
• Clamping range, min.
  • 0.5 mm²
• Flexible, max. H05(07) V-K
  • 6 mm²
• Flexible, min. H05(07) V-K
  • 0.5 mm²
• Max. clamping range
  • 6 mm²
• Solid, max. H05(07) V-U
  • 6 mm²
• Solid, min. H05(07) V-U
  • 0.5 mm²
• w. plastic collar ferrule, DIN 46228 pt 4, max.
  • 6 mm²
• w. plastic collar ferrule, DIN 46228 pt 4, min.
  • 0.5 mm²
• w. wire end ferrule, DIN 46228 pt 1, max.
  • 6 mm²
• w. wire end ferrule, DIN 46228 pt 1, min.
  • 0.5 mm²

Conductors That Can Be Connected - Hybrid

• Clamping range, rated connection (Power)
  • 0.5...10 mm²
• Clamping range, rated connection (Signal)
  • 0.2...1.5 mm²
• Connector cross-section AWG (Signal)
  • AWG 26...AWG 16
• Connector cross-section (Power)
  • AWG 24...AWG 8
• flexible, H05(07) V-K (Power)
  • 0.5...6 mm²
• flexible, H05(07) V-K (Signal)
  • 0.14...1.5 mm²
• solid, H05(07) V-U (Power)
  • 0.5...10 mm²
• solid, H05(07) V-U (Signal)
  • 0.14...1.5 mm²
• with wire-end ferrule according to DIN 46 228/1 (Power)
  • 0.5...6 mm²
• with wire-end ferrule according to DIN 46 228/1 (Signal)
  • 0.25...1.5 mm²
• with wire-end ferrule with collar, DIN 46 228/4 (Signal)
  • 0.25...1.5 mm²
• with wire-end ferrule with collar (Power)
  • 0.5...6 mm²

Dimensions And Weights

• Net weight
  • 26.691 g

Material Data

• Colour
  • black
• Colour chart (similar)
  • RAL 9011
• Colour of operational elements
  • white
• Comparative Tracking Index (CTI)
  • ≥ 500
• Contact material
  • Copper alloy
• Contact surface
  • tinned
• GWFI
  • 960 °C
• Insulating material
  • PA GF
• Insulating material group
  • II
• Insulation strength
  • ≥ 108 Ω
• Layer structure of plug contact
  • 6-8 µm Sn glossy
• Material of operational elements
  • PPA GF
• Max. relative humidity during storage
  • 80 %
• Operating temperature, max.
  • 125 °C
• Operating temperature, min.
  • -50 °C
• Storage temperature, max.
  • 55 °C
• Storage temperature, min.
  • -25 °C
• Temperature range, installation, max.
  • 125 °C
• Temperature range, installation, min.
  • -25 °C
• UL 94 flammability rating
  • V-0

Notes

• IPC conformity
  • Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
• Notes
  • Technical specifications refer to the power contacts Technical data of signal contacts: 50V / 5A, stripping length 8mm Additional colours on request Rated current related to rated cross-section & min. No. of poles. Wire end ferrule with plastic collar to DIN 46228/4 Wire end ferrule without plastic collar to DIN 46228/1 Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. Additional pole combinations on request

Packing

• Packaging
  • Box
• VPE height
  • 0
• VPE length
  • 0
• VPE width
  • 0

Rated Data Acc. To Iec

• Clearance, min.
  • 10.4 mm
• Creepage distance, min.
  • 12.7 mm
• Rated current, max. number of poles (Tu=20°C)
  • 38 A
• Rated current, max. number of poles (Tu=40°C)
  • 34 A
• Rated current, min. number of poles (Tu=20°C)
  • 38 A
• Rated current, min. number of poles (Tu=40°C)
  • 34 A
• Rated impulse voltage for surge voltage class/ contamination degree III/3
  • 8 kV
• Rated impulse voltage for surge voltage class/ pollution degree II/2
  • 6 kV
• Rated impulse voltage for surge voltage class/ pollution degree III/2
  • 8 kV
• Rated voltage for surge voltage class / pollution degree II/2
  • 1,000 V
• Rated voltage for surge voltage class / pollution degree III/2
  • 1,000 V
• Rated voltage for surge voltage class / pollution degree III/3
  • 800 V
• Short-time withstand current resistance
  • 3 x 1s with 420 A
• tested acc. to standard
  • IEC 60664-1, IEC 61984

Rated Data Acc. To Ul 1059

• Rated current (Use group B / UL 1059)
  • 35 A
• Rated current (Use group C / UL 1059)
  • 35 A
• Rated current (Use group D / UL 1059)
  • 5 A
• Rated voltage (Use group B / UL 1059)
  • 600 V
• Rated voltage (Use group C / UL 1059)
  • 600 V
• Rated voltage (Use group D / UL 1059)
  • 600 V
• Wire cross-section, AWG, max.
  • AWG 8
• Wire cross-section, AWG, min.
  • AWG 24

System Parameters

• Can be coded
  • Yes
• Conductor outlet direction
  • 180°
• L1 in inches
  • 1.2 inch
• L1 in mm
  • 30.48 mm
• Number of poles
  • 4
• Pin series quantity
  • 1
• Pitch in inches (P)
  • 0.3 inch
• Pitch in mm (P)
  • 7.62 mm
• Plugging cycles
  • 25
• Product family
  • OMNIMATE Power - series BV/SV 7.62HP
• Rated cross-section
  • 6 mm²
• Screwdriver blade
  • 0.6 x 3.5
• Stripping length
  • 12 mm
• Touch-safe protection acc. to DIN VDE 0470
  • IP 20
• Touch-safe protection acc. to DIN VDE 57 106
  • Safe from finger touch
• Type of connection
  • Field connection
• Volume resistance
  • 4.50 mΩ
• Wire connection method
  • PUSH IN

Technical Data - Hybrid

• Connector cross-section (Signal)
  • AWG 26...AWG 16
• Contact material (Signal)
  • CuMg
• Contact surface (Signal)
  • tinned
• L2 in inch
  • 0.3 inch
• L2 in mm
  • 7.62 mm
• Number of poles (Signal)
  • 6
• Number of rows (Signal)
  • 2
• Pitch in inches (Signal)
  • 0.15 inch
• Pitch in mm (Signal)
  • 3.81 mm
• Rated current (Use group B / CSA) (Signal)
  • 9 A
• Rated current (Use group B / UL 1059) (Signal)
  • 5 A
• Rated current (Use group C / CSA) (Signal)
  • 9 A
• Rated current (Use group C / UL 1059) (Signal)
  • 5 A
• Rated current (Use group D / CSA) (Signal)
  • 9 A
• Rated current (Use group D / UL 1059) (Signal)
  • 5 A
• Rated impulse voltage for overvoltage class/pollution severity level II/2 (Signal)
  • 4 kV
• Rated impulse voltage for overvoltage class/pollution severity level III/2 (Signal)
  • 4 kV
• Rated impulse voltage for overvoltage class/pollution severity level III/3 (Signal)
  • 4 kV
• Rated voltage for overvoltage class/pollution severity level II/2 (Signal)
  • 400 V
• Rated voltage for overvoltage class/pollution severity level III/2 (Signal)
  • 320 V
• Rated voltage for overvoltage class/pollution severity level III/3 (Signal)
  • 200 V
• Rated voltage (Use group B / CSA) (Signal)
  • 300 V
• Rated voltage (Use group B / UL 1059] (Signal)
  • 300 V
• Rated voltage (Use group C / CSA) (Signal)
  • 50 V
• Rated voltage (Use group C / UL 1059] (Signal)
  • 50 V
• Rated voltage (Use group D / CSA) (Signal)
  • 300 V
• Rated voltage (Use group D / UL 1059] (Signal)
  • 300 V
• Short-time withstand current resistance (Signal)
  • 3 x 1s with 80 A
• stripping length (Signal)
  • 8 mm
• Wire connection cross-section AWG (Signal)
  • AWG 26...AWG 16
