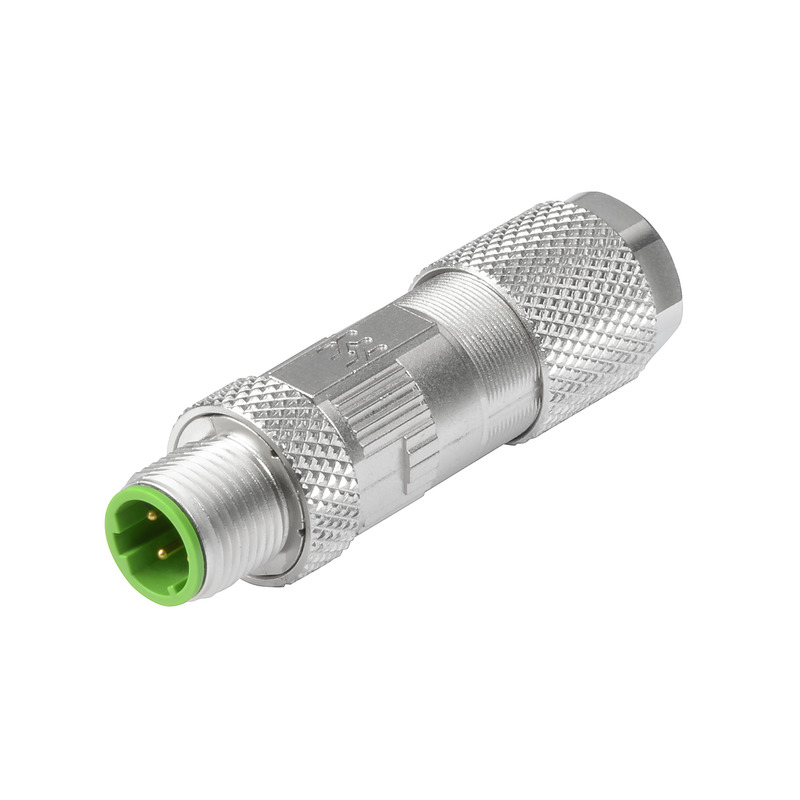

Weidmuller 2544780000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Weidmuller 2544780000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-44-01-02
- eClass 9.0
- 27-44-01-02
- eClass 9.1
- 27-44-01-03
- ETIM 6.0
- EC002062
- ETIM 7.0
- EC002635
Dimensions And Weights
- Net weight
- 30 g
Electrical Properties
- Insulation strength
- 100 MΩ
- Rated voltage
- 60 V
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Info
- Category
- Cat.5 (ISO/IEC 11801)
- Connection thread
- M12
- Contact surface
- Ni/Au
- Housing main material
- Zinc diecast
- Number of poles
- 4
- Plugging cycles
- ≥ 100
- Protection degree
- IP67
Standards
- Connector standard
- IEC 61076-2-101
Technical Data Customisable Plug-In Connectors
- Cable diameter, max.
- 9.7 mm
- Cable diameter, min.
- 5 mm
- Category
- Cat.5 (ISO/IEC 11801)
- Coding
- D
- Connection cross-section, max.
- 0.34 mm²
- Connection cross-section, min.
- 0.14 mm²
- Contact surface
- Ni/Au
- Housing main material
- Zinc diecast
- Insulation strength
- 100 MΩ
- Number of poles
- 4
- Plugging cycles
- ≥ 100
- Pollution severity
- 3
- Protection degree
- IP67
- Rated current
- 1 A
- Rated voltage
- 60 V
- Shield connection
- Yes
- Temperature range of housing
- -40 … +85 ° C
- Type of connection
- Insulation displacement connection
Temperatures
- Operating temperature, max.
- 85 °C
- Operating temperature, min.
- -40 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
