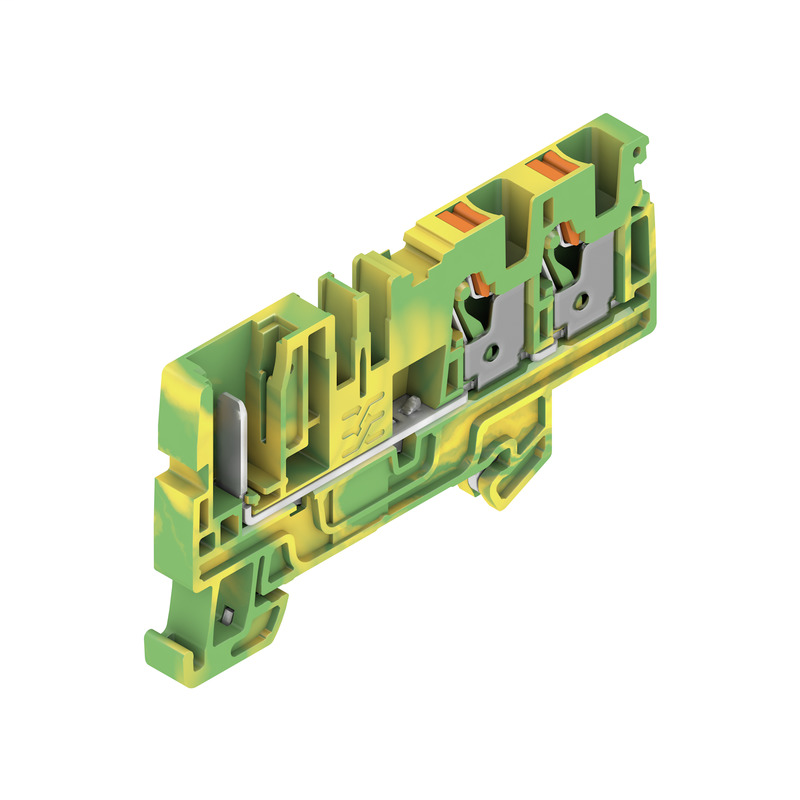

Weidmuller 2540170000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
PE terminal, PUSH IN, 4 mm², 800 V, Green/yellowAPGTB 4 PE 3C/1
Weidmuller 2540170000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Installation advice
- Rail
- Open sides
- right
- Snap-on
- No
- Type of fixing
- Snap-on
- Type of mounting
- TS 35
- With snap-in pegs
- No
Approvals
- Approvals
- CE, cURus
- UL File Number Search
- E60693
Classifications
- eClass 10.0
- 27-14-11-41
- eClass 9.0
- 27-14-11-41
- eClass 9.1
- 27-14-11-41
- ETIM 6.0
- EC000901
- ETIM 7.0
- EC000901
Conductors For Clamping (Rated Connection)
- Blade size
- 0.6 x 3.5 mm
- Clamping range, max.
- 4 mm²
- Clamping range, min.
- 0.14 mm²
- Connection cross-section, stranded, max.
- 4 mm²
- Connection cross-section, stranded, min.
- 0.5 mm²
- Connection direction
- top
- Gauge to IEC 60947-1
- A4
- Number of connections
- 2
- Stripping length
- 12 mm
- Twin wire-end ferrules, max.
- 1.5 mm²
- Twin wire-end ferrules, min.
- 0.5 mm²
- Type of connection
- PUSH IN
- Type of connection 2
- Plug-in connection
- Wire connection cross section AWG, max.
- AWG 12
- Wire connection cross section AWG, min.
- AWG 26
- Wire connection cross section, finely stranded, max.
- 4 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
- 4 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 4 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 4 mm²
- Wire connection cross-section, solid core, min.
- 0.5 mm²
Dimensions And Weights
- Depth
- 39.5 mm
- Depth (inches)
- 1.555 inch
- Depth including DIN rail
- 40.5 mm
- Height
- 72 mm
- Height (inches)
- 2.835 inch
- Net weight
- 14.273 g
- Width
- 6.1 mm
- Width (inches)
- 0.24 inch
Material Data
- Colour
- Green/yellow
- Colour of operational elements
- orange
- Material
- Wemid
- UL 94 flammability rating
- V-0
Pe Rating Data
- PEN function
- No
- Rated short-time current
- 480 A (4 mm²)
Rating Data
- Pollution severity
- 3
- Power loss in accordance with IEC 60947-7-x
- 1.02 W
- Rated cross-section
- 4 mm²
- Rated impulse withstand voltage to adjacent terminal
- 8 kV
- Rated voltage
- 800 V
- Rated voltage to adjoining terminal
- 800 V
- Standards
- IEC 60947-7-2, IEC 61984
- Surge voltage category
- III
- Volume resistance according to IEC 60947-7-x
- 1 mΩ
System Specifications
- End cover plate required
- Yes
- Levels cross-connected internally
- No
- N-function
- No
- Number of clamping points per level
- 3
- Number of levels
- 1
- Number of potentials
- 1
- Number of potentials per tier
- 1
- PE connection
- Yes
- PE function
- Yes
- PEN function
- No
- Rail
- TS 35
Temperatures
- Continuous operating temp., max.
- 130 °C
- Continuous operating temp., min.
- -60 °C
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
Ul Rating Data
- Certificate No. (cURus)
- E60693
- Conductor size Factory wiring max. (cURus)
- 10 AWG
- Conductor size Factory wiring min. (cURus)
- 26 AWG
- Conductor size Field wiring max. (cURus)
- 10 AWG
- Conductor size Field wiring min. (cURus)
- 26 AWG
- Voltage size B (cURus)
- 600 V
- Voltage size C (cURus)
- 600 V
- Voltage size D (cURus)
- 600 V
