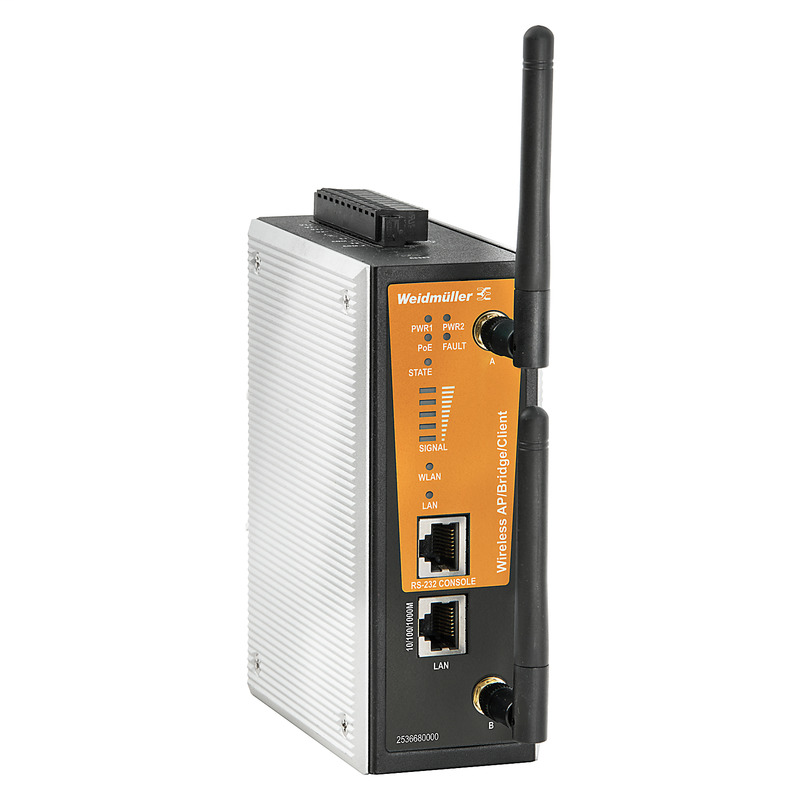

Weidmuller 2536700000

Approvals

• Approvals
  • CULUSEX, DEMKOATEX, KOREANCERT
• ROHS
  • Conform

Classifications

• eClass 10.0
  • 19-17-05-01
• eClass 9.0
  • 19-17-02-01
• eClass 9.1
  • 19-17-02-06
• ETIM 6.0
  • EC000816
• ETIM 7.0
  • EC000816

Dimensions And Weights

• Depth
  • 105 mm
• Depth (inches)
  • 4.134 inch
• Height
  • 135 mm
• Height (inches)
  • 5.315 inch
• Net weight
  • 880 g
• Width
  • 52.7 mm
• Width (inches)
  • 2.075 inch

Emc Conformity And Approvals

• EMC standards
  • EN 61000-6-2, EN 61000-6-4, CISPR 22, FCC Part 15B Class B, IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 Ghz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8
• Explosive risk zone
  • UL/cUL, Class I, Division 2, Groups A, B, C and D, ATEX Zone 2 Ex nA IIC T4 Gc
• Security
  • EN60950-1, UL60950-1
• Shock
  • according to IEC 60068-2-27
• Vibration
  • according to IEC 60068-2-6
• Wireless
  • EN 301 489-1/17, EN 300 328, EN 301893, TELEC, FCC ID SLE-WAPN008

Environmental Conditions

• Humidity
  • 5 to 95 % (non-condensing)
• Operating temperature, max.
  • 60 °C
• Operating temperature, min.
  • -25 °C
• Storage temperature, max.
  • 85 °C
• Storage temperature, min.
  • -40 °C

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

Guarantee

• Time interval
  • 5 years

Interfaces

• Alarm contact
  • 1 relay output with a current capacity of 1 A at 24 V DC
• Connector for external antennas
  • RP-SMA (socket), 500 V insulation
• Console port interface
  • RS-232 (RJ45 connector)
• Digital inputs
  • 2 inputs with the same ground, isolated+13 To +30 V for logic "1"-30 To +3 V for logic "0"Max. input current: 8 mA
• LED indicator
  • PWR1, PWR2, PoE, FAULT, STATE, SIGNAL, WLAN, LAN
• Reset button
  • Restoration of factory settings
• RJ45 ports
  • 10/100/1000BaseT(X), auto negotiation, Full-/half-duplex mode, Auto MDI/MDI-X port
• Standard antenna
  • 2 dBi omni-directional dual band antenna, RP-SMA (male plug)

Mtbf

• Database
  • Telcordia SR332
• MTBF
  • 570,854 hrs

Power Supply

• Connection type
  • 1 removable 10-pole terminal block, 500 V insulation
• Current consumption
  • 0.6 A at 12 V DC, 0.15 A at 48 V DC
• Power consumption
  • 7.2 W
• Reverse polarity protection
  • Available
• Supply voltage, max.
  • 48 V DC
• Supply voltage, min.
  • 12 V DC
• Voltage supply
  • 24 V DC, 2 redundant inputs, or 48 V DC Power-over-Ethernet (IEEE 802.3af)

Technical Data

• Housing main material
  • metal
• Protection degree
  • IP30
• Type of mounting
  • DIN rail, Panel (with optional mounting kit)

Technology

• Standard
  • IEEE 802.11 a/b/g/n for Wireless LAN, IEEE 802.11i for Wireless Security, IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af for Power-over-Ethernet, IEEE 802.1D for the Spanning Tree protocol, IEEE 802.1w for Rapid STP, IEEE 802.1Q for VLAN tagging
• Supported protocols
  • Proxy ARP, DNS, HTTP, HTTPS, IP, ICMP, SNTP, TCP, UDP, Radius, SNMP, DHCP, VLAN, STP/RSTP, LLDP

Wlan Interface

• Data security
  • SSID broadcast enable/disable, Firewall for MAC/IP/protocol/port-based filtering, 64-bit and 128-bit WEP encryption, WPA/WPA2 Personal and Enterprise (IEEE 802.1X/RADIUS, TKIP and AES)
• Operating channels (mid-band)
  • US: 2.412 to 2.462 GHz (11 channels); 5.180 to 5.240 GHz (4 channels); 5.260 to 5.320 GHz (4 channels); 5.500 to 5.700 GHz (8 channels, apart from 5.600 to 5.640 GHz); 5.745 to 5.825 GHz (5 channels)
• Spreading code process and modulation (typical)
  • DSSS with DBPSK, DQPSK, CCK, OFDM with BPSK, QPSK, 16QAM, 64QAM, 802.11b: CCK at 11/5.5 MBit/s, DQPSK at 2 MBit/s, DBPSK at 1 MBit/s, 802.11a / g: 64QAM at 54/48 MBit/s, 16QAM at 36/24 MBit/s, QPSK at 18/12 MBit/s, BPSK at 9/6 MBit/s, 802.11n: 64QAM at 300 MBit/s to BPSK at 6.5 MBit/s
• Transmission rate
  • 802.11b: 1, 2, 5,5, 11 MBit/s, 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 MBit/s, 802.11n: 6.5 to 300 MBit/s
• Transmit power
  • 802.11b: type 26±1.5 dBm at 1 MBit/s, type 26±1.5 dBm at 2 MBit/s, type 26±1.5 dBm at 5,5 MBit/s, type 25±1.5 dBm at 11 MBit/s, 802.11g: type 23±1.5 dBm to 6 to 24 MBit/s, type 23±1.5 dBm at 36 MBit/s, type 19±1.5 dBm at 48 MBit/s, type 18±1.5 dBm at 54 MBit/s, 802.11a: type 23±1.5 dBm at 6 bis 24 MBit/s, type 21±1.5 dBm at 36 MBit/s, type 20±1.5 dBm at 48 MBit/s, type 18±1.5 dBm at 54 MBit/s, 802.11n (2.4 GHz): type 23±1.5 dBm at MCS0/8 20 MHz, type 18±1.5 dBm at MCS7/15 20 MHz, type 23±1.5 dBm at MCS0/8 40 MHz, type 17±1.5 dBm at MCS7/15 40 MHz, 802.11n (5 GHz): type 23±1.5 dBm at MCS0/8 20 MHz, type 18±1.5 dBm at MCS7/15 20 MHz, type 23±1.5 dBm at MCS0/8 40 MHz, type 17±1.5 dBm at MCS7/15 40 MHz
• Wireless LAN receive sensitivity
  • 802.11b: -93 dBm at 1 MBit/s, -93 dBm at 2 MBit/s, -93 dBm at 5.5 MBit/s, -88 dBm at 11 MBit/s, 802.11g: -88 dBm at 6 MBit/s, -86 dBm at 9 MBit/s, -85 dBm at 12 MBit/s, -85 dBm at 18 MBit/s, -85 dBm at 24 MBit/s, -82 dBm at 36 MBit/s, -78 dBm at 48 MBit/s, -74 dBm at 54 MBit/s, 802.11a: -90 dBm at 6 MBit/s, -88 dBm at 9 MBit/s, -88 dBm at 12 MBit/s, -85 dBm at 18 MBit/s, -81 dBm at 24 MBit/s, -78 dBm at 36 MBit/s, -74 dBm at 48 MBit/s, -72 dBm at 54 MBit/s, 802.11n (2.4 GHz): -70 dBm at MCS7 20 MHz, -69 dBm at MCS15 20 MHz, -67 dBm at MCS7 40 MHz, -67 dBm at MCS15 40 MHz, 802.11n (5 GHz): -69 dBm at MCS7 20 MHz, -71 dBm at MCS15 20 MHz, -63 dBm at MCS7 40 MHz, -68 dBm at MCS15 40 MHz
