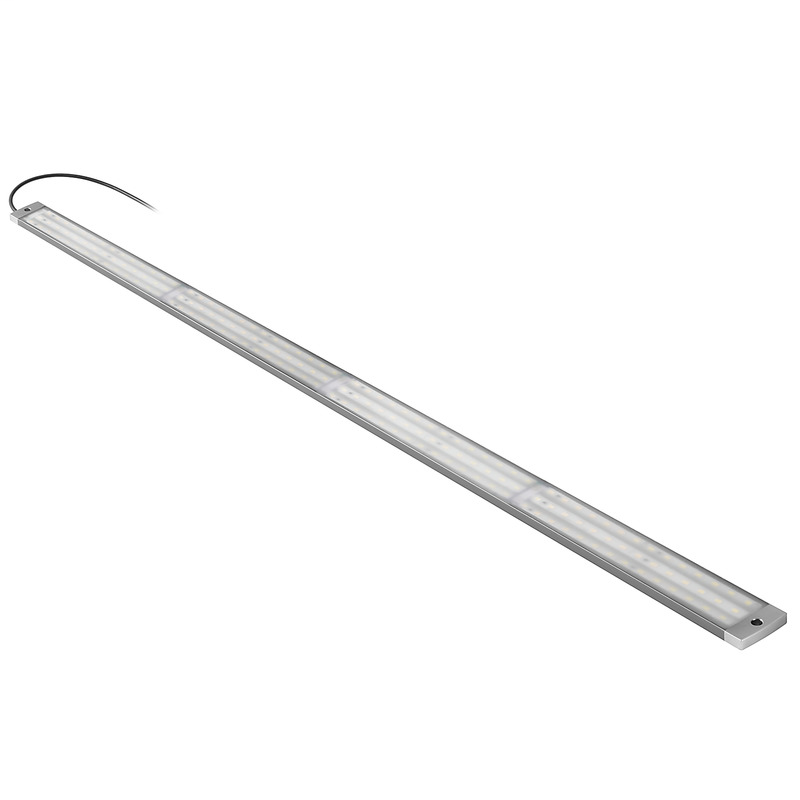

Weidmuller 2535920000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
WIL-860-W-XXXX-5.0U-S
Weidmuller 2535920000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, CULUS
- ROHS
- Conform
- UL File Number Search
- E354496
Cable Technical Specifications
- Cable length
- 5 m
- Cable Material
- PUR
- Sheathing colour
- black
Classifications
- eClass 10.0
- 27-11-06-40
- eClass 9.0
- 27-11-06-40
- eClass 9.1
- 27-11-06-40
- ETIM 6.0
- EC001959
- ETIM 7.0
- EC001959
Connection Data
- Connection thread
- without
- Version
- Cable end open
- Wiring
- Brown +, Blue -
Dimensions And Weights
- Depth
- 40 mm
- Depth (inches)
- 1.575 inch
- Height
- 8 mm
- Height (inches)
- 0.315 inch
- Net weight
- 650 g
- Width
- 860 mm
- Width (inches)
- 33.858 inch
Electric Data
- Dimmable
- Yes
- Power
- 32.5 W
- Rated current
- 1,10 A
- Rated voltage (text)
- 24 V DC
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Technical Data
- Drill hole spacing
- 845 mm
- Emitting angle
- 40 °
- Illumination level
- 844 lux
- Impact resistance
- IK05
- Light colour (CCT)
- 6500K, White
- Light current
- 2,473 lm
- Luminosity
- 3,470 cd
- Number of LEDs
- 168
- Operating life
- 60.000 h
- Protection degree
- IP67
- Type of mounting
- Screw mounting
Material Data
- Encapsulation compound
- PUR V0
- Housing main material
- hard anodised aluminium
- Material of end caps
- Diecast zinc, nickel-plated
Standards
- Certificate no. (cULus)
- E354496
Temperatures
- Operating temperature
- -20 - 60°C
- Operating temperature, max.
- 60 °C
- Operating temperature, min.
- -20 °C
